Weld Screw With Metric Thread

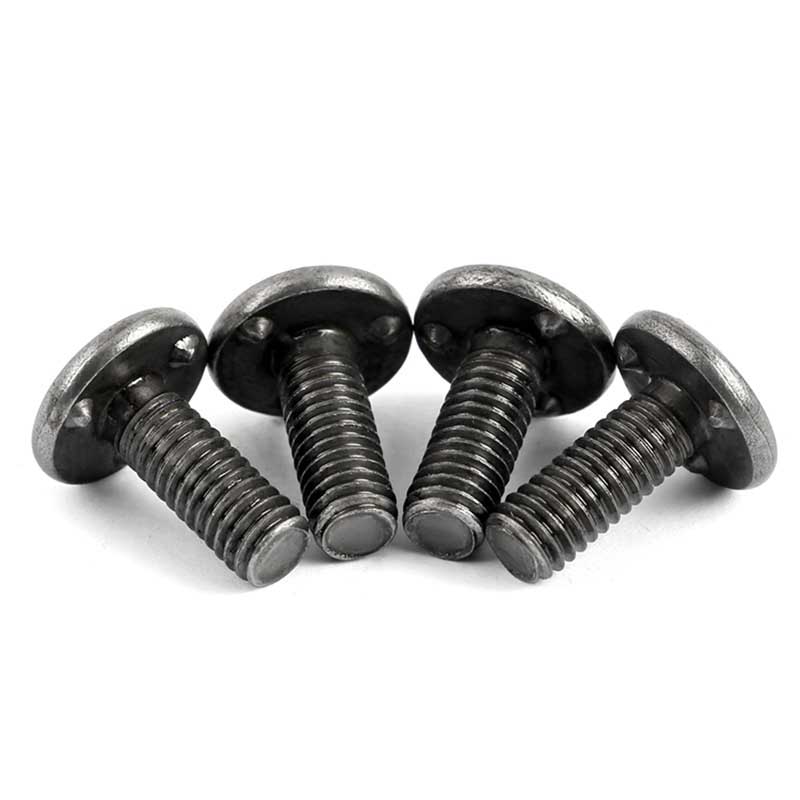

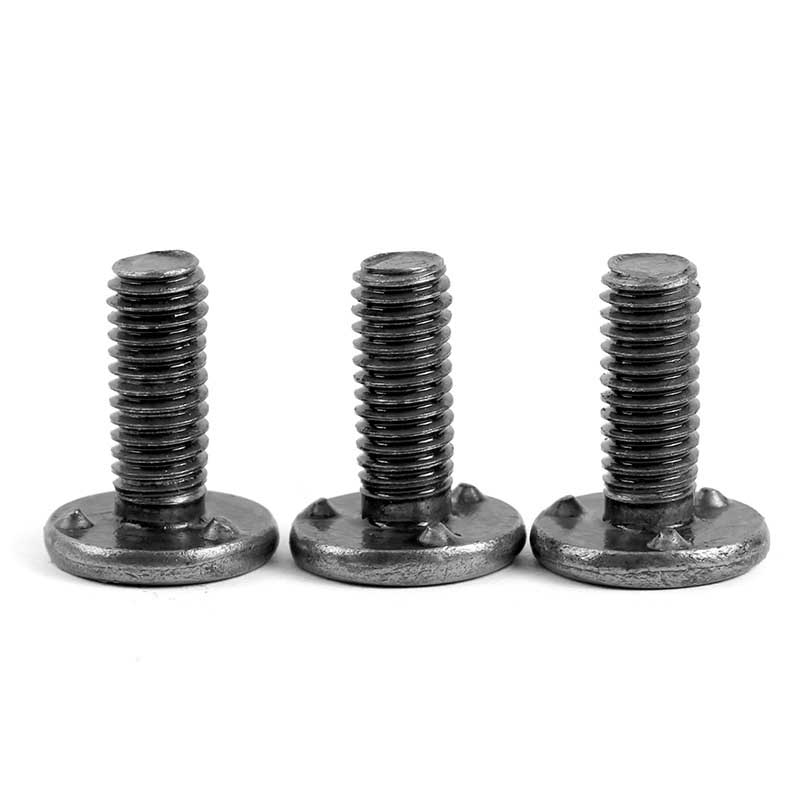

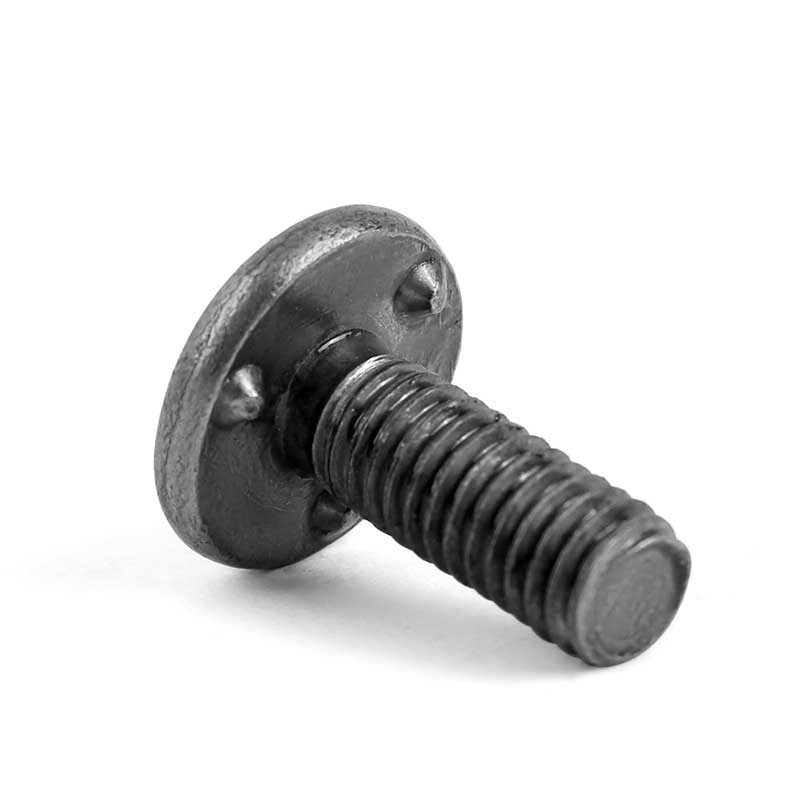

Weld screw with metric thread is used for welding to the metal surface, and then metric threads are used to connect other components. Xiaoguo® Company has a sufficient inventory of goods in stock. They are suitable for metal manufacturing, automotive panels or industrial frames.

Model:DIN 34817-2001

Send Inquiry

Product Description

Mon	M5	M6	M8	M10	M12	M14
P	0.8	1	1.25	1.5	1.5	1.5
a max	2.4	2.8	3.7	4.4	4.6	4.6
dk max	10	12	16	20	24	28
dk min	9.64	11.57	15.57	19.48	23.48	27.48
d1 min	7.85	9.75	13.25	17.15	21.15	25.20
d1 max	8.21	10.11	13.68	17.58	21.67	25.72
h max	0.8	0.8	1.2	1.4	1.6	1.6
h min	0.7	0.7	1.1	1.3	1.5	1.5
k max	2.2	2.7	3.2	4.2	5	5.8
k min	1.8	2.3	2.8	3.8	4.6	5.4
r min	0.1	0.15	0.15	0.15	0.15	0.2
e max	1.7	1.7	2.2	2.2	2.2	2.7
e min	1.3	1.3	1.8	1.8	1.8	2.3
b1 max	3.9	4.4	5.9	7.9	9.4	11.5
b1 min	3.1	3.6	5.1	7.1	8.6	10.5
da max	5.3	6.4	8.4	10.5	13	15

Weld screw with metric thread is fixed to the workpiece by welding. This type of screw comes in both head and non-head styles. According to the thread, it can be further classified into external thread welded screws and internal thread welded screws. The specifications are generally from M5 to M14.

Weld screw with metric thread parameter

Can be used in

Weld screws with metric threads are used to repair exhaust brackets. If the bolt holes of the exhaust bracket are worn, they can be repaired by using them. Clean the spot weld points on the frame, install the screws, and perform spot welding through the holes on the washers. Tighten the bracket with bolts. It only takes 3 minutes and there is no need to redrill or tap. It can withstand road vibrations without loosening.

Weld screw with metric thread is used to upgrade conveyor brackets. If you need to add sensors to the existing conveyor, use them to quickly install the brackets. Weld the M8 screws to the required frame guide rails. There is no need to drill holes in key structures. The sensor bracket is directly fixed to the new thread with bolts. It saves the time required for rewiring during the renovation and installation.

The weld screws are used for installing hydraulic piping. If it is necessary to fix the hydraulic hose clamp on the equipment, using them can prevent shaking. Weld M6 screws along the frame every 18 inches. The fixture bracket is directly fixed to the screw with bolts. They can withstand continuous vibration better than sheet metal screws. Prevent the hose from wearing out due to friction.

Product Features

The feature of weld screw with metric thread lies in the use of welding fixation method. Compared with ordinary mechanical connection, welding can make the screws and the base material form a tighter bond, almost integrated. The design of metric threads can be conveniently matched with nuts or components with internal threads, facilitating the installation of other parts in the future. Moreover, the dimensional accuracy of the threads complies with metric standards, making it highly versatile.
