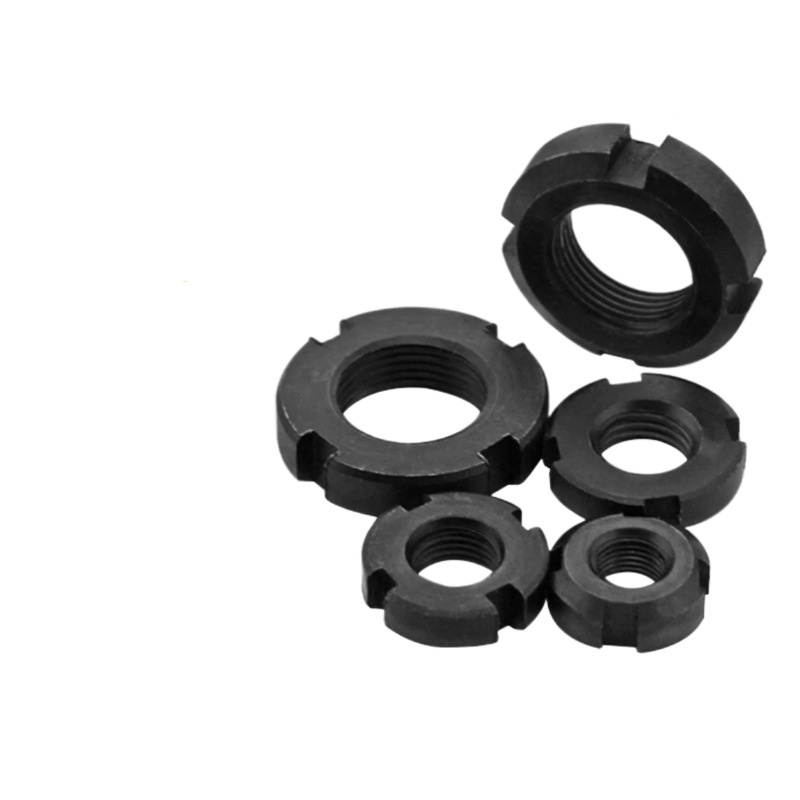

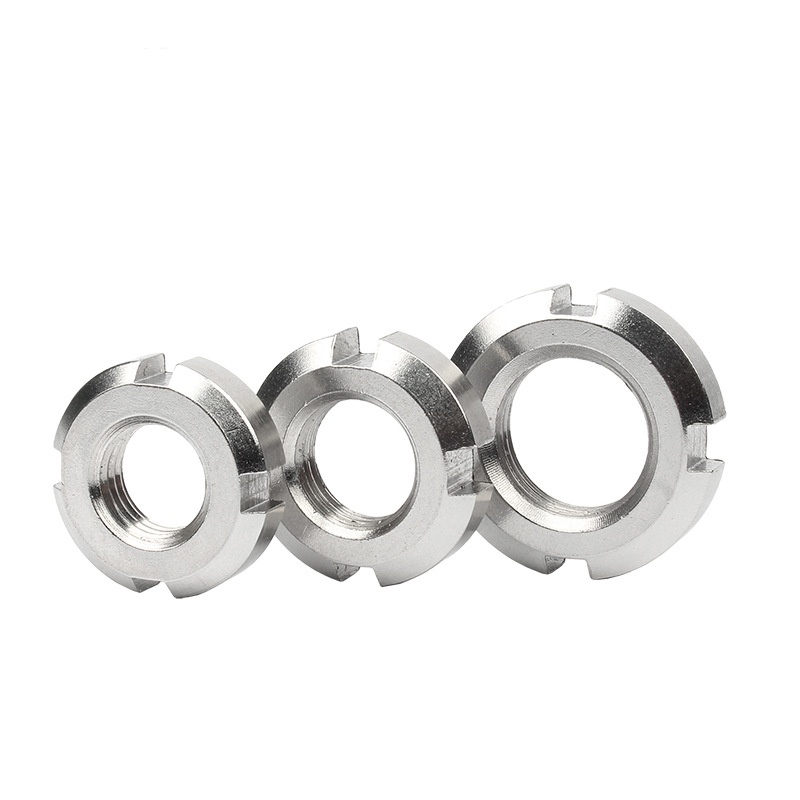

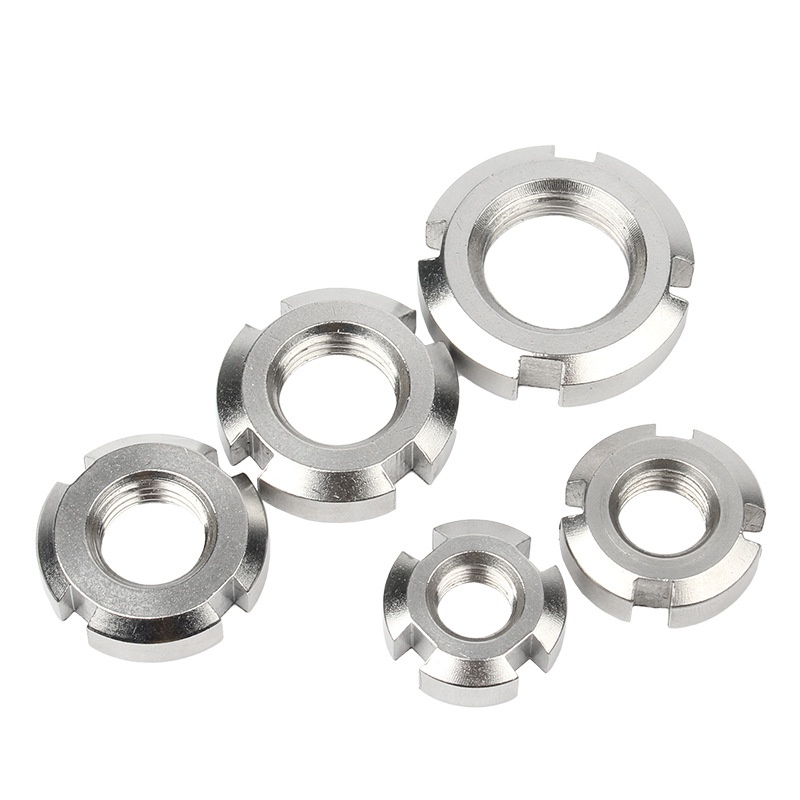

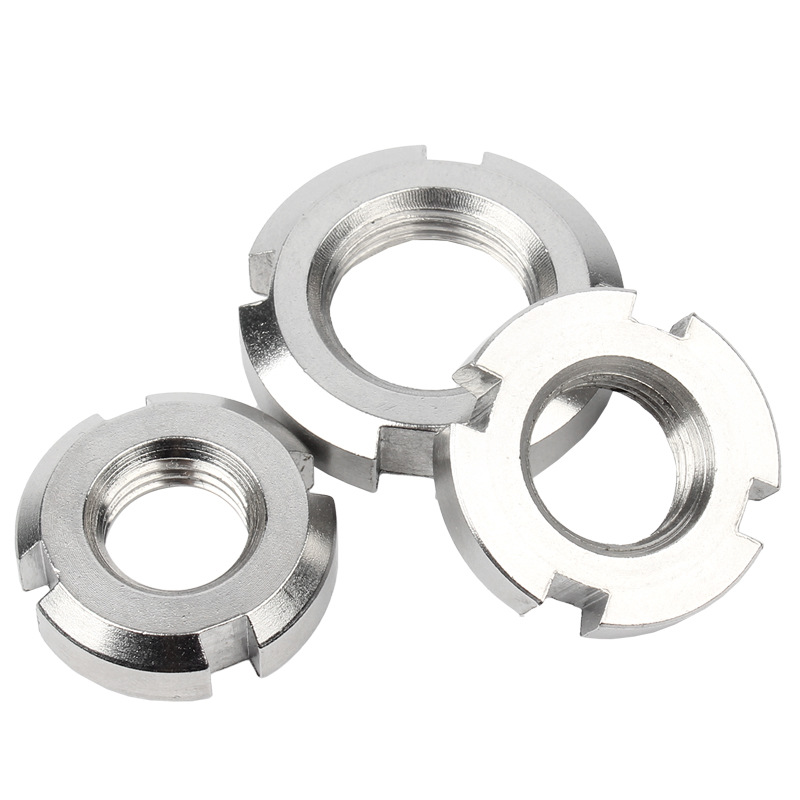

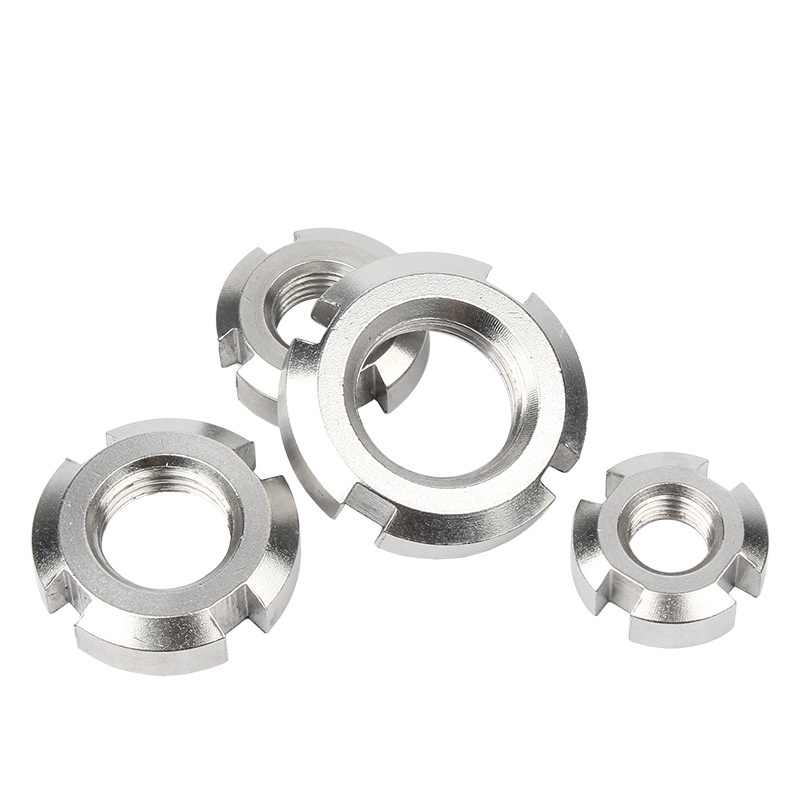

Vibration Proof Slotted Locking Round Nut

Vibration Proof Slotted Locking Round Nut is a product where Xiaoguo®'s factory utilizes advanced cold forging technology, maintaining excellent dimensional accuracy and material strength in its products. The primary function of this nut is to securely lock onto a threaded component, typically in conjunction with a cotter pin, to prevent rotational loosening.

Send Inquiry

Product Description

Vibration Proof Slotted Locking Round Nut are widely used in the fields of robotics and automation. Their stable locking function ensures the accuracy of joints and screw rod components. With their compact and circular shape, they are suitable for narrow spaces. We offer competitive prices to original equipment manufacturers in the technology industry and provide tiered discounts for annual contracts. This nut has various coatings available, such as nickel coating (if a specific appearance is required). We guarantee fast shipping from local warehouses to reduce production downtime.

The nuts are packaged in anti-static, separated packaging boxes to prevent damage. Each nut undergoes checks for thread accuracy and locking force.

Excellent corrosion resistance and low price

In marine and offshore working environments, the Vibration Proof Slotted Locking Round Nut must be able to remain stable in harsh, high-salt environments - thus they are highly suitable for use in drilling platforms and deck machinery. Most products are made of 316 stainless steel or are treated with deep galvanizing technology to achieve effective corrosion protection and extend product service life.

Our prices are designed to be competitive for marine contractors, and discounts are offered based on specific projects. The stainless steel versions usually have a dark silver surface treatment. We offer ocean freight services at competitive prices. Our packaging is specially configured with VCI vapor corrosion inhibitor paper and waterproof bags to provide double protection against potential damage during transportation. This ensures that the goods arrive in perfect condition.

Comply with international standards

Our Vibration-Proof Slotted locking round nut production complies with major international standards including DIN 935, ISO 7718, and ASTM specifications. This ensures that every Vibration Proof Slotted locking round nut meets rigorous dimensional and mechanical property requirements. We provide complete certification documentation with each shipment of Vibration-Proof Slotted locking round nut to facilitate your quality control processes.

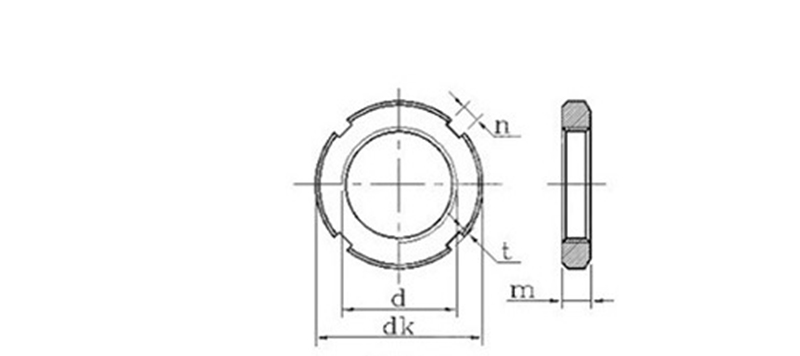

d*P	dk	m	n		t		1000 kg	d*P	dk	m	n		t		1000 ≈kg
			nax	nin	max	min					max	min	nax	min
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95						342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
