Round Nut with Slot

Xiaoguo® Round Nut made in China with Slot complies with national standards GB812, German standard DIN 981, and international standard ISO 7718. Therefore, the size and thread accuracy of the product are strictly regulated and traceable. Round nut with slot Free Sample We will provide you with this sample during the early stage of our cooperation.

Send Inquiry

Product Description

Customization process

The usual customization process for non-standard Round nut with slot is：

（1）Demand communication: Clearly define the requirements for the product's functions, dimensions, materials, etc.

（2）Drawing confirmation: Provide 2D/3D drawings and communicate with the engineers to confirm the dimensions and tolerances.

（3）Sample production: Mold is made to produce samples, and after they pass the tests and verification, photos and videos will be provided to the customers.

（4）Mass production: After the customer confirms that the sample is qualified, the mass production stage begins.

（5）Quality inspection upon delivery: Rigorous inspections are conducted before shipment, and quality reports are provided along with the goods.

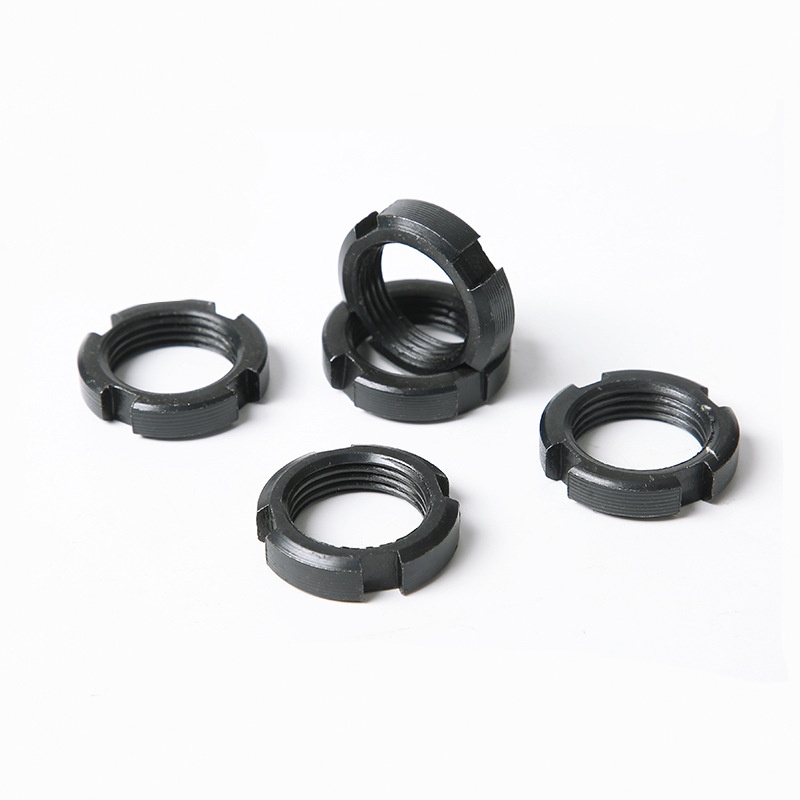

Round Nut with Slot

The customizable main aspects

The non-standard customization service for Round nut with slot is very mature. Almost all key parameters can be flexibly adjusted according to your actual usage.

（1）Dimensions and Specifications:

Full-size adjustment: The outer diameter, inner diameter, and thickness (height) can all be customized.

Specialized customization: Customized versions such as elongated, stepped, blind-hole types, etc. of nuts can be provided.

（2）Thread parameters:

Diverse thread standards: In addition to the commonly used metric fine threads, it also supports metric coarse threads, American standard threads, and British standard threads, etc.

Special thread type: Threads can be customized as per requirements.

（3）Material selection:

Metal materials: carbon steel, alloy steel, stainless steel, brass, aluminum alloy, titanium alloy, etc.

Non-metallic materials: For some special applications, nylon and PEEK can be used.

（4）Mechanical properties:

Strength grade: Customizable options for the Round nut with slot include grades such as 4.8, 8.8, 10.9, and 12.9, designed to meet diverse performance requirements.

Mechanical indicators: Can be customized according to actual requirements.

（5）Surface treatment:

Including processes such as galvanizing, blackening, dactron coating, and nickel plating.

（6）Slot-type design:

According to the requirements for anti-loosening or installation, different numbers, widths, depths or special shapes of slots can be designed.

（7）Non-standard standards: Support the conversion of non-standard versions for various standard systems such as national standards (GB), German standards (DIN), American standards (ANSI), and Japanese standards (JIS).

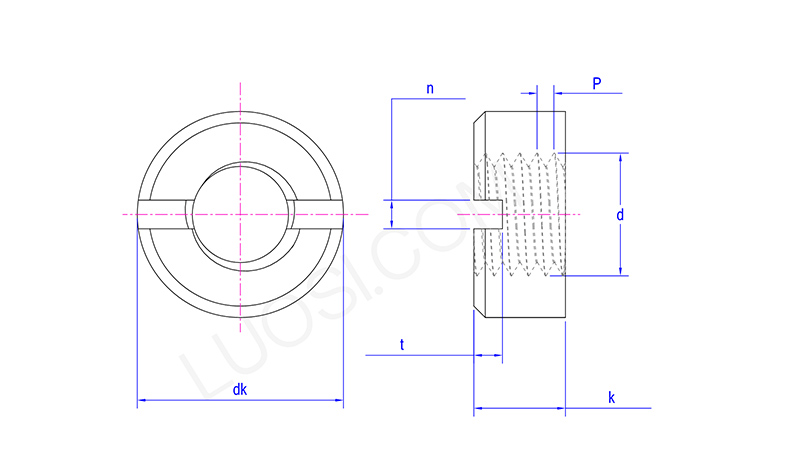

Round Nut with Slot

Mon	M3.5	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20
P	0.6	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5
dk max	7	8	9	11	14	18	21	24	26	29	32
dk min	6.64	7.64	8.64	10.57	13.57	17.57	20.48	23.48	25.48	28.48	31.38
k max	3	3.5	4.2	5	6.5	8	10	11	12	13	14
k min	2.75	3.2	3.9	4.7	6.14	7.64	9.64	10.57	11.57	12.57	13.57
n min	1.46	1.46	2.06	2.56	3.06	3.57	4.07	4.07	4.07	4.07	5.07
n max	1.71	1.71	2.31	2.81	3.31	3.87	4.37	4.37	4.37	4.37	5.37
t min	1	1.2	15	2	2.5	3.2	3.8	3.8	3.8	4.8	4.8
t max	1.40	1.60	1.90	2.4	3	3.7	4.3	4.3	4.3	5.5	5.5
