Versatile Welding Flange Nut

The Versatile Welding flange nut is widely used in automotive manufacturing, heavy machinery, and structural steelwork due to its reliable holding power. Clients trust Xiaoguo® because of its clear communication—they’ll keep you updated on every step, from coordinating with suppliers for order preparation to order placement and final delivery.

Model:QC/T 872-2011

Send Inquiry

Product Description

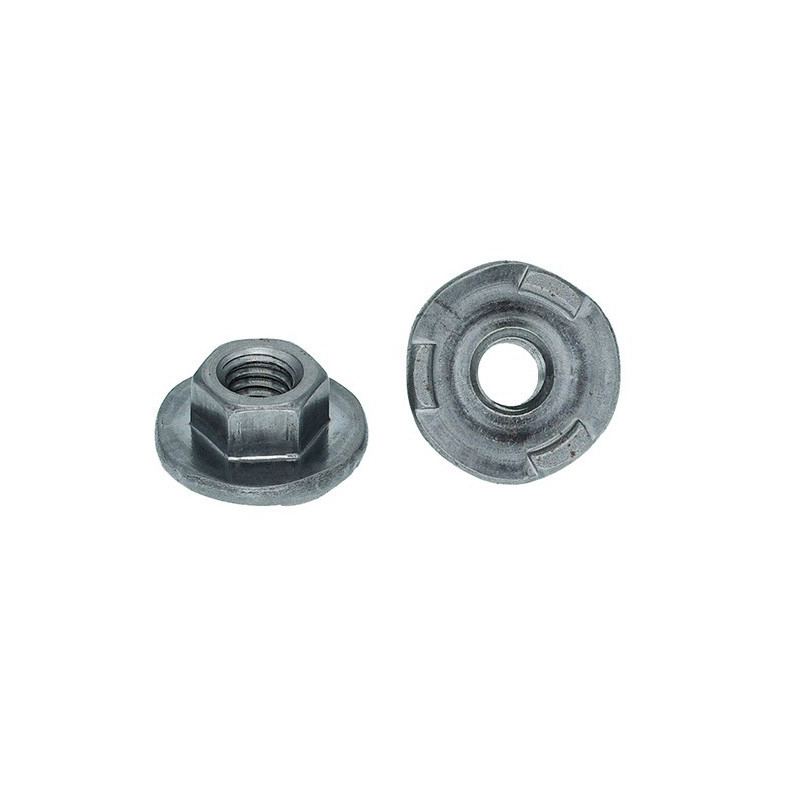

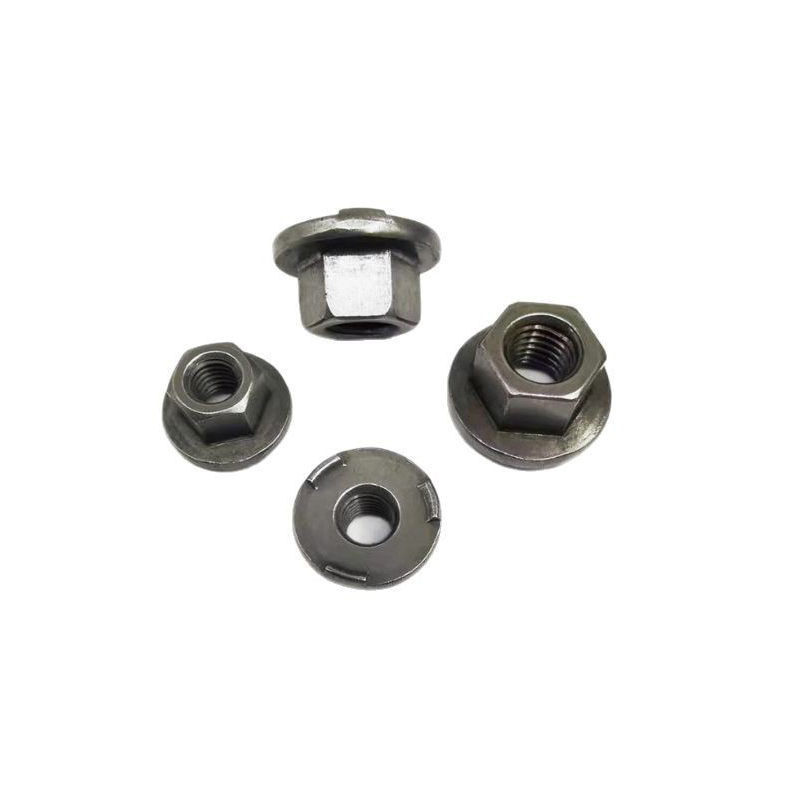

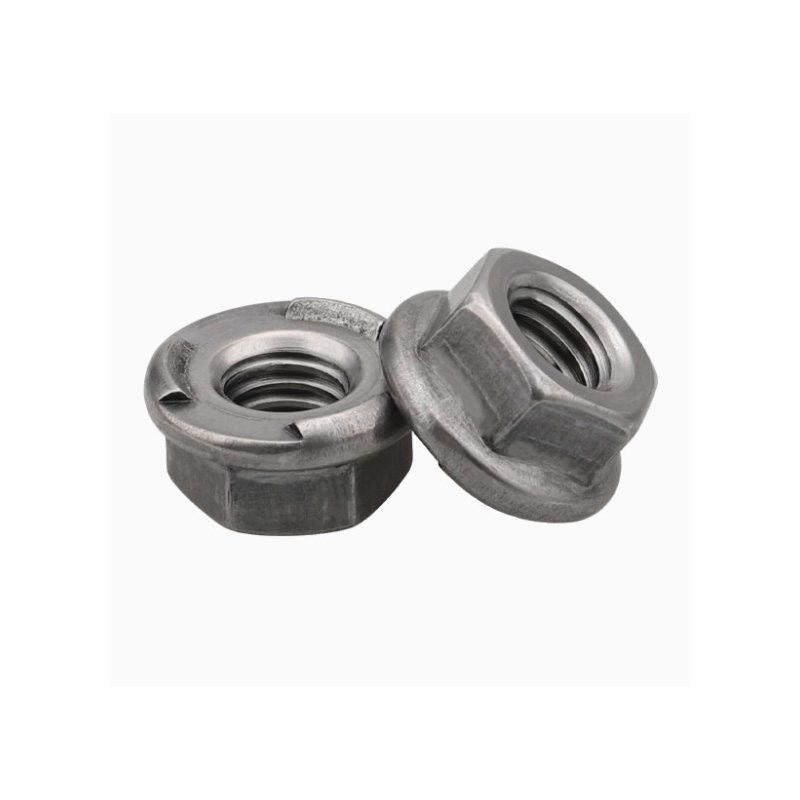

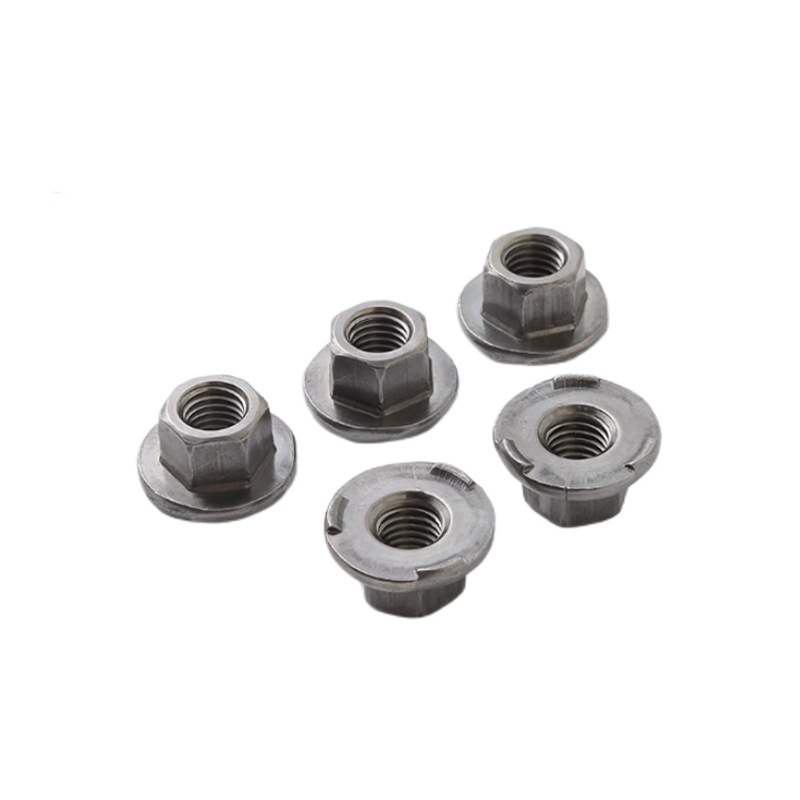

Round-base Versatile Welding flange nuts are pretty standard. This round design provides a wider, flatter welding surface, making for a stronger weld. And because it's round, you don't have to be extremely precise when welding—a key advantage for automated operations. Plus, its thinness allows it to fit into tight spaces where larger fasteners can't.

Product details

For tight spots, there are also special Versatile Welding flange nuts made to fit. These are designed with a smaller or slimmer shape so they can work in places where regular nuts won’t fit. Even though they’re compact, they’re still strong and hold just as securely as standard Versatile Welding flange nuts. You’ll often see them used in tight machinery setups or wherever it’s tricky to reach during installation.

Q:What is the pressure rating or load capacity of your Versatile Welding flange nut?

A:The load capacity of a Versatile Welding flange nut is high, as the welded flange distributes force over a wider area, reducing point stress. The exact rating depends on material grade and size. Please contact us with your specific parameters for detailed technical data.

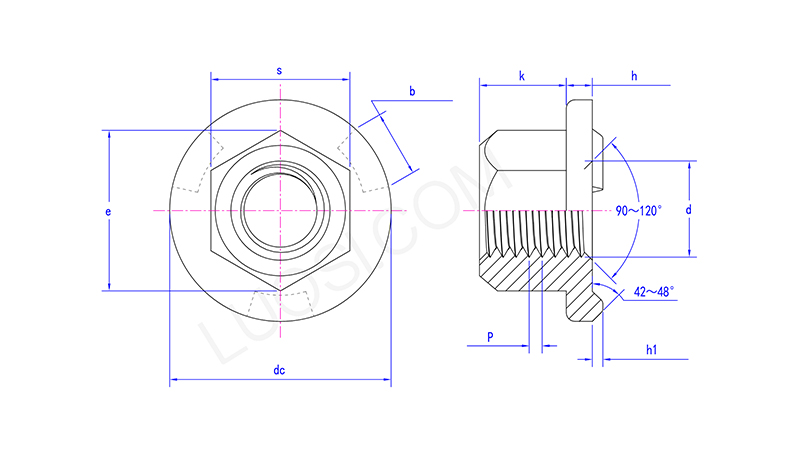

Mon	M8	M10	M12	M14
P	1.25	1.5	1.75	2
h1 max	1.1	1.3	1.3	1.3
h1 min	0.9	1.1	1.1	1.1
dc max	22.5	26.5	30.5	33.5
dc min	21.5	25.5	29.5	32.5
e min	13.6	16.9	19.4	22.4
h max	2.75	3.25	3.25	4.25
h min	2.25	2.75	2.75	3.75
b max	6.1	7.1	8.1	8.1
b min	5.9	6.9	7.9	7.9
k min	9.64	12.57	14.57	16.16
k max	10	13	15	17
s max	13	16	18	21
s min	12.73	15.73	17.73	20.67
