Threaded Locking Retaining Ring

A threaded locking retaining ring is a mechanical component designed to prevent threaded connections from loosening. It combines a threaded screw with a sleeve to evenly distribute pressure during installation, ensuring a secure and stable fit.Xiaoguo® is a professional fastener manufacturer in China that can customise products according to customer requirements and provide samples.

Model:GB/T 885-1986

Send Inquiry

Product Description

Threaded locking retaining rings are made of stainless steel or carbon steel, which are strong and rust-resistant. The surface has undergone heat treatment to extend service life and enhance wear resistance. The threaded portion has undergone precision cutting treatment to ensure smooth tightening and thread alignment. For use in harsh environments, zinc-nickel plating or black oxide plating can be selected to add a corrosion-resistant coating to the surface.These materials can operate in a temperature range of -40°C to 300°C, so this locking ring can be used in extreme environmental conditions such as marine environments, chemical plants, or heavy machinery.

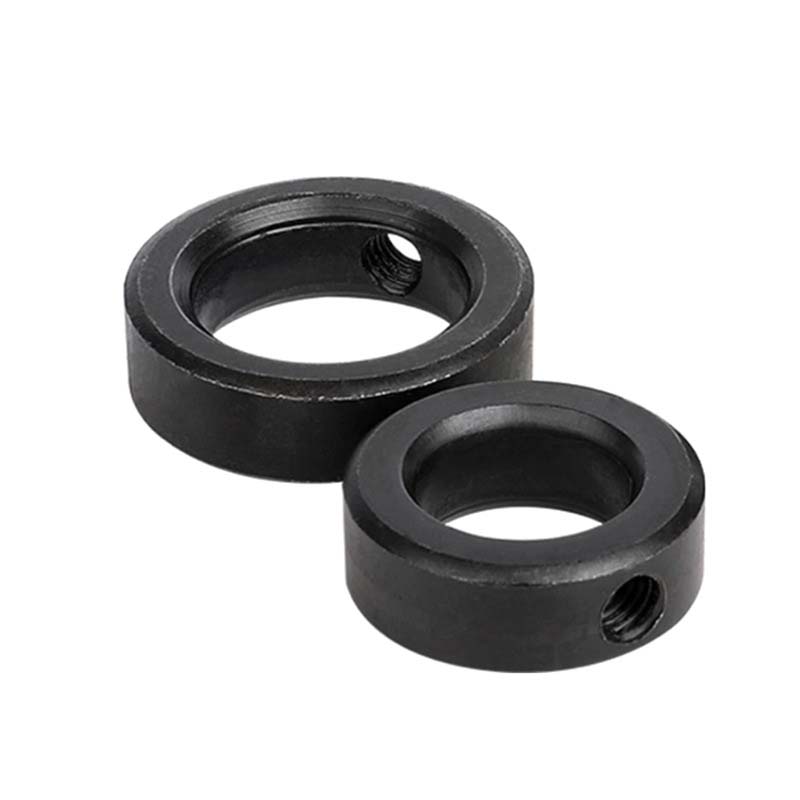

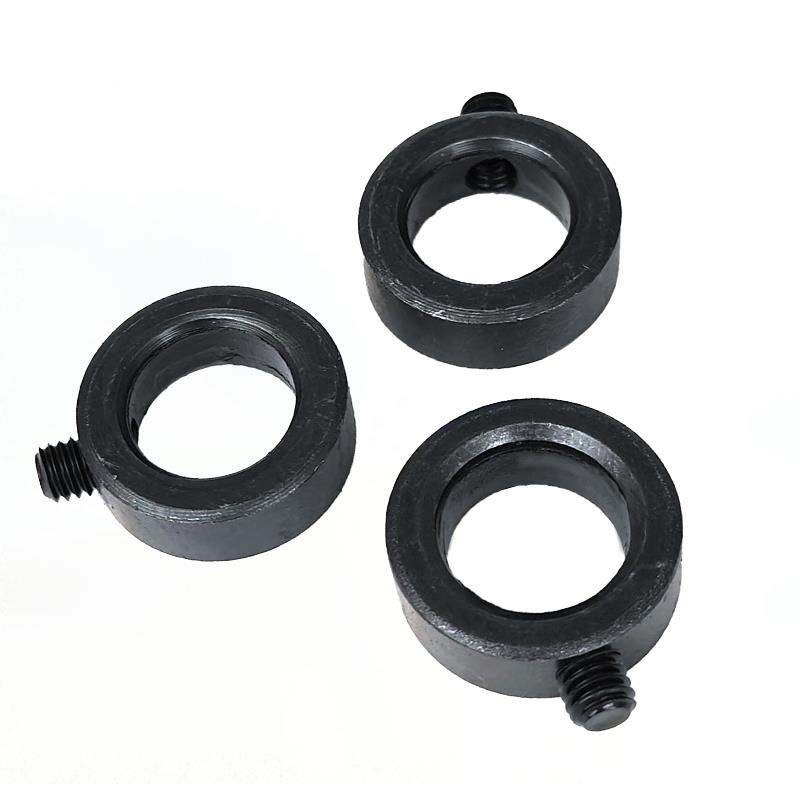

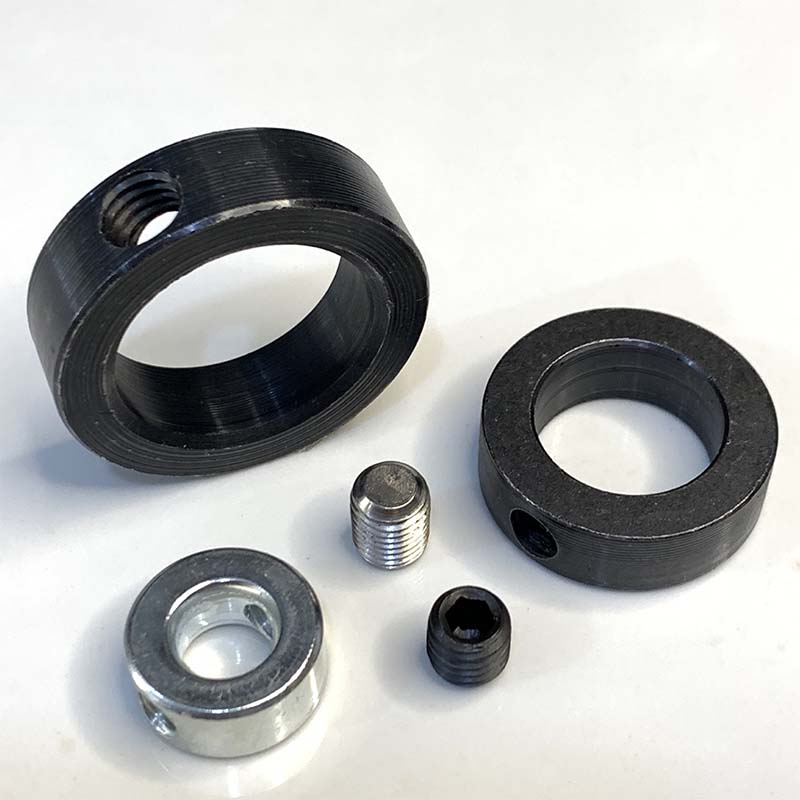

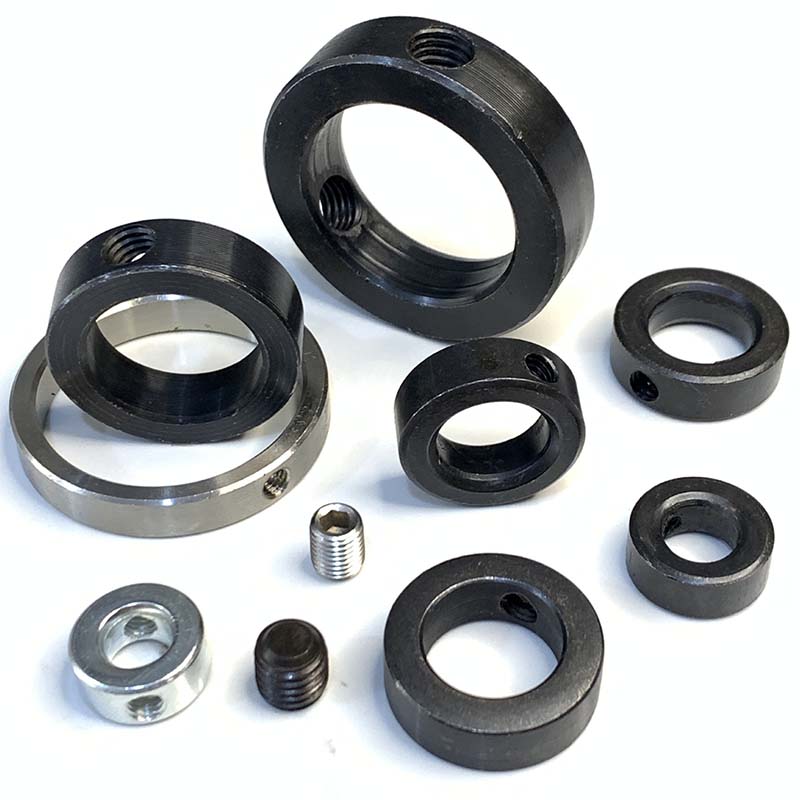

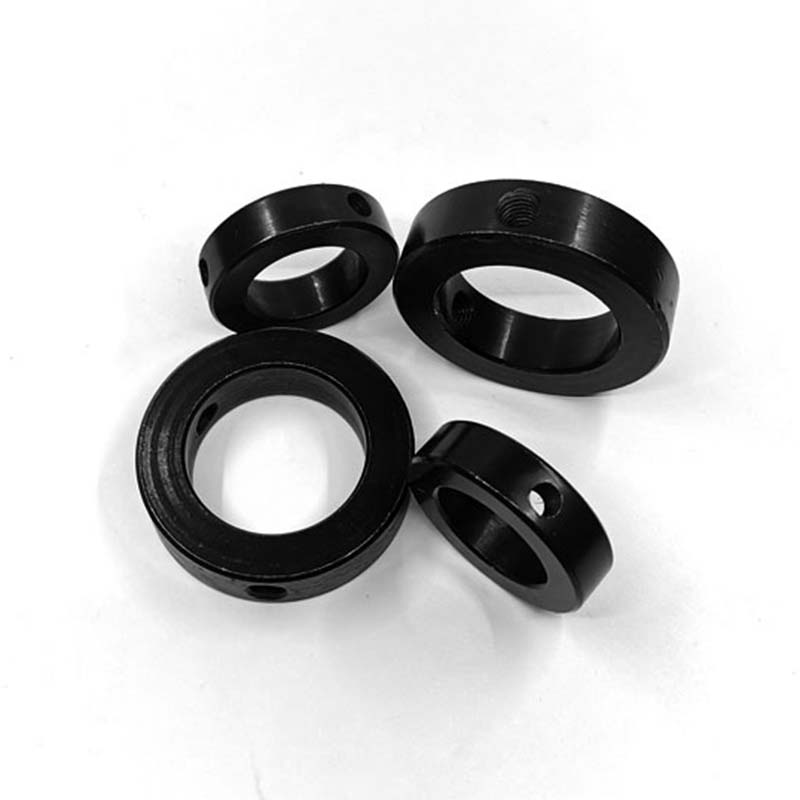

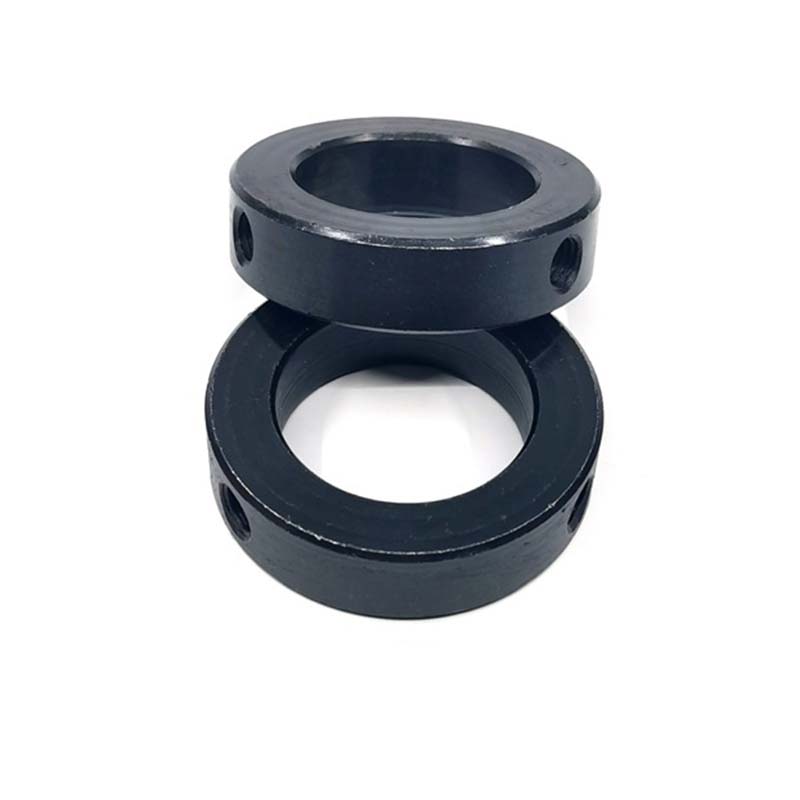

Threaded locking retaining ring

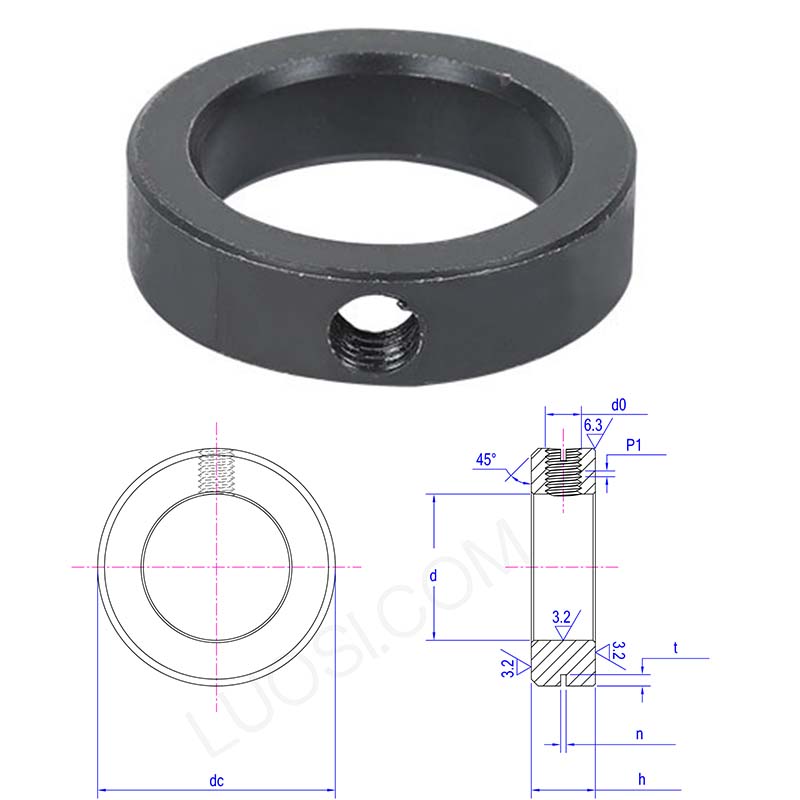

Mon	Φ14	Φ15	Φ16	Φ17	Φ18	Φ19	Φ20	Φ22	Φ25	Φ28	Φ30
d max	14.043	15.043	16.043	17.043	18.043	19.052	20.052	22.052	25.052	28.052	30.052
d min	14	15	16	17	18	19	20	22	25	28	30
h max	12	12	12	12	12	12	12	12	14	14	14
h min	11.57	11.57	11.57	11.57	11.57	11.57	11.57	11.57	13.57	13.57	13.57
n max	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.51	1.51	1.51
n min	1.06	1.06	1.06	1.06	1.06	1.06	1.06	1.06	1.26	1.26	1.26
t max	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.75	2.75	2.75
t min	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	2.25	2.25	2.25
dc	28	30	30	32	32	35	35	38	42	45	48
d0	M6	M6	M6	M6	M6	M6	M6	M6	M8	M8	M8
P1	1	1	1	1	1	1	1	1	1.25	1.25	1.25

Application

Threaded locking retaining rings are widely used in power transmission systems, pump assemblies, and robot components, especially in applications where it is necessary to ensure that components are securely fixed on the shaft. With their vibration-resistant characteristics, they are commonly used in automotive transmission systems, wind turbine gearboxes, and conveyor systems. It is also used in the aerospace industry.

It also shows up in agricultural equipment and renewable energy setups, doing a solid job of keeping things fixed in dusty, wet conditions or when there’s a lot of torque involved.

Are special tools required for installation?

No special tools are required for operation. Ordinary tools (such as hex wrenches or screwdrivers) can be used to easily install threaded locking retaining rings. No hydraulic presses or custom fixtures are needed for adjustment. Precise adjustment can be achieved simply by using the threaded screws on the locking ring.
