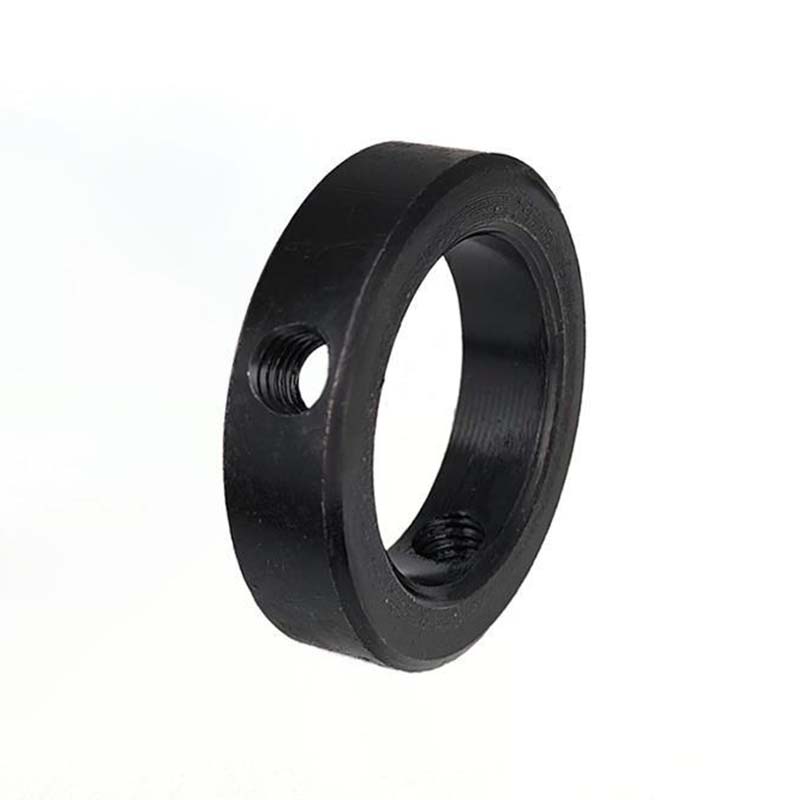

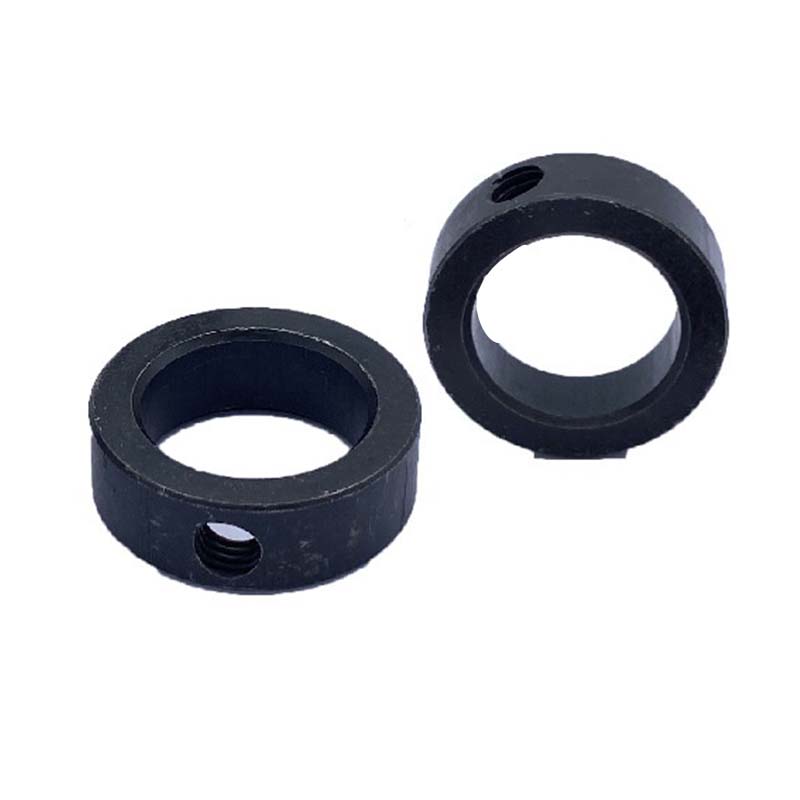

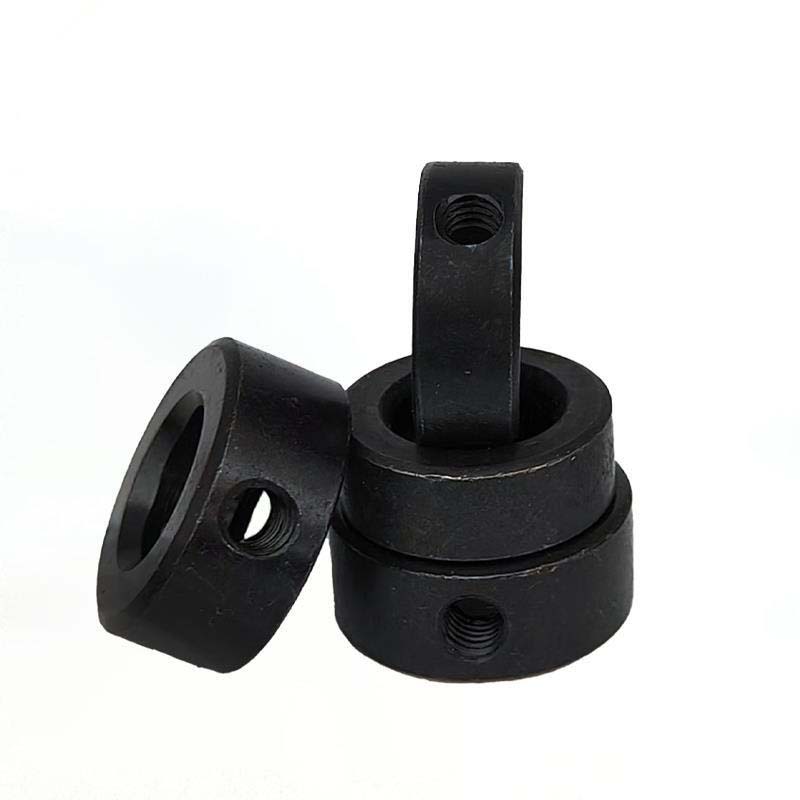

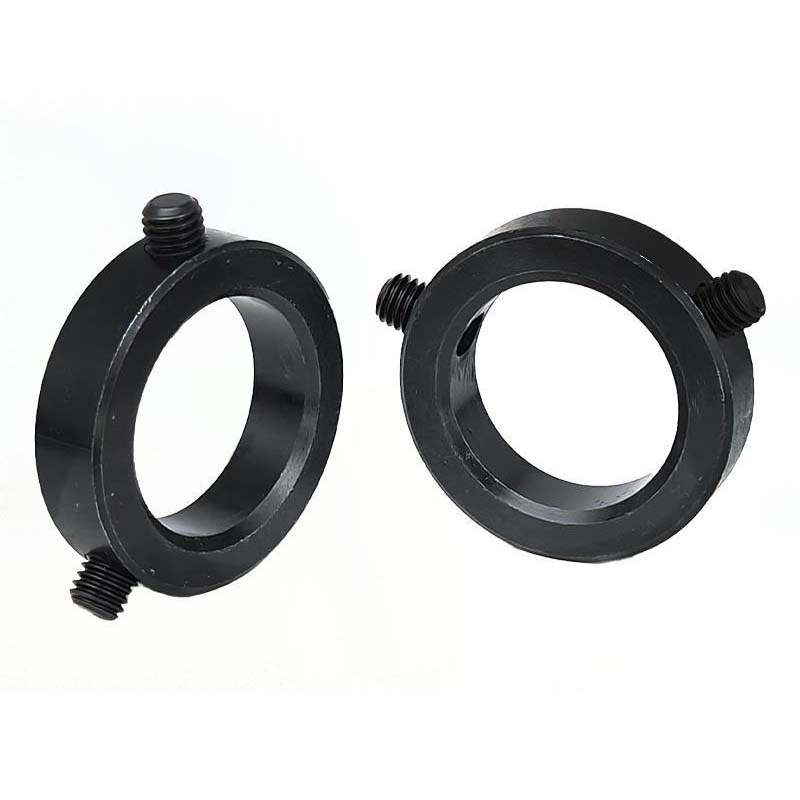

Set Screw Lock Collar Retainer

XIAOGUO® maintains warehouses in Rotterdam and Houston to expedite regional deliveries.Installation of a set screw lock collar retainer involves tightening its screws to compress the ring radially, creating a precise and reusable clamping mechanism.

Model:GB/T 885-1986

Send Inquiry

Product Description

To make it last longer, this set screw lock collar retainer has different surface treatments. Nickel plating (applied evenly without electricity) helps protect against rust, and phosphate coatings make it smoother and more rust-resistant. For tough environments, you can add tungsten carbide layers sprayed on with a special process. These treatments keep it working well in acid, salt, or rough conditions. You can also get custom anodizing options that meet specific industry standards, like FDA-approved finishes for machines used in food processing.

Size

The Set screw lock collar retainer comes in shaft diameters from 5mm to 500mm, with fit tolerances up to ISO h6 standards. You can get custom widths (3mm to 20mm) and thread sizes (M3 to M24) to fit different design needs. Each one has laser marks for tracking, so you can keep tabs on it. The CAD drawings that come with it make it easy to fit into existing setups. There are also split-ring versions that let you add them to shafts that are already installed without having to take everything apart first.

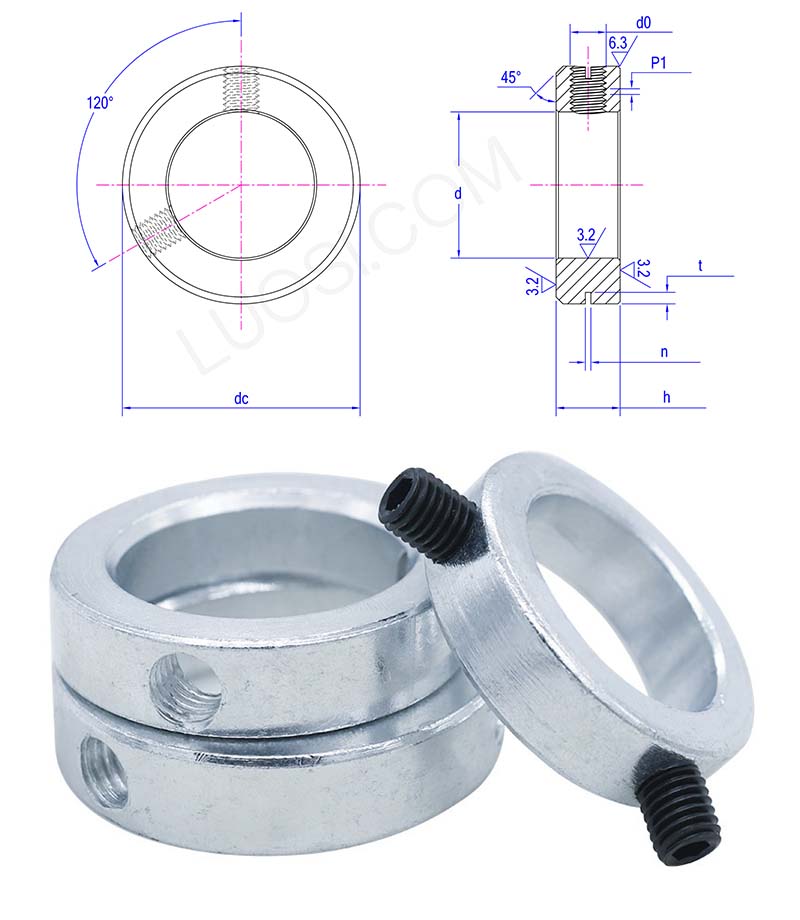

Mon	Φ85	Φ90	Φ95	Φ100	Φ105	Φ110	Φ115	Φ120	Φ125	Φ130	Φ135
d max	85.087	90.087	95.087	100.087	105.087	110.087	115.087	120.087	125.1	130.1	135.1
d min	85	90	95	100	105	110	115	120	125	130	135
h max	22	22	25	25	25	30	30	30	30	30	30
h min	21.48	21.48	24.48	24.48	24.48	29.48	29.48	29.48	29.48	29.48	29.48
n max	2.31	2.31	2.31	2.31	2.31	2.31	2.31	2.31	2.31	2.31	2.31
n min	2.06	2.06	2.06	2.06	2.06	2.06	2.06	2.06	2.06	2.06	2.06
t max	3.96	3.96	3.96	3.96	3.96	4.95	4.95	4.95	4.95	4.95	4.95
t min	3.24	3.24	3.24	3.24	3.24	4.05	4.05	4.05	4.05	4.05	4.05
dc	120	125	130	135	140	150	155	160	165	170	175
d0	M12	M12	M12	M12	M12	M12	M12	M12	M12	M12	M12
P1	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75

Stand high-temperature environments

The set screw lock collar retainer is usually made from heat-treated steel or stainless steel that resists corrosion, so it can work well in temperatures up to 300°C (572°F). The screws on the lock collar often have a high-temperature anti-seize coating to stop the threads from sticking or wearing down. If you need it for really tough conditions, there are options like Inconel® or ceramic-coated versions. They test it by cycling through hot and cold temps to make sure the retaining ring keeps its clamping force and doesn’t change shape. That makes it good for engines, turbines, or aerospace setups where it gets super hot.
