Threaded Eye Bolt

The China Xiaoguo® Threaded Eye bolt offers various treatments such as electro-galvanizing, hot-dip galvanizing, dactron coating, and blackening. It can adapt to various working environments you may encounter. When purchasing, you can inform us about the working conditions, and we will recommend the best solution for you for free.

Send Inquiry

Product Description

Product Classification

Threaded Eye bolt are mainly classified based on whether they have a "shoulder" and the length of the threads.

【1】According to the classification based on the "shoulder" design:

（1）Plain / Non-Shouldered: The structure is the simplest, with the thread starting directly from beneath the ring.

（2）Shoulder / Collared: At the connection point between the hook and the threaded rod, there is a thickened "shoulder". The shoulder can evenly distribute the lateral force, significantly enhancing safety.

【2】According to the length of the thread:

（1）Full Threaded: Integral thread on the screw. It is highly flexible in installation and can precisely adjust the position by cooperating with the nut. It is particularly suitable for applications requiring precise positioning.

（2）Partial Threaded: At the top of the screw, there is a section of smooth rod without threads. The diameter of the smooth rod is equal to the major diameter of the threads. It has an advantage in dynamic load scenarios requiring high strength and precise positioning.

Threaded Eye Bolt

Customized service

Xiaoguo® offers comprehensive custom services for Threaded Eye bolt to meet your unique requirements:

（1）Non-standard size: Customizable for various screw specifications ranging from M6 to M100+, as well as lengths and inner/outer diameters of the lifting rings.

（2）Special materials: In addition to the common carbon steel and stainless steel, alloy steel, brass, titanium alloy, etc. can also be customized.

（3）Various surface treatments: Offer electro-galvanizing, hot-dip galvanizing, Dacromet coating, blackening and other processes.

（4）Identification and Packaging: We can offer services such as laser marking of logos and customized packaging for brands.

（5）Technical Support: Assist in confirming the drawings, providing selection suggestions, and offering installation guidance.

Threaded Eye Bolt

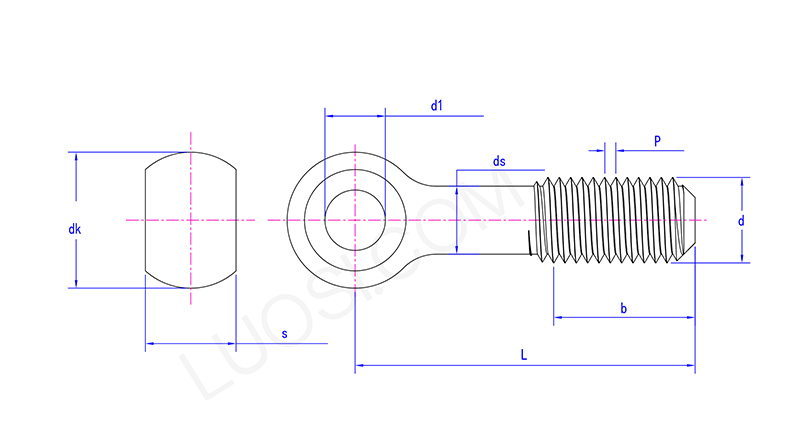

Mon	M8	M10	M12	M16	M20	M24	M27	M30	M33	M36	M39
P	1.25	1.5	1.75	2	2.5	3	3	3.5	3.5	4	4
d1 max	8.036	10.036	12.043	16.043	18.043	22.052	25.052	28.052	30.052	32.062	35.062
d1 min	8	10	12	16	18	22	25	28	30	32	35
dk max	18	20	25	32	40	45	50	55	60	65	70
dk min	16.9	18.7	23.7	30.4	38.4	43.4	48.4	53.1	58.1	63.1	68.1
s max	11	14	17	19	24	28	30	34	38	41	46
s min	10.3	13.3	16.3	18.16	23.16	27.16	29.16	33	37	40	45
ds max	8	10	12	16	20	24	27	30	33	36	39

FAQ

（1）When does the warranty period for the Threaded Eye bolt start?

The warranty period begins from the Shipping Date, not the customer's receipt date. Therefore, it is recommended that customers check the goods as soon as they receive them and contact us promptly if any problems are found.

（2）What is the processing period for warranty claims?

From when a customer submits a warranty request to when the claim is fully processed, it usually takes 10 to 15 working days. In case of an emergency, the processing can be expedited.

（3）Does Xiaoguo®'s Threaded Eye bolt have CE certification?

Yes. Xiaoguo® product complies with the requirements of the EU Machinery Directive 2006/42/EC and is equipped with a CE mark, allowing it to be legally sold and used in the European market.
