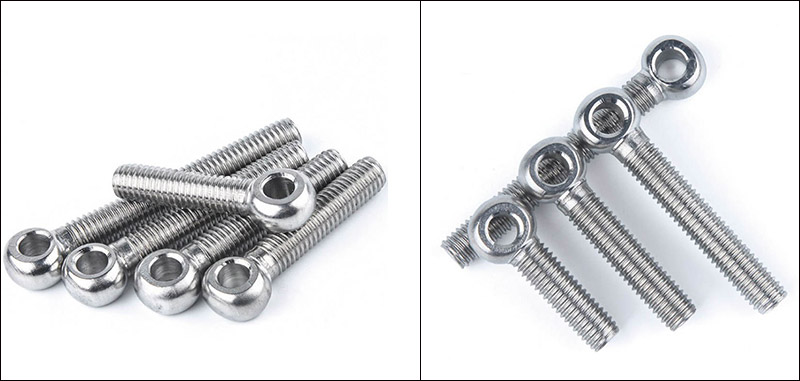

Standard Eye Bolts

Choose Xiaoguo® high-strength Standard Eye Bolts, made of alloy steel with heat treatment, capable of withstanding a working load of 8,000 pounds. A load test report is provided for each batch of orders. Discounts are available for bulk orders.

Send Inquiry

Product Description

Material Introduction

The Xiaoguo® Standard Eye Bolts offer a wide range of material options to meet the needs of customers in various industrial environments and with different budgets. Below are several common materials and their corresponding characteristics:

（1）Carbon steel

Standard: C15E, C45E, 45#, Q235, 1018, 1022

Grade: 4.6, 4.8, 8.8

Features: High strength, large bearing capacity, high cost-effectiveness. Good toughness and welding performance.

Applications: Indoor environment, general industrial lifting, construction, storage equipment, mechanical maintenance, etc.

（2）Alloy steel

Standard: 40Cr, 35CrMo, 42CrMo, 35CrMoA

Grade: 8.8, 10.9, 12.9

Features: After undergoing heat treatment, the Standard Eye Bolts possess extremely high tensile strength, excellent toughness and outstanding fatigue resistance, and are capable of withstanding heavy loads and impacts.

Standard Eye Bolts

（3）Stainless steel

Standard: 304 (A2), 316 (A4)

Grade: A2 - 70, A4 - 80

Features: Outstanding rust and corrosion resistance, shiny appearance, hygienic and easy to clean. The corrosion resistance is much higher than 304.

Applications: Marine engineering, coastal facilities, chemical industry, food, medicine, outdoor and other humid/corrosive environments.

（4）Hot-dip galvanized steel

Features: Through the hot-dip galvanizing process, a thick and durable zinc-iron alloy coating will be formed on the surface of the Standard Eye Bolts.

Applications: For outdoor buildings, agricultural equipment, fences, docks, etc., where weather resistance is required but a stainless steel grade is not necessary.

（5）Brass

Characteristics: Resistant to seawater corrosion, does not produce sparks, has no magnetism, and is aesthetically pleasing. Applications: Marine hardware, explosion-proof environments (such as oil and gas fields), special occasions with high electrical conductivity requirements.

Standard Eye Bolts

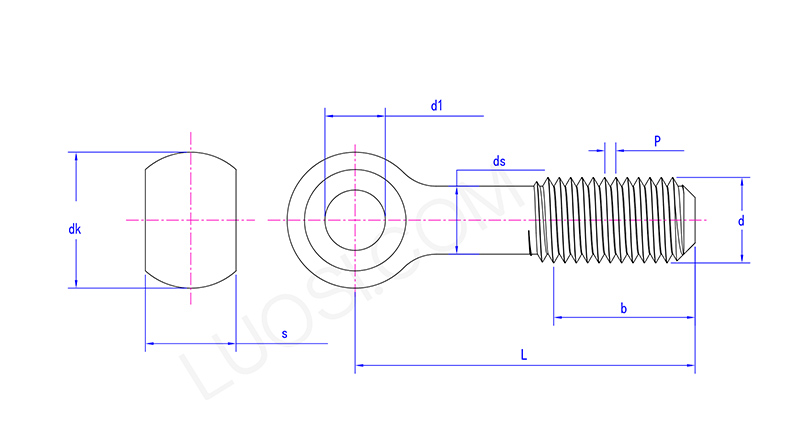

Mon	M8	M10	M12	M16	M20	M24	M27	M30	M33	M36	M39
P	1.25	1.5	1.75	2	2.5	3	3	3.5	3.5	4	4
d1 max	8.036	10.036	12.043	16.043	18.043	22.052	25.052	28.052	30.052	32.062	35.062
d1 min	8	10	12	16	18	22	25	28	30	32	35
dk max	18	20	25	32	40	45	50	55	60	65	70
dk min	16.9	18.7	23.7	30.4	38.4	43.4	48.4	53.1	58.1	63.1	68.1
s max	11	14	17	19	24	28	30	34	38	41	46
s min	10.3	13.3	16.3	18.16	23.16	27.16	29.16	33	37	40	45
ds max	8	10	12	16	20	24	27	30	33	36	39

Selection of materials

When choosing the material for Standard Eye Bolts, the following principles are recommended:

（1）Indoor, dry environment: Carbon steel with electro-galvanizing is the most cost-effective option.

（2）Outdoor, humid or coastal environments: Preferentially consider hot-dip galvanized steel or 304 stainless steel.

（3）Highly corrosive or marine environments: 316 stainless steel is the best choice for ensuring long-term stability and safety.

（4）Heavy-duty, high-impact or critical equipment: Alloy steel (such as grade 10.9) can withstand extreme loads and ensure safety.

（5）Special environmental requirements: Materials such as brass can meet special scenarios like explosion-proof and non-magnetic properties.

【Special Note】When making the final decision on the material, please make sure to thoroughly assess the actual working environment and combine it with the budget to make the most appropriate choice. If you would like to know more details or need advice on material selection, please feel free to contact us at any time.
