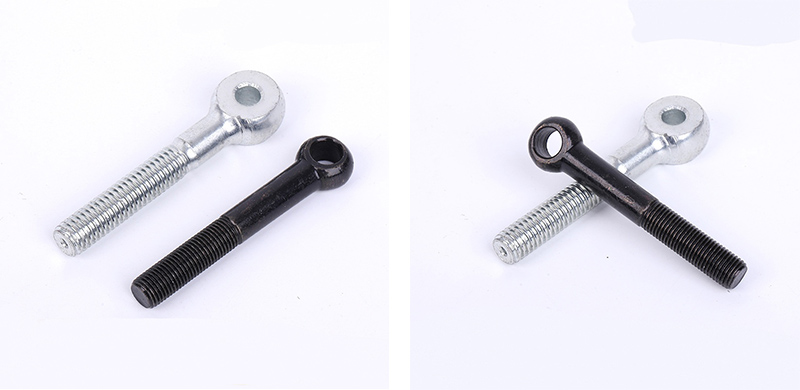

M10 Eye Bolt

Purchase the Xiaoguo® M10 eye bolt, which is forged as a single piece without any welding defects. It has a high safety factor for operation. Each piece is tested under 1.5 times the pulling force and comes with a test report, making the lifting operation more reassuring

Send Inquiry

Product Description

Key specifications

The M10 eye bolt is a type of fastener with a ring-shaped hook at one end and an M10 metric thread at the other end. It is mainly used for lifting, hoisting, anchoring, towing, fixation and connection of ropes, chains or equipment. Its production strictly adheres to international standards to ensure interchangeability and safety among the products. The specific dimensions of the M10 specification are as follows:

Parameter Value

Thread Size M10 x 1.5 (diameter 10mm, pitch 1.5mm)

Thread Length 17mm or longer, depending on the type

Eye Inside Diameter Approximately 25mm

Eye Outside Diameter Approximately 45mm

Overall Length Approximately 62mm

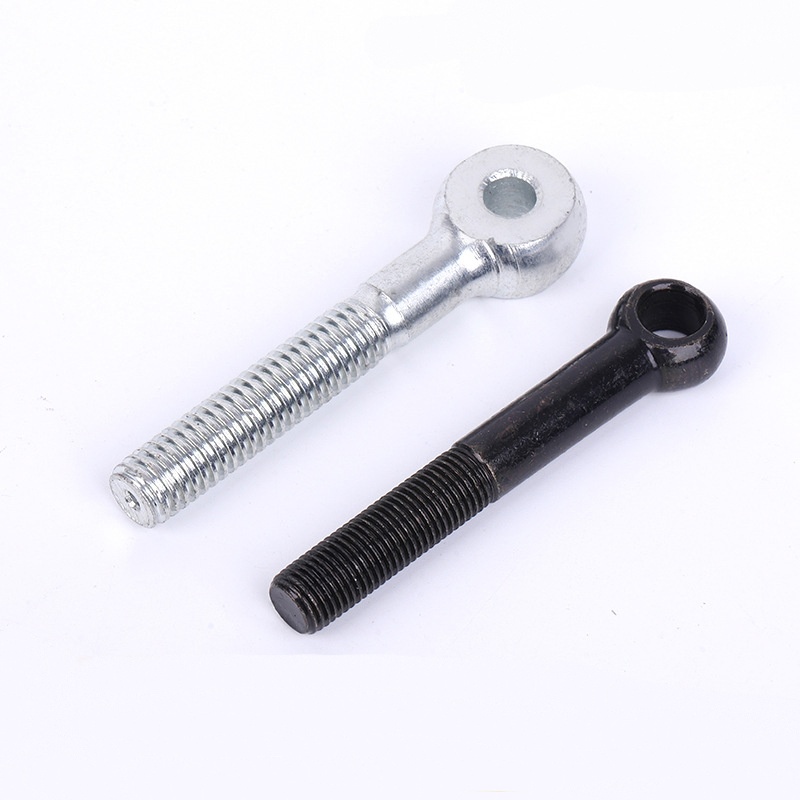

M10 Eye Bolt

Application

The M10 eye bolt is a standard fastener with a wide range of application scenarios. It is widely used in industries, construction, marine, agriculture, and even in daily life. The following is an overview of the application scenarios of M10 eye bolt in different situations.

（1）Industry and manufacturing

Equipment hoisting, storage rack fixation, connection of production line tooling and fixtures.

（2）Architecture and Construction

Temporary structure reinforcement, guy wires, HVAC/lighting equipment installation.

（3）Ships and Oceans

Cargo fastening on ship decks, mooring line fixation, and ship equipment fixation

（4）Agriculture and Horticulture

Fence wire tightening, fence fixation, maintenance lifting points for agricultural machinery, structure fixation of greenhouses and sheds, hanging of flower pots.

（5）DIY and Home Decor

Garden swings, hammocks, sunshades, green plant baskets, balcony drying lines, wall hooks, stage lighting setups.

（6）Special and professional fields

Theatrical / stage lighting suspension, grounding wire fixation for electrical equipment, sailing rope, racing / karting equipment fixation.

（7）Outdoor shading structures

The anchor points for fixed shading sails, tensioned membrane structures, and other outdoor fabrics usually need to be used in conjunction with tensioning systems.

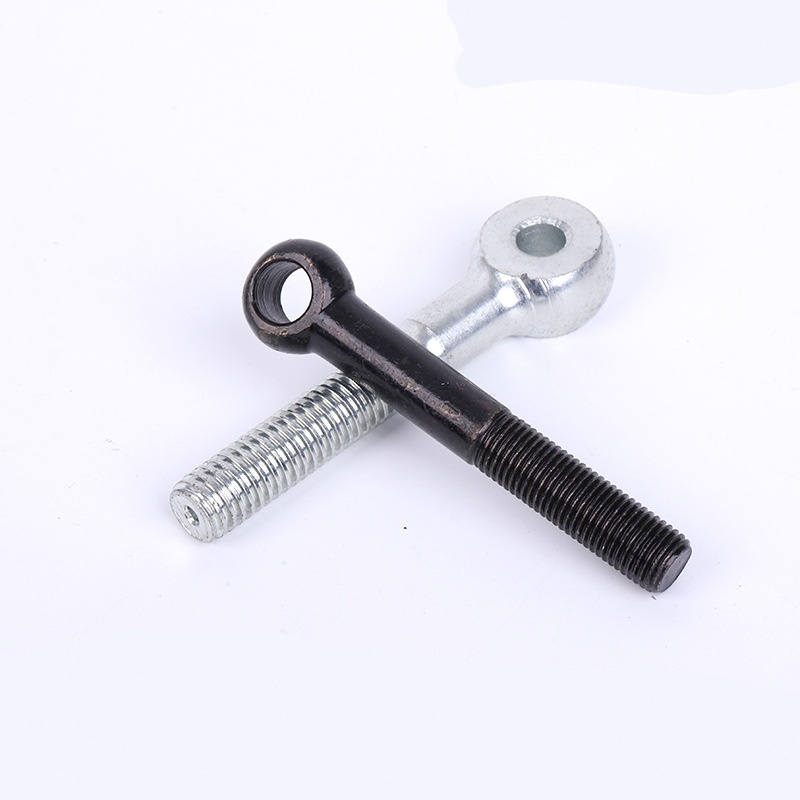

M10 Eye Bolt

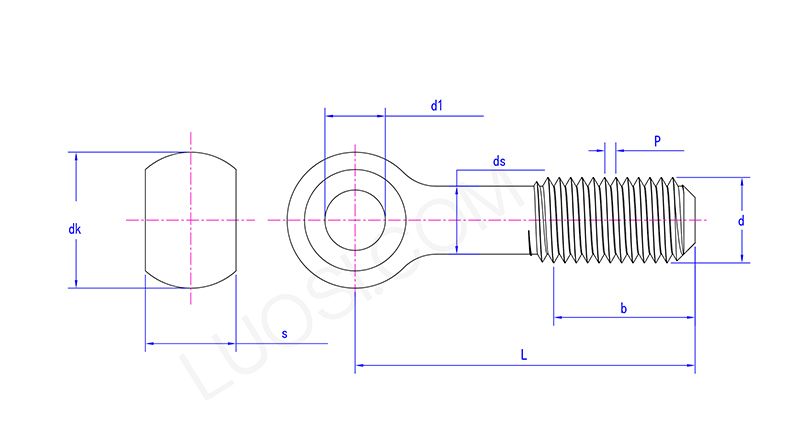

Mon	M8	M10	M12	M16	M20	M24	M27	M30	M33	M36	M39
P	1.25	1.5	1.75	2	2.5	3	3	3.5	3.5	4	4
d1 max	8.036	10.036	12.043	16.043	18.043	22.052	25.052	28.052	30.052	32.062	35.062
d1 min	8	10	12	16	18	22	25	28	30	32	35
dk max	18	20	25	32	40	45	50	55	60	65	70
dk min	16.9	18.7	23.7	30.4	38.4	43.4	48.4	53.1	58.1	63.1	68.1
s max	11	14	17	19	24	28	30	34	38	41	46
s min	10.3	13.3	16.3	18.16	23.16	27.16	29.16	33	37	40	45
ds max	8	10	12	16	20	24	27	30	33	36	39

FAQ

（1）Are your products forged or cast?

Our M10 eye bolt is manufactured using the Drop Forged process, and the material is high-strength alloy steel or stainless steel.

（2）What standards does your Bolt meet?

We strictly follow DIN 580 (the most common lifting ring bolt standard in Germany), ISO 3266 (an international standard), and ASME B18.15 (American standard) for production.

（3）What materials do you offer?

We offer the following material options:

Carbon steel (Grade 8.8/10.9): The most cost-effective option

Stainless steel 304 (A2-70): Excellent corrosion resistance performance

Stainless steel 316 (A4-80): Excellent corrosion resistance Alloy steel (10.9/12.9 grade): High strength, anti-fatigue

（4）What is the minimum order quantity (MOQ)? Can we get a sample first?

The minimum order quantity is 500-1000 pieces. For non-standard customization, it's 200 pieces or more. We offer free samples (with the cost of shipping included). After the samples have been tested and confirmed as qualified, for bulk orders, the sample fees can be refunded.
