Secure Weld Round Nuts

A key application for Secure Weld round nuts is in the automotive and sheet metal industries where they create durable threaded points. Xiaoguo® provides customized fastener options to suppliers to meet specific project requirements.

Model:Q 368-2012

Send Inquiry

Product Description

A common way to treat the surface of carbon steel Secure Weld round nuts is to plate them with zinc. This electroplated layer helps protect against rust, keeping the nut in good shape while it’s stored or being shipped, before it gets welded.

It’s good to know that the zinc right around where the weld happens will burn off when you install it. But the zinc left on the rest of the nut still gives some protection to the parts that don’t get hit by the welding heat. Protect it from oxidation by oxygen in the air.

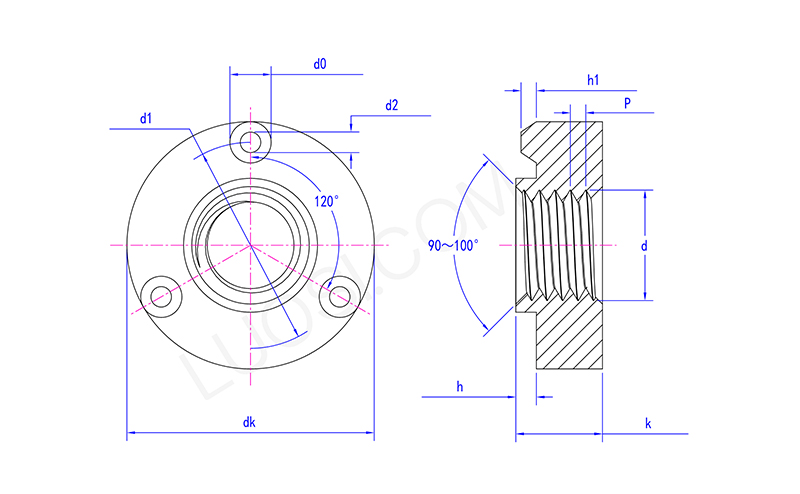

Mon	M4	M5	M6	M8	M10	M12
P	0.7	0.8	1	1.25	1.5	1.75
d1 max	10.9	11.9	13.3	17.9	19.9	22.7
d1 min	10.5	11.5	12.9	17.5	19.5	22.3
d0 max	2.8	2.8	3.2	4.3	4.3	5
d0 min	2.5	2.5	2.9	4	4	4.7
d2 max	0.95	0.95	1.5	2.1	2.1	2.5
d2 min	0.65	0.65	1.2	1.8	1.8	2.2
dk max	13.7	14.7	16.5	22.2	24.2	27.7
dk min	13.3	14.3	16.1	21.8	23.8	27.3
h max	1.35	1.35	1.55	2	2	2.5
h min	1.1	1.1	1.3	1.75	1.75	2.25
h1 max	0.85	0.85	1	1.5	1.5	2
h1 min	0.65	0.65	0.75	1.19	1.19	1.78
k max	4.45	4.7	5.2	6.8	8.4	10.8
k min	4.15	4.4	4.9	6.44	8.04	10.37

Product Details Introduction

If you need better rust protection and you're not welding right on the plated part, you can get carbon steel Secure Weld round nuts with hot-dip galvanizing. This process puts on a much thicker, longer-lasting zinc coating. Make it have a longer working life.

But usually, you have to grind the area where you'll weld clean first to get a good bond. That thick zinc can mess with the welding arc and make weak, porous joints if you don't. That's why they work well for parts that are pre-made before welding.

Secure Weld Round Nuts

Product Certification

Our process for making Secure Weld round nuts is certified to ISO 9001:2015. If you need them, we can also give you material test certificates (MTCs) and papers showing they meet specific standards like DIN 929 or ISO 10511. That way, you know they hit the strict international quality marks.

If you are interested, please contact us and we will provide you with high-quality and cost-effective products.
