Ruggedly Built Slotted Locking Round Nut

Ruggedly Built Slotted Locking Round Nut, manufactured in the factory, requires proper installation: it is tightened until one of its slots aligns perfectly with a cross-drilled hole in the bolt or stud. Meanwhile, the global logistics network of Xiaoguo® guarantees efficient and timely delivery of such nuts to customers across different continents.

Send Inquiry

Product Description

In the oil and gas industry, Ruggedly Built Slotted Locking Round Nut are used in valve components and drilling equipment. They can function properly in high-pressure and corrosive environments. Most of these nuts are made of alloy steel and coated with a special anti-wear coating.

For the energy industry, our prices are competitive, and we offer flexible payment terms for large orders. The surface treatment may be phosphating or silver plating - these are common choices. We ensure that the packaging is sturdy and waterproof, and we are responsible for delivering the products reliably to remote areas.

Each nut must undergo material inspection and performance testing, and we also provide API/ISO certification.

Product Details

When manufacturing fitness equipment, this perforated Ruggedly Built Slotted Locking Round Nut can securely fix the machine and the adjustable components on the weight frame - even under frequent use and impact. Its circular design is easy to operate, and its sturdy locking mechanism is also very important.

We provide value-for-money products for fitness brands. Precise assembly to avoid confusion; rigorous testing to ensure safety and durability. We can match according to the color of the equipment. We use an economical shipping method to deliver quickly.

Precise management prevents parts mix-ups; rigorous testing ensures product durability. We focus on every detail to ensure peace of mind.

FAQ

Q:What quality control measures ensure reliability?

A:Every batch of Ruggedly Built Slotted Locking Round Nut undergoes rigorous quality control including dimensional checks, material certification, and load testing. We implement statistical process control throughout Ruggedly-Built Slotted locking round nut manufacturing to maintain consistency. Our quality assurance system ensures each Ruggedly-Built Slotted locking round nut meets specified performance criteria before shipment.

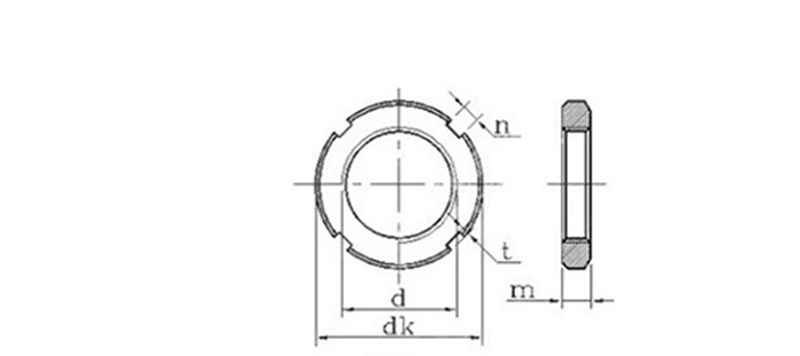

Ruggedly Built Slotted Locking Round Nut

d*P	dk	m	n		t		1000 kg	d*P	dk	m	n		t		1000 ≈kg
			nax	nin	max	min					max	min	nax	min
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95						342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
