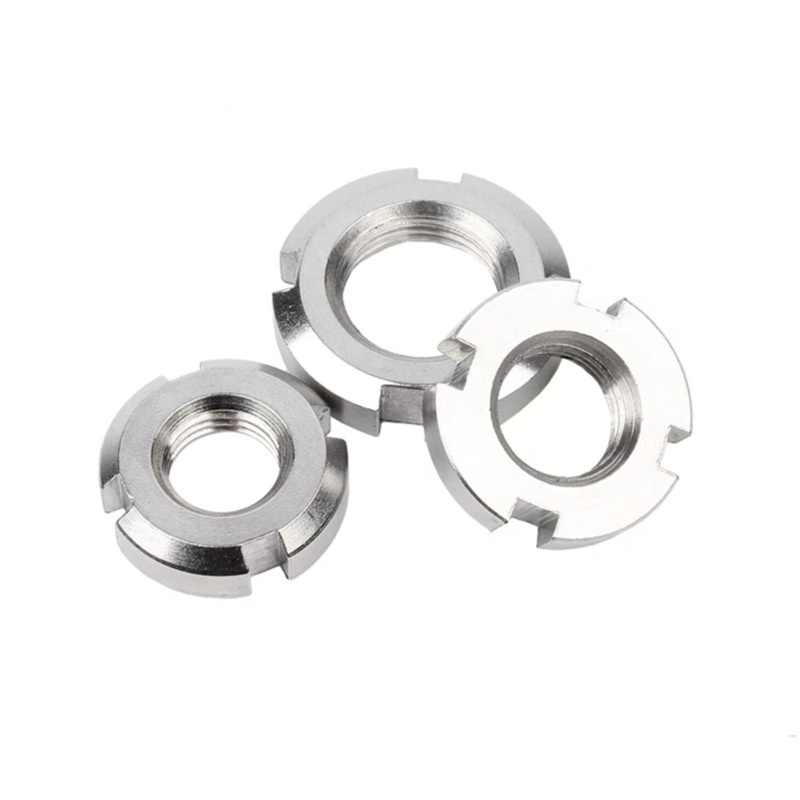

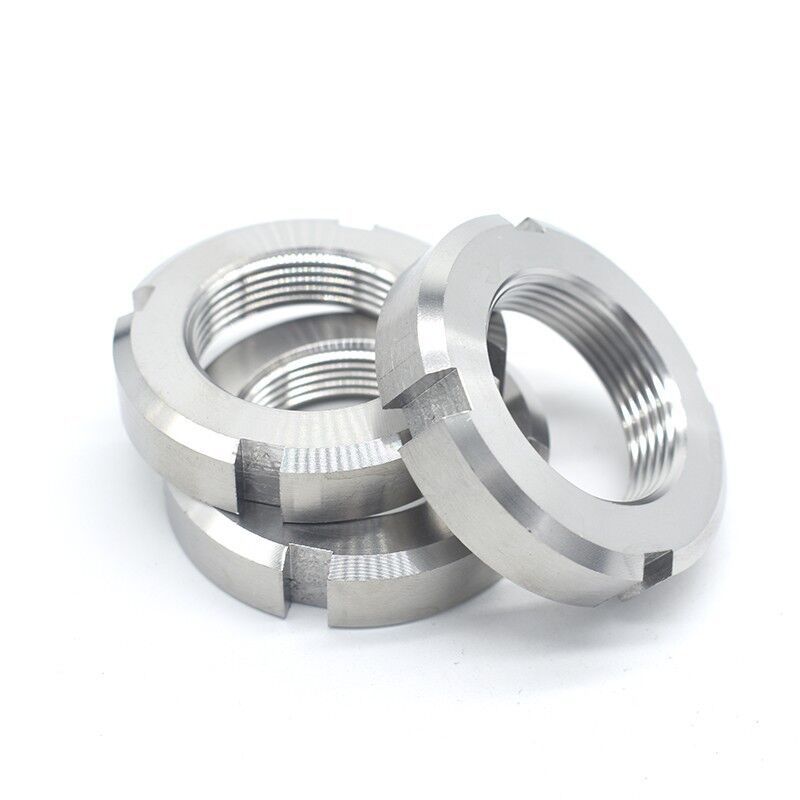

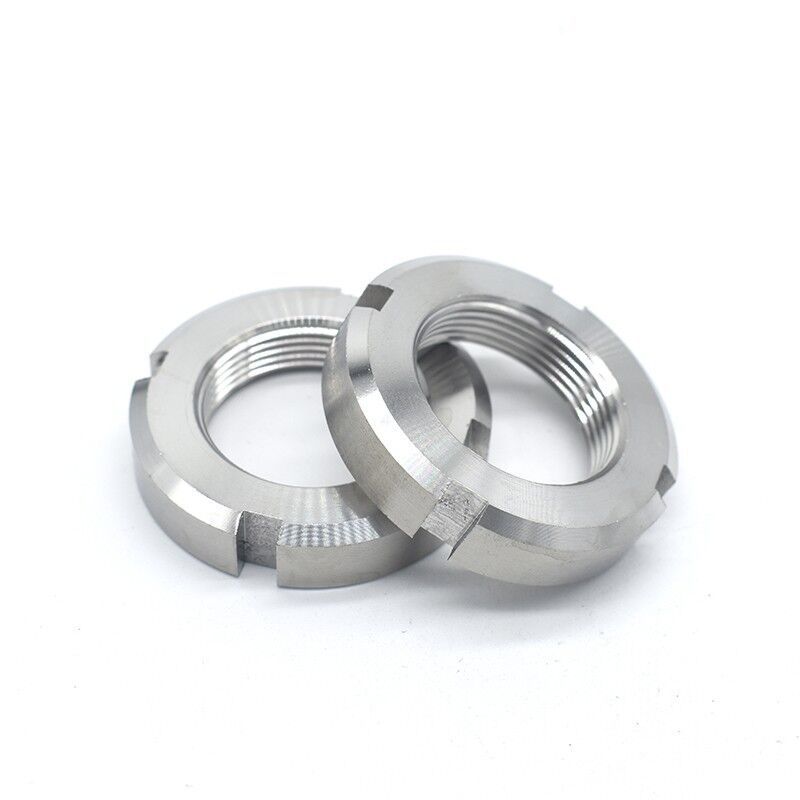

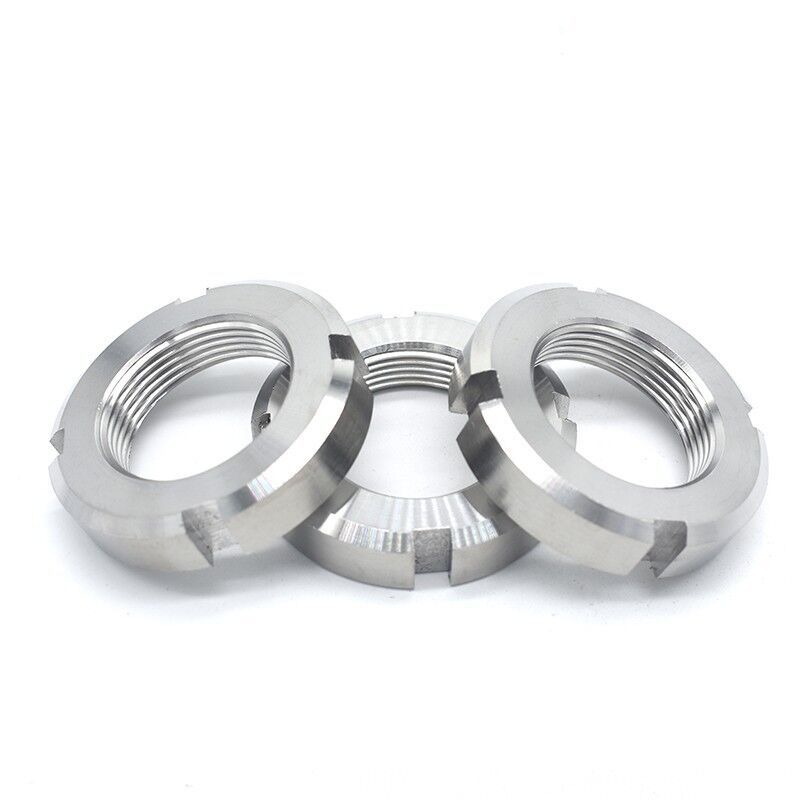

Precision Notched Slotted Locking Round Nut

Precision Notched Slotted Locking Round Nut is the preferred securing solution specified by engineers for applications where safety is paramount and vibration-induced loosening cannot be tolerated. For a reliable partner in the fastener industry that prioritizes quality and service, professionals worldwide trust Xiaoguo®’s factory.

Send Inquiry

Product Description

For the shells of electronic devices and server racks, these perforated Precision Notched Slotted Locking Round Nut can fix the panels and components that need maintenance. They can be reused and will not loosen due to vibration. Their circular and low-profile design means they won't get tangled with anything.

For the electronics industry, our prices are very competitive. Orders over $5000 can enjoy free delivery service. We usually prefer to use a non-conductive black coating. We complete the goods delivery quickly through regional centers.

These nuts are placed in anti-static safe and re-sealable bags to protect them. Before shipment, we will check their size and the thickness of the coating.

Product Details

In the railway industry, these Precision Notched Slotted Locking Round Nut are of great significance for the bogies and track fixation systems. It needs to withstand strong vibration and repeated loads and meet the strength requirements for long-term use. These nuts are manufactured according to strict standards, and their precise slot dimensions are designed to facilitate safe wiring.

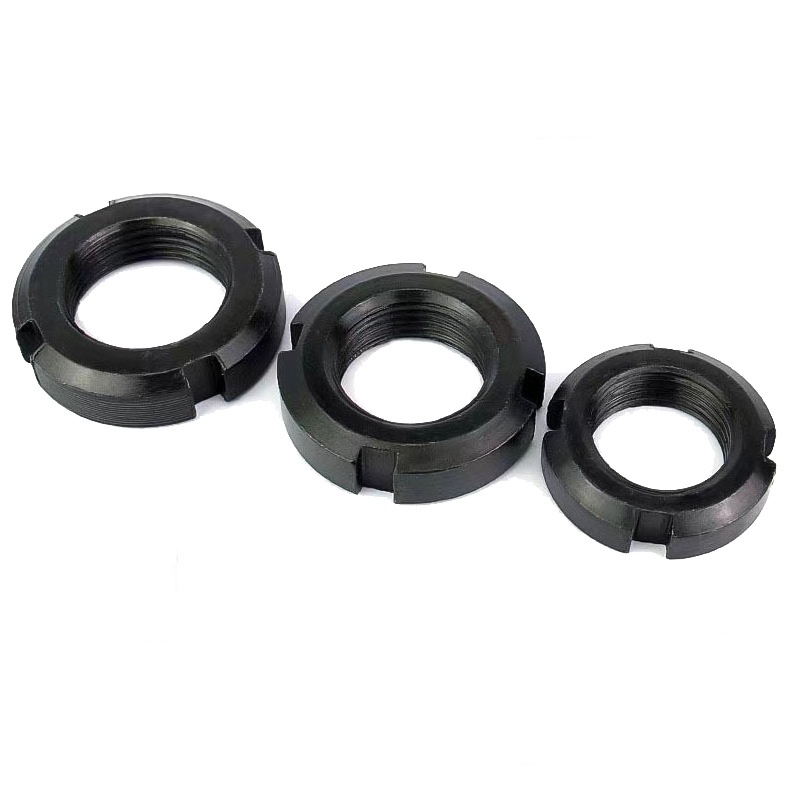

We offer competitive prices for government and railway orders, and discounts for bulk purchases. They are usually subjected to black oxide treatment. We work closely with professional logistics teams to not only ensure the timely delivery of goods, but also support real-time tracking of the entire logistics chain.

It has passed the IRIS international railway industry standard certification. Each batch of products can be fully traced and the quality has a clear basis.

Anti-corrosion treatment

We offer various surface treatments for our Precision Notched Slotted Locking Round Nut products including zinc plating, hot-dip galvanizing, and geomet coating. These treatments significantly enhance the corrosion resistance of each Precision-Notched Slotted locking round nut, extending its service life in challenging environments. The appropriate coating for your Precision-Notched Slotted locking round nut depends on your specific operational conditions.

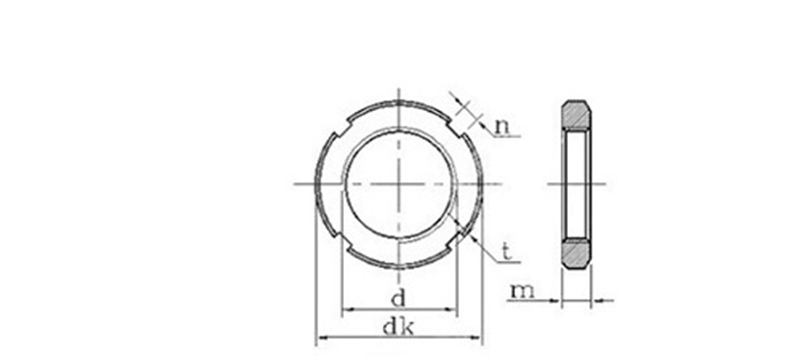

Precision Notched Slotted Locking Round Nut

d*P	dk	m	n		t		1000 kg	d*P	dk	m	n		t		1000 ≈kg
			nax	nin	max	min					max	min	nax	min
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95						342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
