Positively Locking Slotted Locking Round Nut

Positively Locking Slotted Locking Round Nut is frequently used in critical assemblies such as wheel bearings, kingpins, and other high-vibration machinery, and clients in the automotive and construction sectors consistently choose Xiaoguo® as their trusted supplier for its dependable supply and consistent quality.

Send Inquiry

Product Description

Industrial machinery extensively uses these Positively Locking Slotted Locking Round Nut - especially in high-vibration environments such as gearboxes, presses, and conveying systems. The circular shape of these nuts makes them easy to operate, and the locking components inside can prevent them from loosening when there is dynamic load.

Our cost-effective production method enables us to offer very favorable prices. If you purchase more than 25,000 pieces in bulk, you can enjoy a 7% discount. The common standard black oxide treatment helps it resist corrosion. We utilize a global distribution network to deliver quickly and economically.

Each Positively-Locking Slotted locking round nut undergoes strict torque-to-failure and vibration tests and complies with ISO 9001 certification.

Product Details

For agricultural equipment such as tractors and combine harvesters, Positively Locking Slotted Locking Round Nut are essential components. They ensure that bolts in parts like drive shafts and cutting assemblies are securely fastened - even when these components are exposed to dust and moisture. These nuts are well-made and most have a thicker zinc coating for better protection.

We ship directly from the factory, so our prices are very reasonable. We also offer seasonal promotions for orders over 15,000 pieces. They are usually chrome-plated in silver or yellow. By ground transportation, the freight is reasonable and the packaging is sturdy and waterproof - perfect for outdoor storage.

FAQ

Q:What materials are typically used in manufacturing slotted locking round nuts?

A:Our Positively Locking Slotted Locking Round Nut products are commonly manufactured from carbon steel, stainless steel (304/316), or brass. The material selection for each Positively-Locking Slotted locking round nut depends on application requirements concerning strength, corrosion resistance, and environmental conditions. We can recommend the optimal material for your specific Positively-Locking Slotted locking round nut needs to ensure long-term performance and reliability.

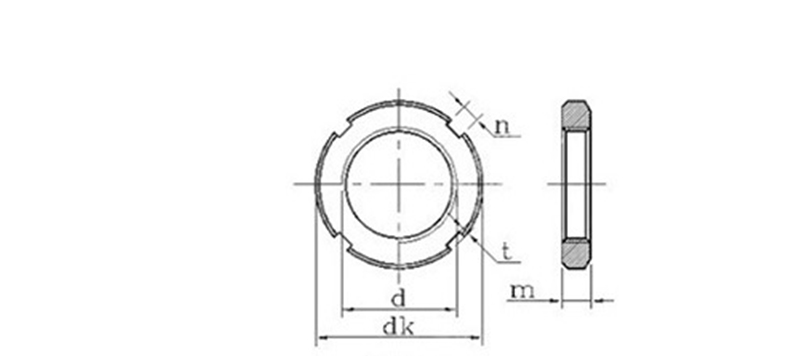

Positively Locking Slotted Locking Round Nut

d*P	dk	m	n		t		1000 kg	d*P	dk	m	n		t		1000 ≈kg
			nax	nin	max	min					max	min	nax	min
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95						342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
