M10 Forged Eye Bolt

Xiaoguo® M10 Forged Eye Bolt is designed for safe and stable connection tasks. It resists deformation under normal working loads. Wholesale M10 Forged Eye Bolt is offered at competitive prices for bulk buyers. Many sizes are in stock and can be shipped quickly for urgent orders.

Send Inquiry

Product Description

China factory Xiaoguo® supplies this M10 Forged Eye Bolt made for easy use. You don’t need professional skills or special tools to install it correctly. First, check the mounting surface to make sure it is flat and clean. Remove dust or dirt to avoid affecting how well it fastens. Line up the threaded end with the pre-drilled M10 hole, then turn the bolt clockwise by hand until it is initially tight. Make sure it does not shake or lean to one side.

After hand-tightening, use a standard wrench to finish tightening, but do not over-tighten. Too much force can damage the threads or bend the bolt. Before using it for lifting or fixing, check again that the bolt is tight and secure. Always use it within the marked load limit and never go beyond the safe working load to avoid accidents.

To remove it, use a wrench to turn the bolt counterclockwise to loosen it, then finish unscrewing it by hand and take it out gently. When not in use, store it in a dry place to keep it in good condition for later use.

Product surface treatment

This M10 Forged Eye Bolt uses a practical surface treatment that focuses on protection and function, with no extra decorative features. The surface is smoothed to remove sharp edges, burrs, and rough marks left from forging and processing. This makes handling and installation safer, so users won’t scratch their hands or damage ropes and chains.

We use normal anti-corrosion treatment, mainly electro galvanizing or hot dip galvanizing based on customer needs. This forms a thin, even protective layer over the whole bolt. The layer helps resist daily rust and mild corrosion from moisture and outdoor use, and works well in most indoor and regular outdoor environments.

The coating covers the bolt and threads evenly, with no uncovered or uneven areas. It has a natural matte look, no bright or decorative finishes. The coating does not easily peel or fade during normal use. It is also easy to clean – just wipe dust and dirt off with a dry cloth to keep its protective function.

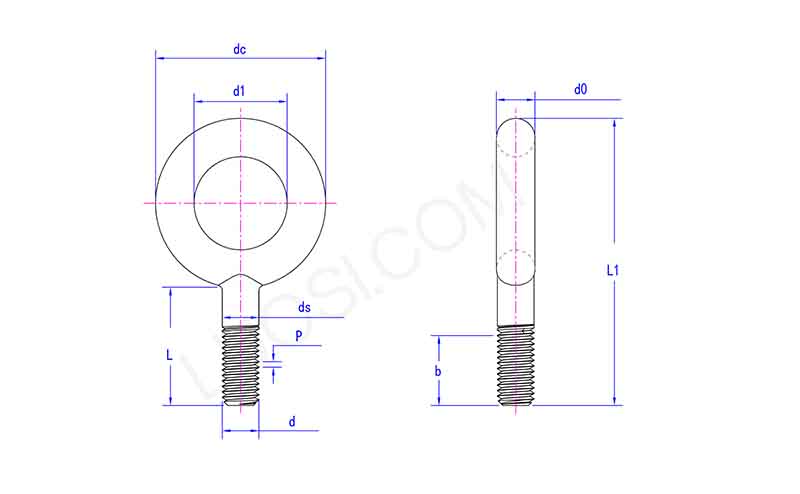

M10 Forged Eye Bolt

Mon	7/16	1/2	9/16	5/8	3/4	7/8	1	1-1/8	1-1/4	1-1/2	1-3/4
P	14	13	12	11	10	9	8	7	7	6	5
ds min	0.44	0.5	0.56	0.62	0.75	0.88	1	1.12	1.25	1.5	1.75
ds max	0.47	0.53	0.59	0.66	0.78	0.91	1.06	1.19	1.34	1.59	1.84
d1 min	1	1.12	1.19	1.31	1.44	1.56	1.69	1.94	2.12	2.44	2.75
d1 max	1.12	1.25	1.31	1.44	1.56	1.69	1.81	2.06	2.25	2.56	3
de	1.81	2.12	2.25	2.56	2.81	3.19	3.56	4.06	4.44	5.19	6
do min	0.34	0.44	0.47	0.56	0.62	0.75	0.88	1	1.09	1.31	1.5
do max	0.41	0.5	0.53	0.62	0.69	0.81	0.94	1.06	1.16	1.38	1.62
L1 min	3.06	3.5	3.75	4.19	4.69	5.31	5.94	6.69	7.31	8.56	9.5
L1 max	3.4	3.88	4.12	4.56	5.06	5.69	6.31	7.06	7.69	8.94	10.12
Lmin	1.38	1.5	1.62	1.75	2	2.25	2.5	2.75	3	3.5	3.75
L max	1.5	1.62	1.75	1.88	2.12	2.38	2.62	2.88	3.12	3.62	3.88
b min	1	1.12	1.25	1.38	1.62	1.81	2.06	2.31	2.5	3	3.19

Q&A session

Were the M10 Forged Eye Bolt subject to strict quality inspections before shipment?

Every undergoes full inspection during production, including dimensional accuracy, thread integrity, tensile testing, and surface quality. Only products that pass all quality control procedures are packed and delivered. Test reports and material certificates are available upon request, giving customers full confidence for industrial and commercial applications.
