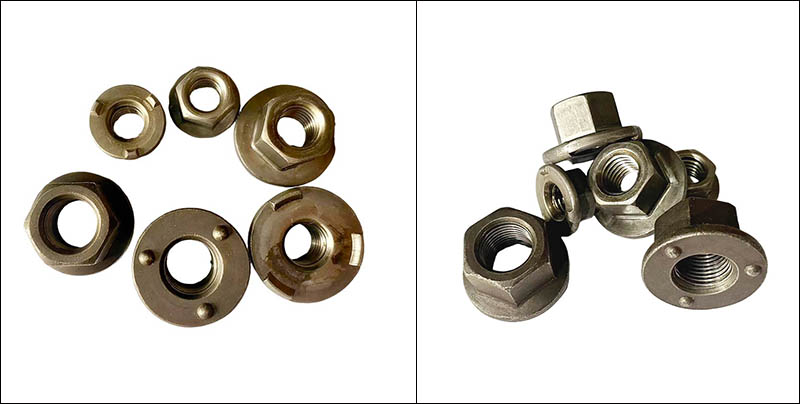

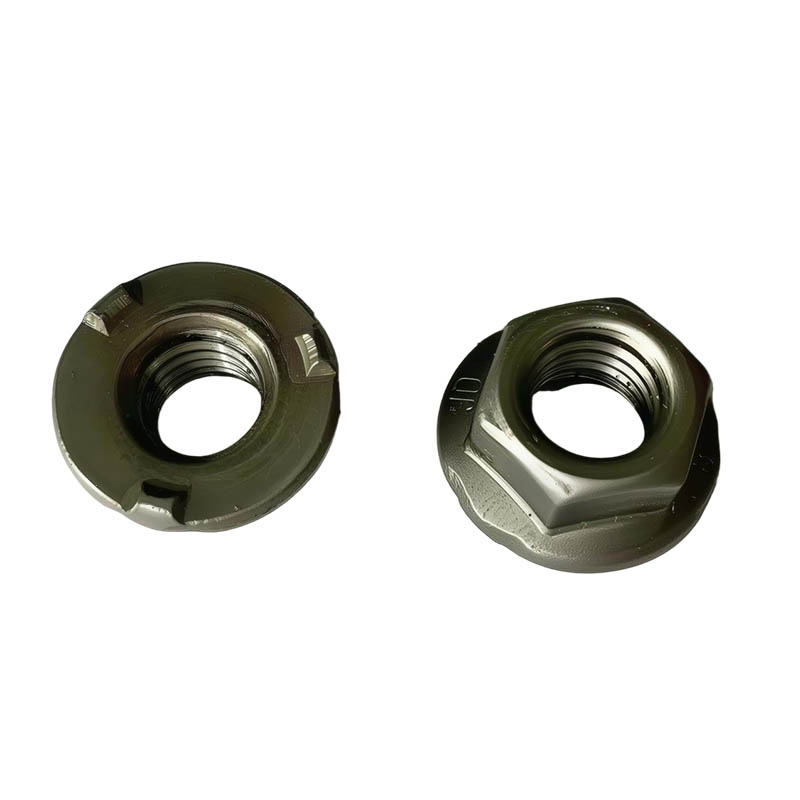

Hex Flange Weld Nut

Immediately purchase the China supplier Xiaoguo® Hex flange weld nut, featuring a three-point protrusion design at the bottom, which perfectly matches the workpiece. The welding is firm and accurate, requiring no adjustment. The unique design increases the assembly efficiency by 50%.

Send Inquiry

Product Description

The differences from ordinary hexagonal welding nuts

The core difference between the two lies in the flange base. The Hex flange weld nut is an enhanced version of the ordinary hexagonal welding nut, featuring an integrated flange disc. This difference results in various distinctions in structure, performance, and application. Here is the detailed comparison:

Project	Hex flange weld nut	Ordinary Hexagonal Welding Nut
Bottom shape	With enlarged flange	Flat or flangeless
Pressure-bearing capacity	directly replace with flat washer	Additional flat washer is required
Welded bumps	3	3
Applicable scenarios	Cars, household appliances, thin plate structures	Thick plates, general welding
Cost	Slightly higher (with an additional flange forming)	Slightly lower

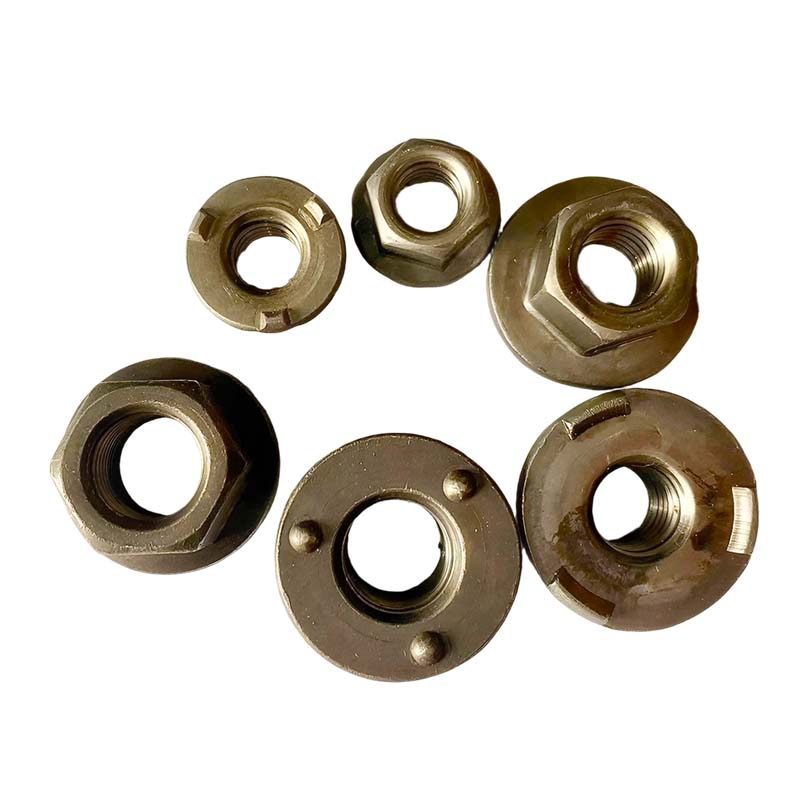

Hex Flange Weld Nut

Sample service

For the sample of Hex flange weld nut, We have clear regulations to follow.

（1）For potential customers who need to test the performance grade of the nuts in the early stage, we usually provide a certain number of free samples (such as 5-10 pieces), but the shipping cost is usually borne by the customers.

（2）For customized products or high-value products, a sample fee will be charged. And the sample fee will be deducted from the payment when the formal order is issued later.

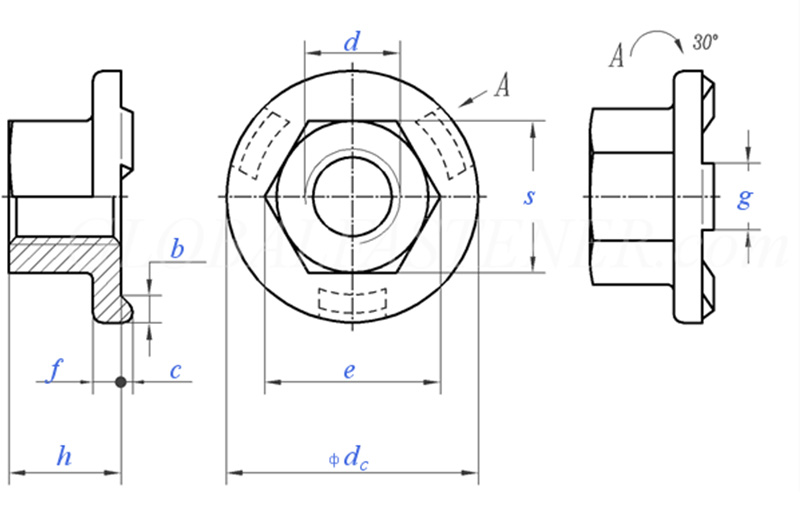

Hex Flange Weld Nut

Thread Sized			M5	M6	M8	M10	M12	M14	M16
d			M5	M6	M8	M10	M12	M14	M16
P	Coarse Thread Pitch		0.8	1	1.25	1.5	1.75	2	2
P	Fine Thread Pitch		/	/	/	/	15	1.5	1.5
C	Nominal Size	±0.1	0.8	0.8	1	1.2	1.2	1.2	1.2
dc	max		15.5	18.5	22.5	26.5	30.5	33.5	36.5
dc	min		14.5	17.5	21.5	25.5	29.5	32.5	35.5
e	min		8.2	10.6	13.6	16.9	19.4	22.4	25
e	max		8.5	10.9	14	17.5	20	23	26
f	Nominal Size	±0.25	1.7	2	2.5	3	3	4	4
g	Nominal Size	±0.1	4	5	6	7	8	8	8
m	min		4.7	6.64	9.64	12.57	14.57	16.16	18.66
m	max		5	7	10	13	15	17	19.5
S	max		8	10	13	16	18	21	24
S	min		7.64	9.64	12.57	15.57	17.57	20.48	23.48
b	max=nominal size		2.2	2.7	2.7	2.95	3.2	3.45	3.7
b	min		2	2.5	2.5	2.75	3	3.25	3.5
per 1000 unitsskg			/	5.7	12.2	21.8	29.4	45.8	/

FAQ

（1）Can this kind of Hex flange weld nut be used in an automated production line (robotic welding)?

It is highly suitable. The three-point raised platform design enables precise positioning, and combined with the vibrating tray for automatic feeding, it is suitable for the robot spot welding workstation.

（2）How do you ensure that the height of the solder bumps on each batch of products is consistent?

We use the cold heading forming process, and the tolerance of the bump height is controlled within ±0.05 mm.

（3）What is the minimum order quantity (MOQ)? Is the sample free of charge?

For standard specifications, the MOQ is 1,000 pieces; for non-standard customization, it is 500 pieces. We offer free samples (2-5 pieces per specification), and the customer only needs to bear the international shipping cost.

（4）How long is the delivery period usually?

Standard products are available for shipment within 3 to 7 days; customized products take 15 to 25 working days. Bulk orders can be expedited upon negotiation.
