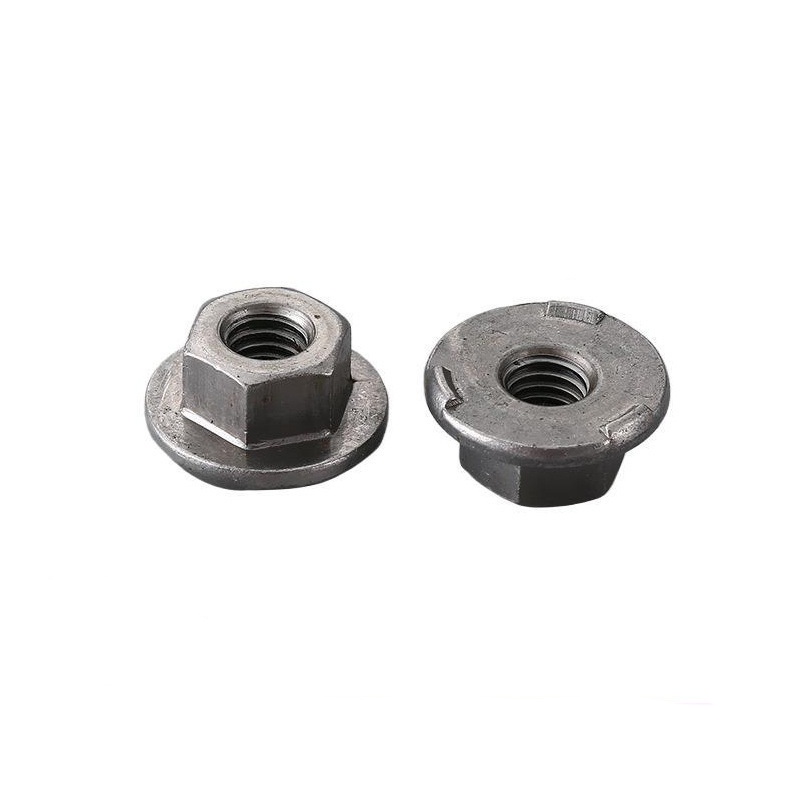

Flanged Weld Hex Nut

China supplier Xiaoguo® Flanged weld hex nut, with serrated flange surface, increases contact area, enables welding bonding of the workpiece, and has a much better anti-loosening performance in vibrating working environments compared to ordinary nuts and washers. Discounts are available for bulk orders.

Send Inquiry

Product Description

Common surface treatments

The following are the common surface treatment schemes and their characteristics for Flanged weld hex nut, which can help you make a choice based on the application scenario.

（1）Electro-galvanizing

Color: Blue and white / Yellow / Black

Salt spray test: 48 - 120

Cost: Low

Welding impact: Zinc layer volatilizes during welding, generating smoke. Adequate ventilation is required; Local zinc removal can improve the situation.

Recommended application: Indoor sheet metal, household appliances, general industry.

（2）Hot-dip galvanizing

Color:Silver-gray thick coating

Salt spray test: 500+

Cost: Medium

Welding impact: The coating is quite thick. Before welding, the welding area needs to be polished; otherwise, there will be a lot of spatter.

Recommended application:Outdoor cabinets, building steel structures, power facilities

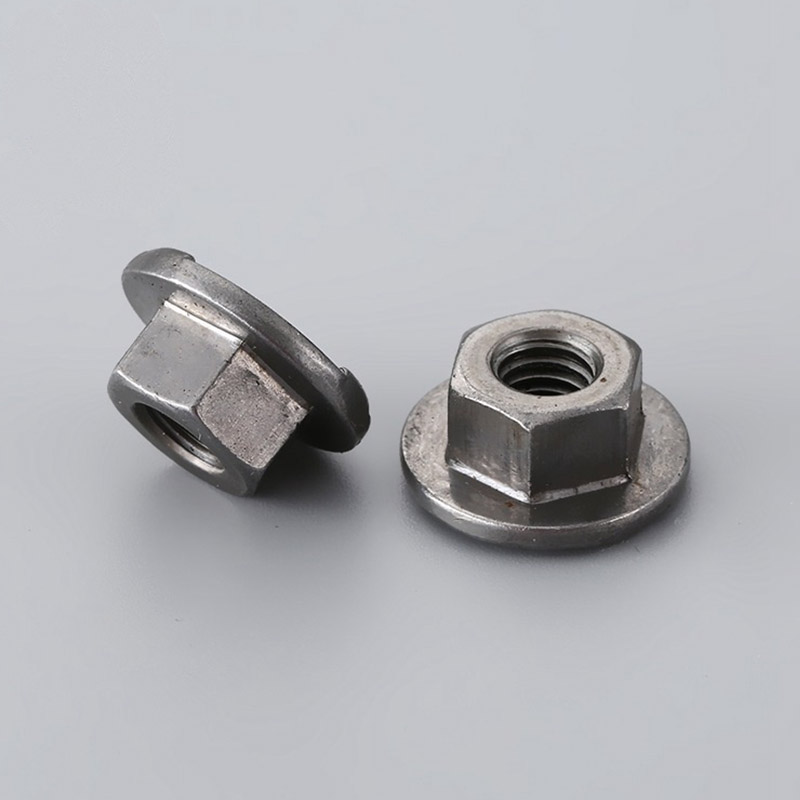

Flanged Weld Hex Nut

（3）Dacromet/Zinc-Aluminum Coating

Color:Matte Silver Gray

Salt spray test: 1000+

Cost: Medium

Welding impact: No hydrogen embrittlement, minimal coating influence during welding, can be directly welded (less smoke)

Recommended application:Automobile chassis, high anti-corrosion requirements, high strength grade

（4）Zinc-nickel alloy

Color:Silver-gray/black

Salt spray test: 500 - 1000

Cost: High

Welding impact: The coating is dense and has better welding performance than ordinary galvanization.

Recommended application: It is recommended that the Flanged weld hex nut be used in applications with high demand, such as the engine compartment of automobiles and environments with high humidity.

（5）Turn black

Color:black

Salt spray test: 12 - 24

Cost: Extremely low

Welding impact:Almost no preservative effect, no impact on welding

Recommended application:Extremely dry indoor environment, temporary rust prevention

（6）Stainless steel in its natural color

Color:Metal in its original color

Salt spray test:Superior (it is the material that determines)

Cost:High

Welding impact:Excellent welding performance, no need for additional coating

Recommended application:Marine, chemical, food, medical fields

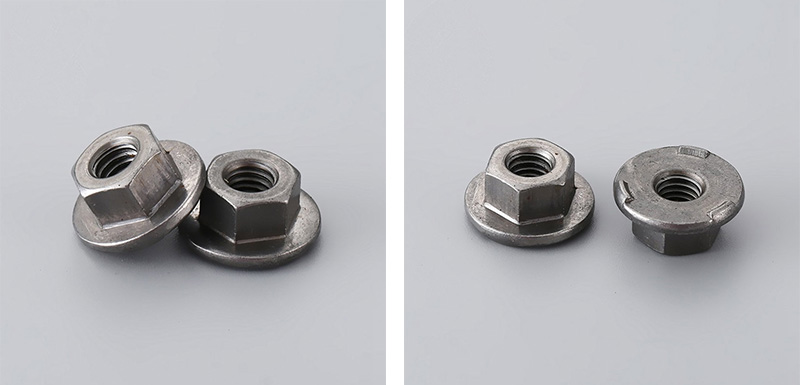

Flanged Weld Hex Nut

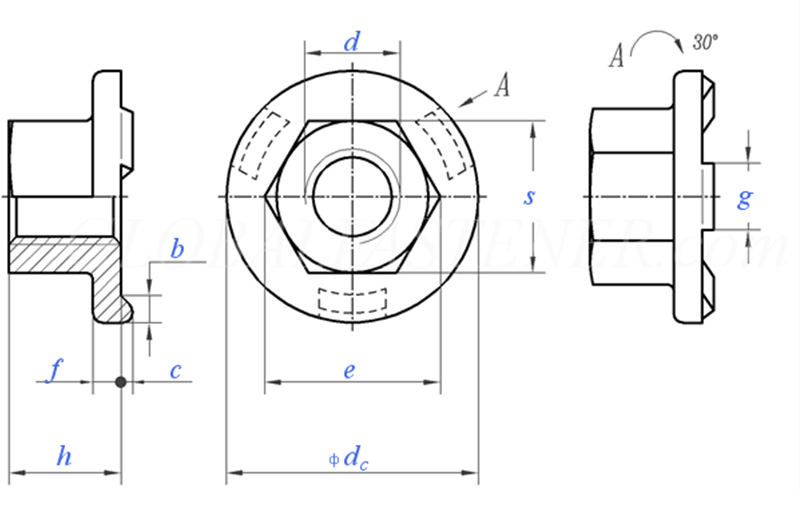

Thread Sized			M5	M6	M8	M10	M12	M14	M16
d			M5	M6	M8	M10	M12	M14	M16
P	Coarse Thread Pitch		0.8	1	1.25	1.5	1.75	2	2
P	Fine Thread Pitch		/	/	/	/	15	1.5	1.5
C	Nominal Size	±0.1	0.8	0.8	1	1.2	1.2	1.2	1.2
dc	max		15.5	18.5	22.5	26.5	30.5	33.5	36.5
dc	min		14.5	17.5	21.5	25.5	29.5	32.5	35.5
e	min		8.2	10.6	13.6	16.9	19.4	22.4	25
e	max		8.5	10.9	14	17.5	20	23	26
f	Nominal Size	±0.25	1.7	2	2.5	3	3	4	4
g	Nominal Size	±0.1	4	5	6	7	8	8	8
m	min		4.7	6.64	9.64	12.57	14.57	16.16	18.66
m	max		5	7	10	13	15	17	19.5
S	max		8	10	13	16	18	21	24
S	min		7.64	9.64	12.57	15.57	17.57	20.48	23.48
b	max=nominal size		2.2	2.7	2.7	2.95	3.2	3.45	3.7
b	min		2	2.5	2.5	2.75	3	3.25	3.5
per 1000 unitsskg			/	5.7	12.2	21.8	29.4	45.8	/

Suggestions for Surface Treatment Selection

When choosing the surface treatment for Flanged weld hex nut, it is necessary to comprehensively consider four key factors: the usage environment, strength grade, welding process, and cost budget.

（1）Clearly specify the usage environment

Indoor wiring is galvanized, outdoor wiring is hot-dip galvanized or dactron-coated, and for highly corrosive environments, stainless steel is used.

（2）Confirm the strength grade of the Flanged weld hex nut

10.9 grade and above: Disable electro-galvanizing. Only Dacromet or stainless steel can be selected.

（3）Evaluate the compatibility of welding processes

Hot-dip galvanizing must be ground; Dacromet, zinc-nickel alloy can be welded directly.

（4）Balance the cost budget

On the premise of meeting the first three conditions, choose the most economical option.
