Fine Pitch Hexagon Bolts with Flange

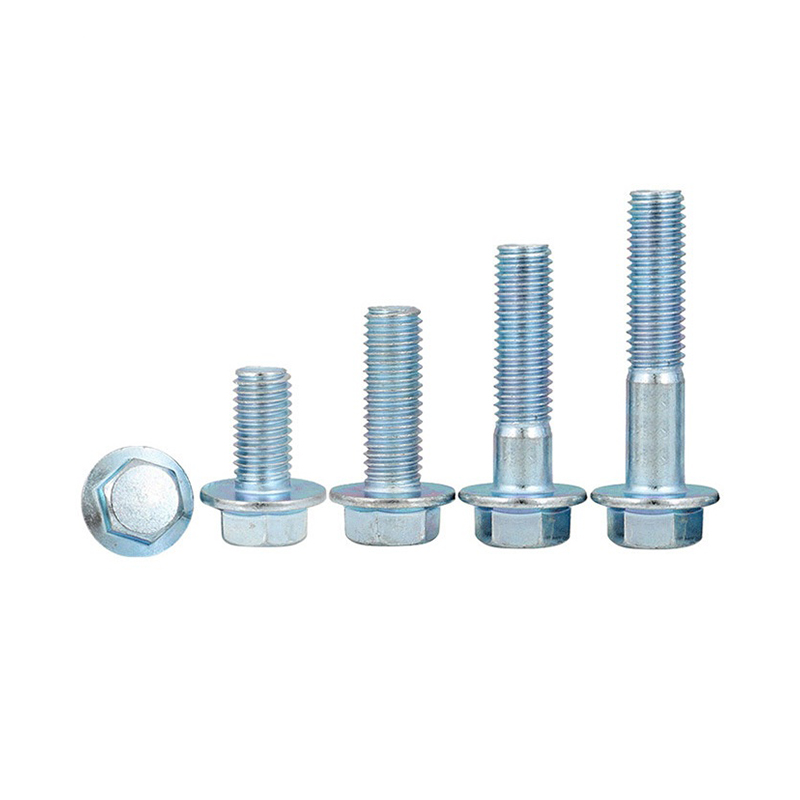

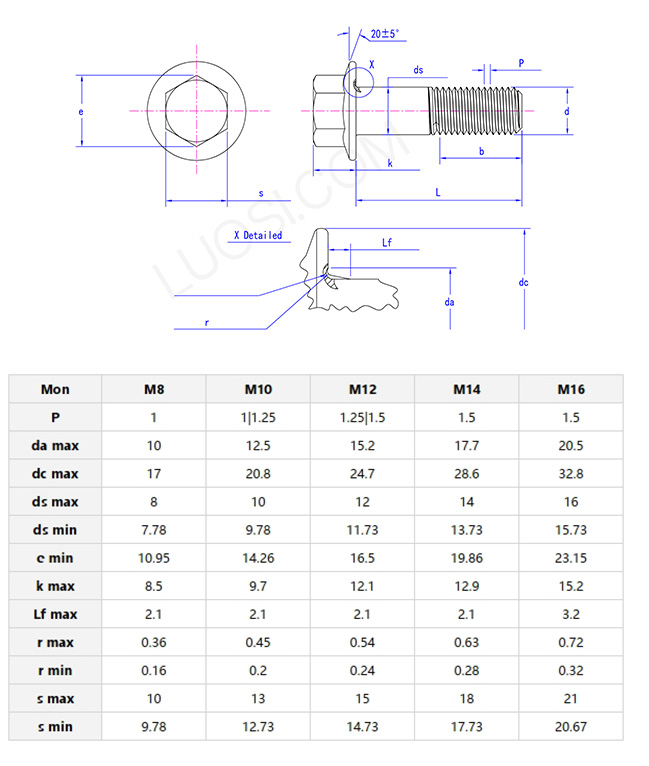

Fine pitch hexagon bolts with flange come in various sizes and specs for different jobs. Standard sizes run from M6 to M24 in diameter and 20mm to 200mm in length. Threads can be coarse or fine, customizable based on your needs. Fine pitch hexagon bolts with flange meet standards like DIN 6921 and ISO 4162, which make sure the bolts fit properly and work as intended.Xiaoguo® manufacturer offer customization services, with the option of customizing flange diameter or thread length.

Product details

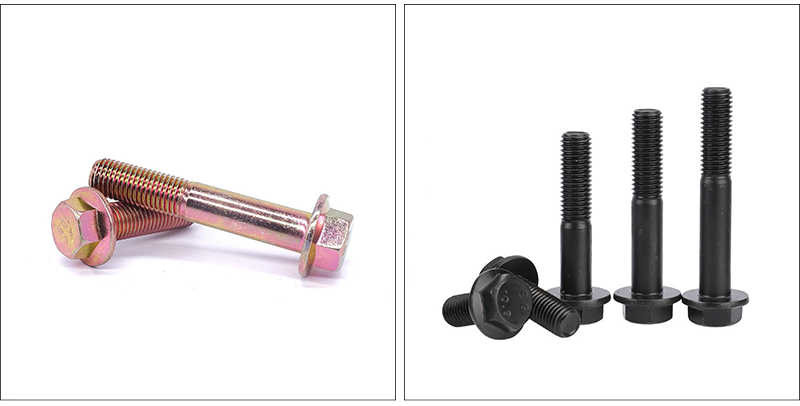

The fine pitch hexagon bolts with flange are galvanized for added rust resistance for indoor use, while hot-dip galvanizing offers heavy-duty protection in marine settings. Dacromet coatings resist corrosion well and work best for cars or offshore equipment. For high-heat situations, they use a black oxide finish. Different coating materials can be selected according to different needs, which can be customized to reduce friction and increase protection to cope with harsh environments and tasks.

‌

FAQ

Q: Do you provide technical support for the installation of fine pitch hexagon bolts with flange?

A: Yes, we provide detailed installation guidelines, including torque specifications and tool recommendations to optimize the performance of hexagon flange bolts.Our engineers assist with joint design analysis, material selection and corrosion prevention strategies. Live training or video consultation can be used for complex applications. In addition, we provide CAD models and loading diagrams to seamlessly integrate fine pitch hexagon bolts with flange into your assembly process.

Market Distribution

Product Material

The material selection of Fine Pitch Hexagon Bolts with Flange is based on practical application scenarios and load-bearing requirements. Carbon steel is the most commonly used material, which is cost-effective and has sufficient strength for general industrial and construction use, such as fixing mechanical components or assembling metal frames. For environments that require basic corrosion resistance, galvanized carbon steel is adopted— a zinc layer is coated on the surface to prevent rust, suitable for outdoor or slightly humid areas. Stainless steel is another common option, mainly 304 and 316 grades. 304 stainless steel is applicable to food processing equipment or indoor environments with high hygiene requirements, while 316 stainless steel has stronger corrosion resistance, suitable for coastal areas with salt spray or chemical processing environments. Some special application scenarios may use alloy steel, which has higher tensile strength and is used for heavy-duty mechanical equipment that bears large loads. All materials meet industrial standards to ensure the bolts do not deform or break easily during use.

Product transportation costs

The transportation cost of Fine Pitch Hexagon Bolts with Flange is mainly determined by several factors. First is the order quantity—large batches of bolts are usually shipped by sea or land freight, which is more cost-effective per unit; small batches or urgent orders may need air freight, which is more expensive. Second is the destination—shipping to nearby regions or cities has lower transportation fees, while long-distance or international shipping will increase costs due to additional charges like customs fees or long-distance transportation costs. The packaging weight also affects the cost, as the bolts themselves are metal and have a certain weight; the total weight of the goods (bolts plus packaging) is an important basis for freight calculation. In addition, the choice of logistics company will also lead to slight differences in transportation costs. Many suppliers offer freight calculation services based on the customer's specific order information; some may waive transportation fees for large enough orders. It is recommended to confirm the specific transportation cost with the supplier before placing the order to avoid unexpected expenses.
