Eye Bolt Right Hand Thread

Xiaoguo® Eye bolt right hand thread made in China is designed for reliable lifting and fixing applications. It features stable structure and standard right-hand threads for easy installation. We are a professional China eye bolt right hand thread factory with strict quality control. Each piece is tested for normal load performance, suitable for construction, machinery and daily industrial use.

Send Inquiry

Product Description

Eye bolt right hand thread is a common hardware part used for everyday connecting, fixing, and lifting jobs in many industries and equipment applications. It is mainly used to create a strong connection point on machines, structures, frames, or workpieces. People often install it on equipment housings, mechanical bases, construction parts, shipping containers, and various fixed structures.

With standard right-hand threads, it can be easily installed and removed using regular hand tools. It stays tight during normal use and does not easily come loose. It works well with chains, wire ropes, slings, and other lifting accessories.

This type of eye bolt is good for light to medium‑duty jobs, such as equipment installation, machine maintenance, construction lifting, warehouse handling, and outdoor projects. Users only need to install it properly and use it within the marked safe load limit.

It is made for daily practical use and can work in indoor workshops, outdoor construction sites, production lines, and transportation situations. It helps users complete connecting and lifting work safely and efficiently without complicated steps.

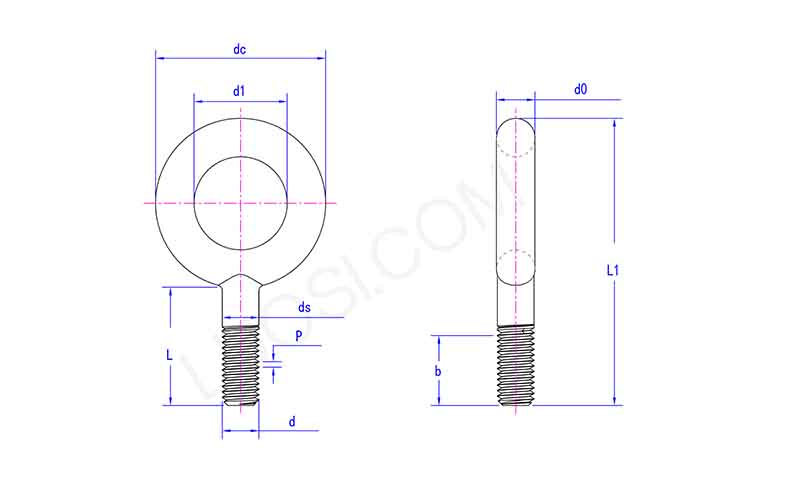

Eye Bolt Right Hand Thread

Mon	7/16	1/2	9/16	5/8	3/4	7/8	1	1-1/8	1-1/4	1-1/2	1-3/4
P	14	13	12	11	10	9	8	7	7	6	5
ds min	0.44	0.5	0.56	0.62	0.75	0.88	1	1.12	1.25	1.5	1.75
ds max	0.47	0.53	0.59	0.66	0.78	0.91	1.06	1.19	1.34	1.59	1.84
d1 min	1	1.12	1.19	1.31	1.44	1.56	1.69	1.94	2.12	2.44	2.75
d1 max	1.12	1.25	1.31	1.44	1.56	1.69	1.81	2.06	2.25	2.56	3
de	1.81	2.12	2.25	2.56	2.81	3.19	3.56	4.06	4.44	5.19	6
do min	0.34	0.44	0.47	0.56	0.62	0.75	0.88	1	1.09	1.31	1.5
do max	0.41	0.5	0.53	0.62	0.69	0.81	0.94	1.06	1.16	1.38	1.62
L1 min	3.06	3.5	3.75	4.19	4.69	5.31	5.94	6.69	7.31	8.56	9.5
L1 max	3.4	3.88	4.12	4.56	5.06	5.69	6.31	7.06	7.69	8.94	10.12
Lmin	1.38	1.5	1.62	1.75	2	2.25	2.5	2.75	3	3.5	3.75
L max	1.5	1.62	1.75	1.88	2.12	2.38	2.62	2.88	3.12	3.62	3.88
b min	1	1.12	1.25	1.38	1.62	1.81	2.06	2.31	2.5	3	3.19

Product Material

This Eye bolt right hand thread is made of forged carbon steel. It offers steady strength and normal load capacity for everyday industrial use. The forging process makes the internal structure denser, lowers the chance of internal flaws, and keeps performance stable under normal working loads. The material has good toughness and does not easily crack or bend under normal tension and pressure. Raw materials are checked before production to meet basic strength requirements.

The surface uses electro galvanizing or hot dip galvanizing to prevent normal rust and corrosion, especially in humid or outdoor environments. The thread section is made to standard accuracy so it fits smoothly and installs securely. The material works steadily at normal working temperatures and can be used for a long time without clear performance drop. It does not use brittle or low‑quality materials and can meet daily needs in most common industrial situations.

All materials and processing focus on practical function and basic safety, providing reliable quality for normal working conditions.

Q&A session

What materials are this Eye bolt right hand thread made of? And how much working load can it withstand?

It is typically forged from high-strength carbon steel or alloy steel, with strict heat treatment to ensure toughness and durability. Each piece is tested for load capacity according to international standards, providing stable and safe performance for lifting, rigging, and industrial assembly. Suitable for heavy-duty applications in machinery, construction, and shipping.
