Elongated Eye Bolt

Xiaoguo® Elongated Eye Bolt features standard threads and durable structure for long-term use. It fits well with chains, ropes and other rigging accessories. We provide quality Elongated Eye Bolt with complete specifications. Customers can get free samples to check material, workmanship and actual installation effect before placing orders.

Send Inquiry

Product Description

Elongated Eye Bolt uses standard industrial sizes and grades for everyday lifting and connecting jobs. There are no non-standard or unusual parameters. We provide a complete range of common metric and imperial sizes to meet different installation and load needs. These include typical thread diameters, eye lengths, and load ratings used in construction, machinery, and shipping.

Each size is clearly marked on the product, including thread size, working load limit, and grade information, so users can easily choose the right type. All sizes follow common international rigging standards, so they work well with chains, slings, and other accessories. Dimensional tolerance is controlled within a normal range to avoid fitting or installation problems.

We keep most standard sizes in stock for quick delivery. We also support custom size changes for special projects within a reasonable range, without affecting core structural strength and safety performance.

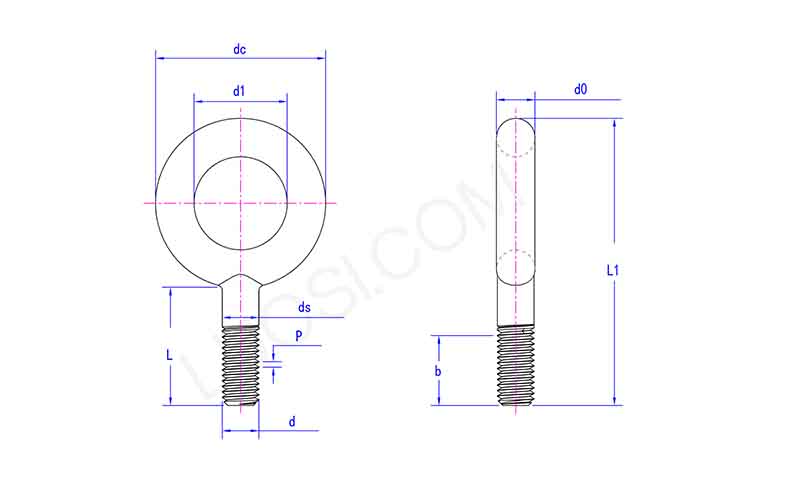

Elongated Eye Bolt

Mon	7/16	1/2	9/16	5/8	3/4	7/8	1	1-1/8	1-1/4	1-1/2	1-3/4
P	14	13	12	11	10	9	8	7	7	6	5
ds min	0.44	0.5	0.56	0.62	0.75	0.88	1	1.12	1.25	1.5	1.75
ds max	0.47	0.53	0.59	0.66	0.78	0.91	1.06	1.19	1.34	1.59	1.84
d1 min	1	1.12	1.19	1.31	1.44	1.56	1.69	1.94	2.12	2.44	2.75
d1 max	1.12	1.25	1.31	1.44	1.56	1.69	1.81	2.06	2.25	2.56	3
de	1.81	2.12	2.25	2.56	2.81	3.19	3.56	4.06	4.44	5.19	6
do min	0.34	0.44	0.47	0.56	0.62	0.75	0.88	1	1.09	1.31	1.5
do max	0.41	0.5	0.53	0.62	0.69	0.81	0.94	1.06	1.16	1.38	1.62
L1 min	3.06	3.5	3.75	4.19	4.69	5.31	5.94	6.69	7.31	8.56	9.5
L1 max	3.4	3.88	4.12	4.56	5.06	5.69	6.31	7.06	7.69	8.94	10.12
Lmin	1.38	1.5	1.62	1.75	2	2.25	2.5	2.75	3	3.5	3.75
L max	1.5	1.62	1.75	1.88	2.12	2.38	2.62	2.88	3.12	3.62	3.88
b min	1	1.12	1.25	1.38	1.62	1.81	2.06	2.31	2.5	3	3.19

Product Quality Assurance

We run strict quality control during the whole production process to make sure this Elongated Eye Bolt works steadily in daily use. Every unit is checked before shipping, including raw material tests, size measurements, thread accuracy checks, and load tests. This helps us filter out any defective products.

The product is made using standard forging and processing steps. We avoid issues like weak points, rough threads, or structural defects that could create safety risks. We keep full production and inspection records for each batch, so we can trace quality quickly if needed.

When used correctly and within its normal working life, the product stays stable and does not deform or break easily. If any quality issues caused by manufacturing defects appear during the warranty period, we offer after-sales support such as free replacement or partial refund. This does not cover damage from wrong use, overloading, or improper storage.

We focus on real quality control instead of just nice packaging. Our goal is to provide qualified products that meet basic safety needs for daily work.

Elongated Eye Bolt

Q&A session

What materials and surface treatments are available?

It is commonly Elongated Eye Bolt from carbon steel or alloy steel for high load capacity and toughness. Popular surface options include zinc plating, hot-dip galvanizing, and black oxide to enhance corrosion resistance. These finishes ensure stable performance in indoor, outdoor, and mildly humid industrial environments while extending service life.
