Carriage Bolts Screws

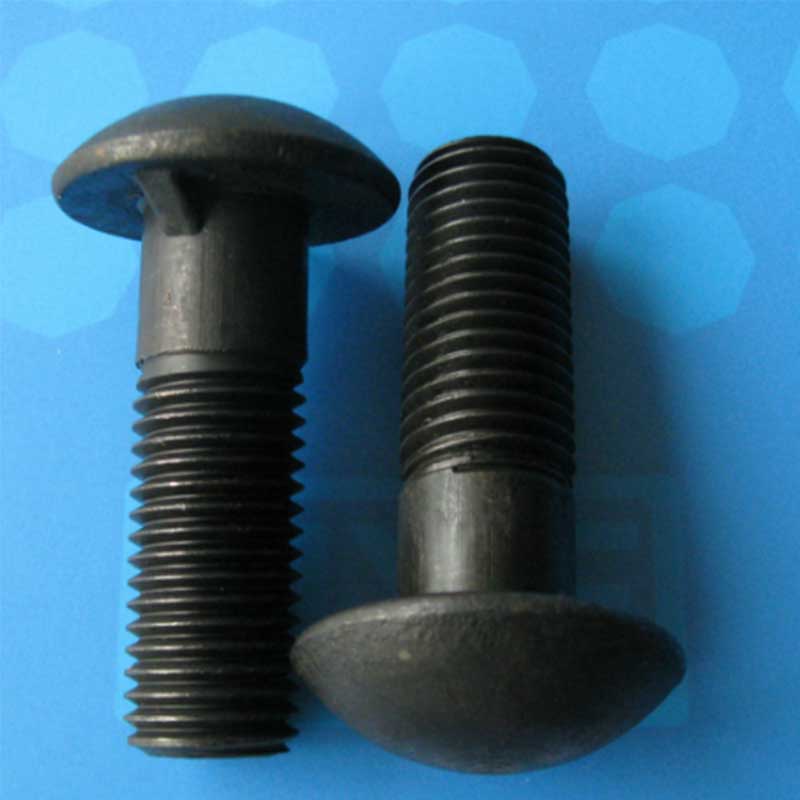

The head of the Carriage Bolts Screws are like an upside-down plate, with a relatively large area, which can disperse the pressure. There is a protruding tenon under the disk head, which can be inserted into the pre-cut groove or hole, enabling the bolt to be positioned more accurately.

Product details

The bolt is used to fix the electrical appliance casing. When installing the distribution box or control panel onto the metal plate, bolts that do not rotate by themselves are required. You can choose the bolt. The tenon will be embedded in the thin shell metal, firmly locking the bolt head when you tighten the nut. It can ensure that the shell is firmly fixed and prevent vibration.

The bolt can fix the bracket to thin metal. They can suspend signs, shelves or brackets for small machines on thin steel studs or panels. The tenon is like tiny teeth, immediately grasping the thin metal surface when pressure is applied. There is no need to use thick materials or special inserts to fix the bolt heads.

The Carriage Bolts Screws are used to fix the inspection panel and cover plate. The bolt inspection panels on machinery or pipelines need to be kept tight but also easy to disassemble. They can solve these problems. It ensures that the panel remains firmly sealed during operation and is easy to maintain at the same time.

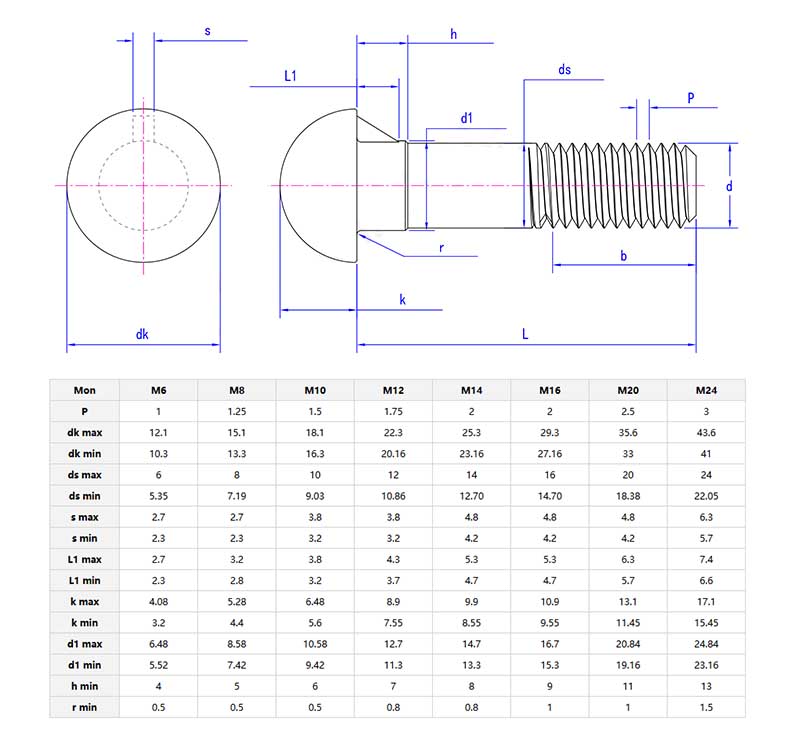

 Product parameters

Product selling point

The Carriage Bolts Screws are easy to install and is firmly and stably fixed. When installing, align the tenon with the groove or hole on the material. Once inserted, the bolt will not rotate, making it very convenient for workers to operate and speeding up the installation process. Moreover, the disc has a large area. After being tightened, it can fix things firmly and is not easy to loosen. Whether it is fixed metal, wood or plastic, they can all be chosen.
