Bolts for slot

Bolts for slot are specially designed for the connection of components with slot structures. The shapes of the bolts vary according to the type of slot, and common ones include square heads, T-shaped heads, etc. The screw part has threads and can be tightened in conjunction with the nut.

Product details

They are often used in the machinery manufacturing industry. For example, in the production of automated production line equipment, many components are equipped with T-slots. When workers install components such as sensors and guide rails, they just insert the bolt into the T-slot, adjust the position and tighten the nuts. There is no need to redesign the drilling position. The equipment can be assembled quickly and it is also convenient to replace parts later.

Bolts for slots are also often used for installing industrial equipment. For instance, when installing large ventilation duct supports, there are usually long strip-shaped grooves on the supports. Put them into the groove, and the pipeline can be fixed. Moreover, the position of the bolts in the groove can be adjusted according to the actual position of the pipeline, without the need for precise drilling. The installation efficiency is high, and it can also ensure that the support and the pipeline are firmly connected, which can withstand the vibration during the operation of the equipment.

Product Features

Bolts for slot can fit perfectly with the slot. Special shapes such as square heads and T-shaped heads can just be clamped in the groove to prevent the bolts from rotating. The square-head bolt is clamped in the square groove. When the nut is tightened, the square head is clamped against the groove wall, and the bolt will not rotate along. The installation is particularly worry-free and can also ensure the connection strength.

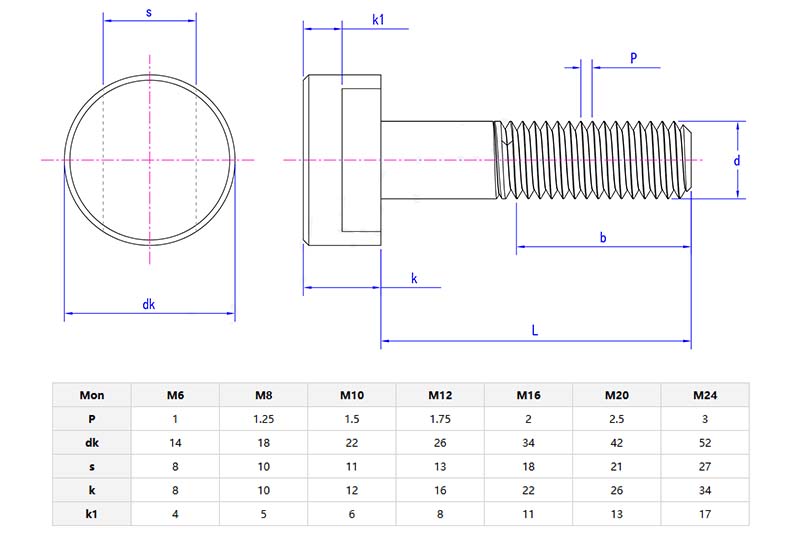

Product parameters
