Threaded U Bolt

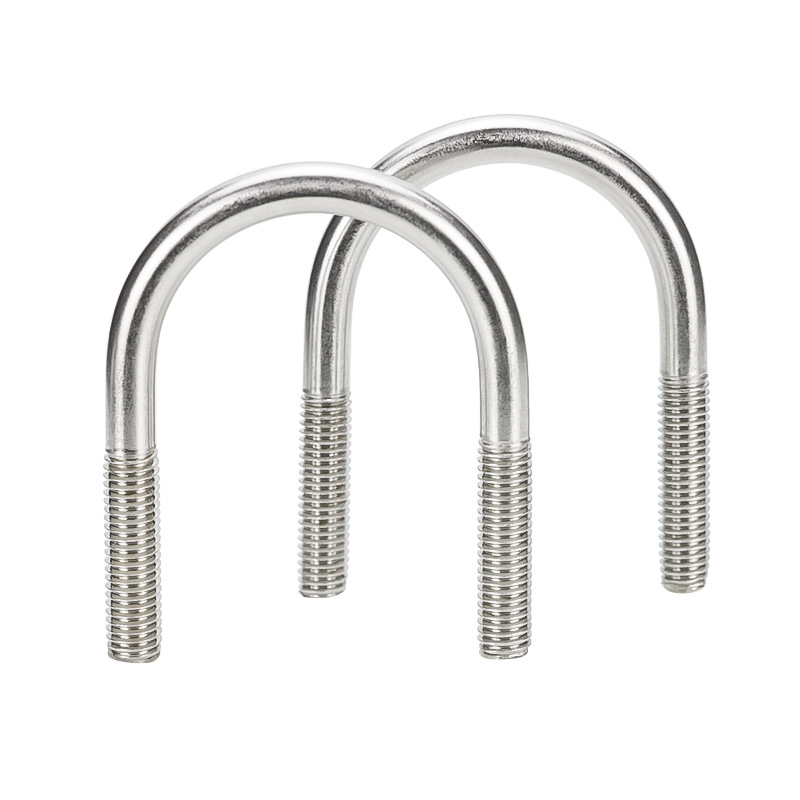

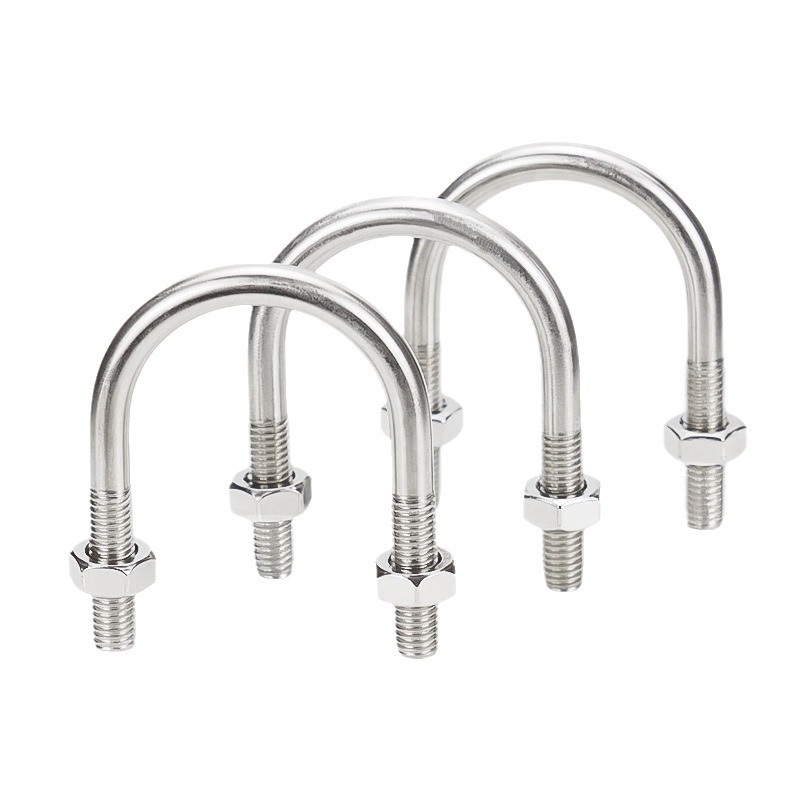

Threaded U bolt (also known as horseback bolt or U-shaped bolt) is a type of fastener shaped like the letter "U". Both ends are machined with threads and can be used in conjunction with nuts and washers. The U-shaped curved design enables it to "span" and enclose tubular or sheet-like objects, and by applying the threads at both ends, it can achieve the effect that ordinary bolts cannot accomplish.

Parameters

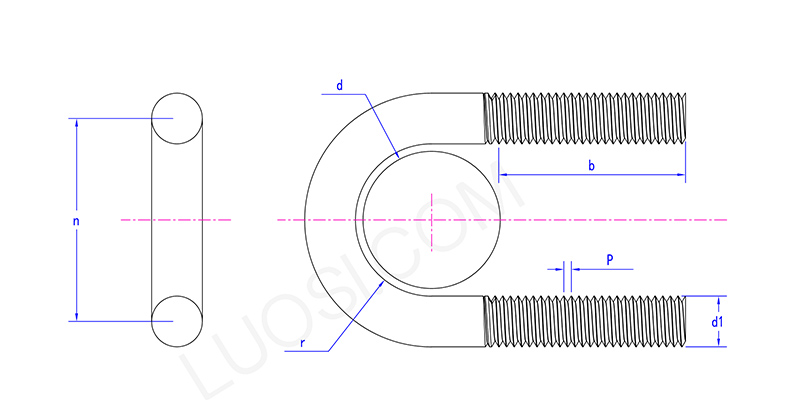

Core parameters

The core specification parameters of the threaded U bolt are:

Thread diameter (d): Covers various specifications from M6 to M64, capable of meeting all your size requirements ranging from small water pipes to large industrial pipes.

Bending radius (R): Determines the size of the U-shaped arc, can be customized as needed.

Leg length (L): The distance from the center of the arc to the end of the thread, which can be customized as needed.

Opening width (a): The inner gap width between the two arms of the U shape, which can be customized as needed.

Thread length (m): It can be divided into full thread and non-full thread. The thread is also classified as coarse thread and fine thread, and can be adjusted according to specific requirements.

Application fields

The threaded U bolt is widely used in the following industries and scenarios due to its unique U-shaped structure and strong locking capability:

（1）Automobiles

In automotive manufacturing and maintenance, it is an indispensable key fastener. It is mainly used to fix the connection between the leaf spring and the axle, ensuring the stability of the suspension system under heavy loads and intense vibrations. Additionally, it is also used to fix the exhaust system, muffler, chassis pipe fittings, and various brackets. It is usually made of alloy steel of grade 10.9 or 12.9 (such as 40Cr, 42CrMo), and is combined with Dacromet or blackening surface treatment.

（2）Pipeline Engineering

In the installation of drainage, HVAC, fire protection systems and industrial pipelines, the water pipes, gas pipes, steam pipes or cable trays are firmly fixed on the supports, hangers or walls by using the "brace" method.

（3）Construction Engineering and Steel Structures

In the field of building structures, U-type bolts are frequently used for steel structure connections, embedded parts fixation, and seismic support systems. For instance, in curtain wall trusses, equipment foundations, scaffolding, and pipe galleries, U-type bolts can connect crossbeams, columns or pipes to the main structure.

（4）Ships and Marine Engineering

In environments with severe corrosion such as shipbuilding, dock facilities and offshore platforms, these materials are widely used for fixing deck pipes, cable supports, equipment bases and railings. Due to prolonged exposure to seawater or salt fog, it is necessary to select materials with excellent corrosion resistance, such as 304 stainless steel, 316L stainless steel or duplex stainless steel.
