Anchor U Bolt

China supplier Xiaoguo® anchor U bolt come in a wide range of specifications, covering everything from DN10 (2mm) to DN600 (24 inches), meeting all the full-size requirements. Whether it's small water pipe and electrical wiring or large industrial pipes, you can choose cost-effective anchor U-bolt.

Send Inquiry

Product Description

Product definition and core function

anchor U bolt, also known as ground anchor U bolt or pre-installed U-bolt, is a type of anchoring fastener shaped like the letter "U". It has long threads at both ends and is usually pre-installed in the concrete foundation or passed through the steel structure base. It is combined with washers and nuts to firmly fix equipment, columns, pipe supports, etc. on the concrete or steel structure foundation.

Core function

It is a key anchor component used in fields such as construction, bridges, power, and petrochemicals for achieving rigid connections between equipment and the foundation. Its main function is to safely transfer the loads (tension, pressure, shear force, bending moment) of the upper structure to the concrete foundation or the ground. Unlike ordinary expansion bolts, this product is installed in a pre-buried manner. It is placed inside the formwork before the concrete is poured and forms an irreversible permanent anchor after the concrete sets.

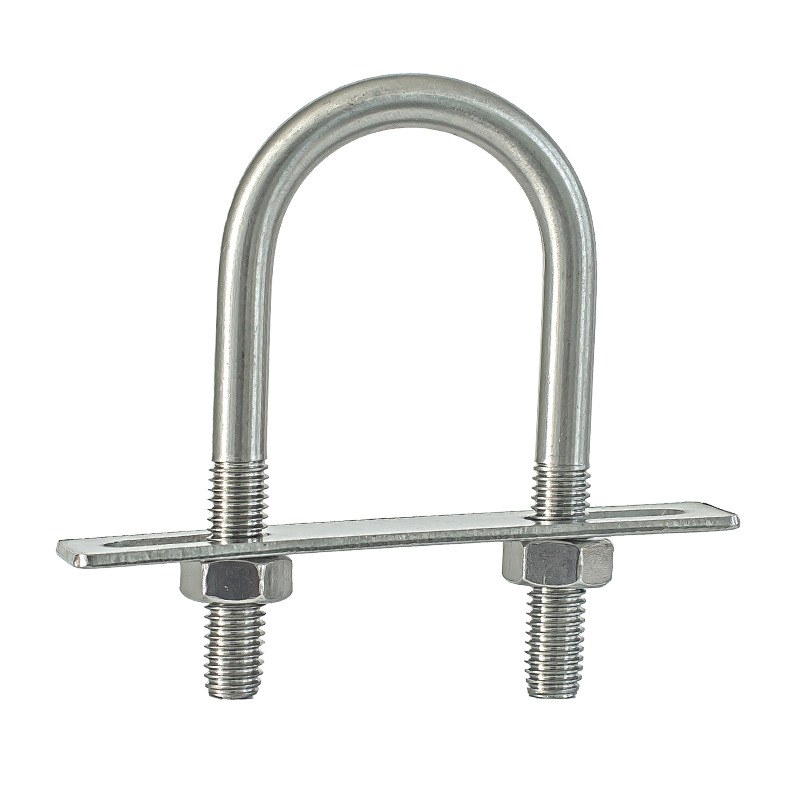

Anchor U Bolt

Common materials

Below is the list of common materials for anchor U bolt that we have summarized for you, which is convenient for you to browse.

Material type	Grade	Performance level achievable	Core features	Applicable scenarios
Carbon steel	Q235 / A36	Grade 4.8	Relatively economical and versatile, easy to process	General construction, light equipment foundations, railing fixation
Carbon steel	45# / 1045	Grade 8.8	Moderate strength, good comprehensive performance	Industrial equipment foundations, power towers, pipe supports
Alloy steel	40Cr / 5140	10.9 grade	High strength, fatigue resistance	Heavy equipment, dynamic load foundation, wind power tower
Alloy steel	35CrMo / 4135	10.9/12.9 grade	Resistant to low temperature, anti-rust	Petrochemical industry, high-pressure vessel foundation, cold regions
Stainless steel	304 / A2	A2-70	General corrosion resistance	For food factories, water treatment, general outdoor applications
Stainless steel	316 / A4	A4-70 / A4-80	Excellent resistance to seawater and chemicals	For offshore platforms, coastal power plants, chemical plants, swimming pool equipment
Hot-dip galvanized carbon steel	Q235 / 45# + HDG	4.8/8.8 grade	Outdoor long-lasting rust prevention	bridges, highway guardrails, communication towers, photovoltaic supports

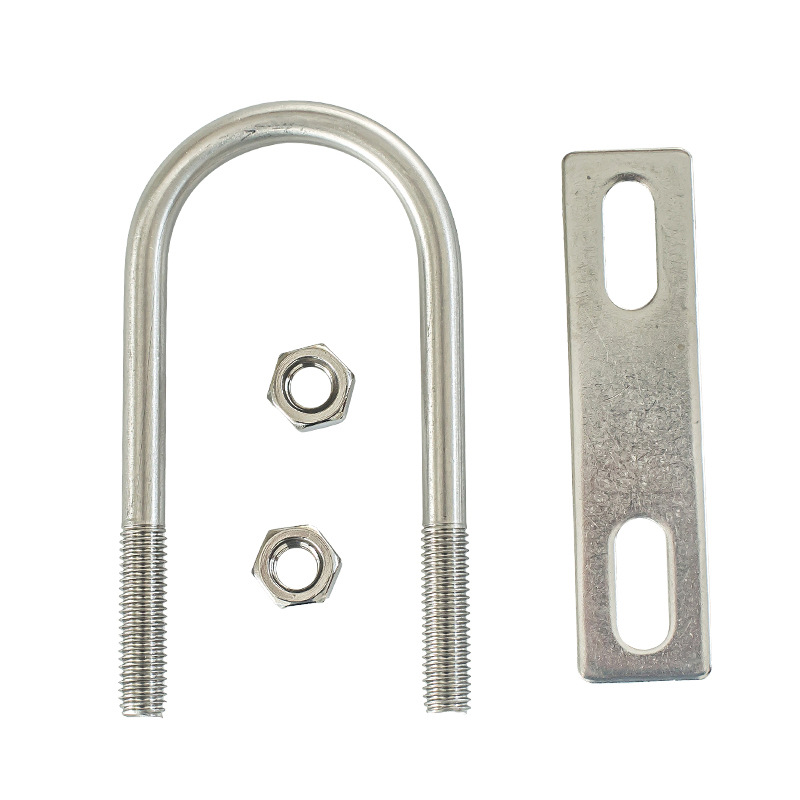

Anchor U Bolt

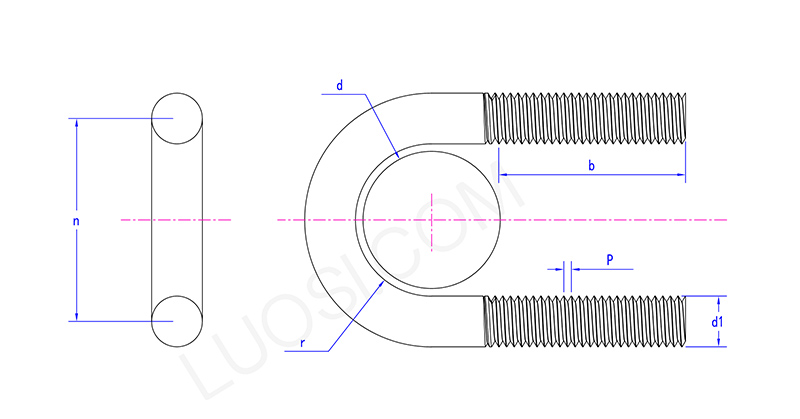

Mon	Φ60	Φ76	Φ83	Φ89	Φ102	Φ108	Φ114	Φ133	Φ140	Φ159	Φ165
d1	M12	M12	M12	M12	M16	M16	M16	M16	M16	M16	M16
n	76	92	98	104	122	128	134	154	160	180	186
P	1.75	1.75	1.75	1.75	2	2	2	2	2	2	2
r	32	40	43	46	53	56	59	69	72	82	85

Product type

Depending on the installation method and shape, the anchor U bolt is mainly divided into the following types:

Plain Embedded U-bolt: Embedded directly in the concrete, with the threaded end protruding above the base surface. It is used for fixing steel columns and equipment bases. It is the most common form.

U-bolt with Hook Ends: The threaded ends are additionally bent by 90° or 180°.

Flat-bottom U-bolt: The bottom of the U-shaped part is straight, not arc-shaped. It is used to fix components with a square cross-section or for installations that need to be in close contact with the bottom surface of the steel plate.

Through-bolt Type U-bolt: This U-shaped bolt passes through the reserved holes in the steel structure base, with both ends exposed. It is combined with upper and lower nuts to achieve clamping, and is commonly used for detachable connections or scenarios requiring height adjustment.

Unequal Leg U-bolt: Legs of different lengths. Used for installation on inclined foundation surfaces or in special structures requiring asymmetric fixation.
