Precision Engineered Two Fold Self Locking Washers

When installed under a bolt or nut head, Precision-Engineered Two-fold self-locking washers actively generate and maintain a high preload force to secure the joint. Customers worldwide trust Xiaoguo®’s manufacturers for consistent product quality and on-time delivery.

Model:DIN 25201

Send Inquiry

Product Description

Putting Precision-Engineered Two-fold self-locking washers in right is key for them to work well. They should always go straight under the part that spins—the nut or the bolt head. The side with little ridges faces down against the joint surface, and the side with the tabs or sloped parts faces up towards the fastener.Tighten the parts to the recommended torque to bend the tab to the appropriate degree so that it can be locked firmly. Also, remember that if the two-fold self-locking washers are installed in the wrong position, it will be the same as not being installed at all and will not play any fixing role.

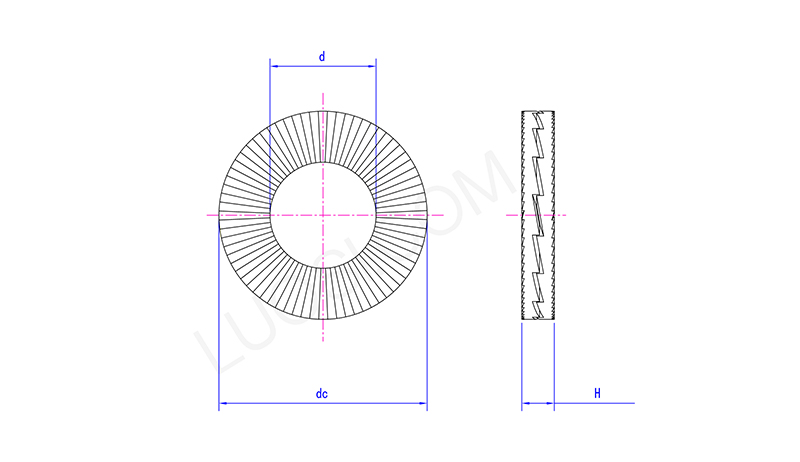

Mon	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22
d max	4.5	5.5	6.6	8.8	10.9	13.2	15.4	17.2	19.7	21.6	23.6
d min	4.3	5.3	6.3	8.6	10.5	12.8	15	16.8	19.3	21.2	23.2
dc max	9.3	11.1	13.8	16.9	21.3	25.7	31	31	34.8	39.3	42.3
dc min	8.7	10.5	13.2	16.3	20.7	25.1	30.4	30.4	34.2	38.7	41.7
H max	2.05	2.05	2.75	2.75	2.75	3.65	3.65	3.65	3.65	3.65	4.85
H min	1.55	1.55	2.25	2.25	2.25	3.15	3.15	3.15	3.15	3.15	4.35

Product Details:

Some Precision-Engineered Two-fold self-locking washers—especially stainless steel ones or those used in light-duty jobs—might still lock things after being taken apart once. But usually, they’re made to be used just once. When you first put them in, the tabs get bent out of shape a bit, and that makes their springy force weaker if you try to reuse them. For the most reliable hold in important connections, it’s a good idea to put a new two-fold self-locking washer in after taking the old one out.

Are your Precision-Engineered Two-fold self-locking washers certified to any international quality or industry-specific standards?

Yeah, we’ve got the ISO 9001:2015 certification for making these Precision-Engineered Two-fold self-locking washers. We also have the right material certifications, like 3.1 for steel. The DIN 25201 standard covers how we test their performance, but we also meet the specs for car making, machinery, and construction. That means our locking washers have quality and traceability that people recognize worldwide.
