Double Fold Wedge Lock Washer

The Double Fold Wedge Lock Washer produced by Xiaoguo® factory features a double-layer structure and a dual-locking design. Compared with traditional conventional anti-loosening fasteners, their performance is much superior.

Send Inquiry

Product Description

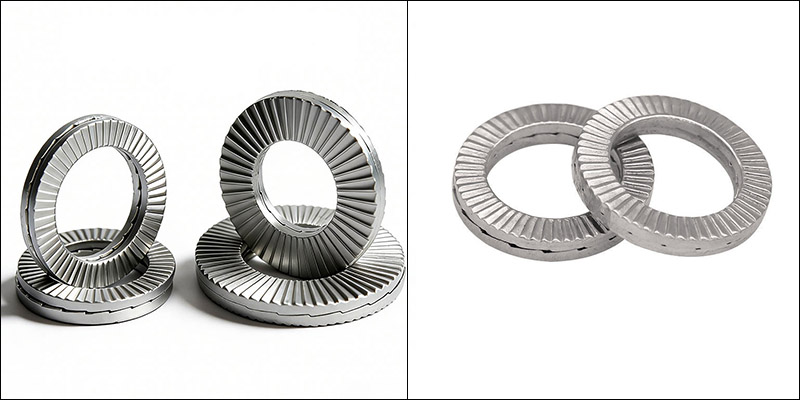

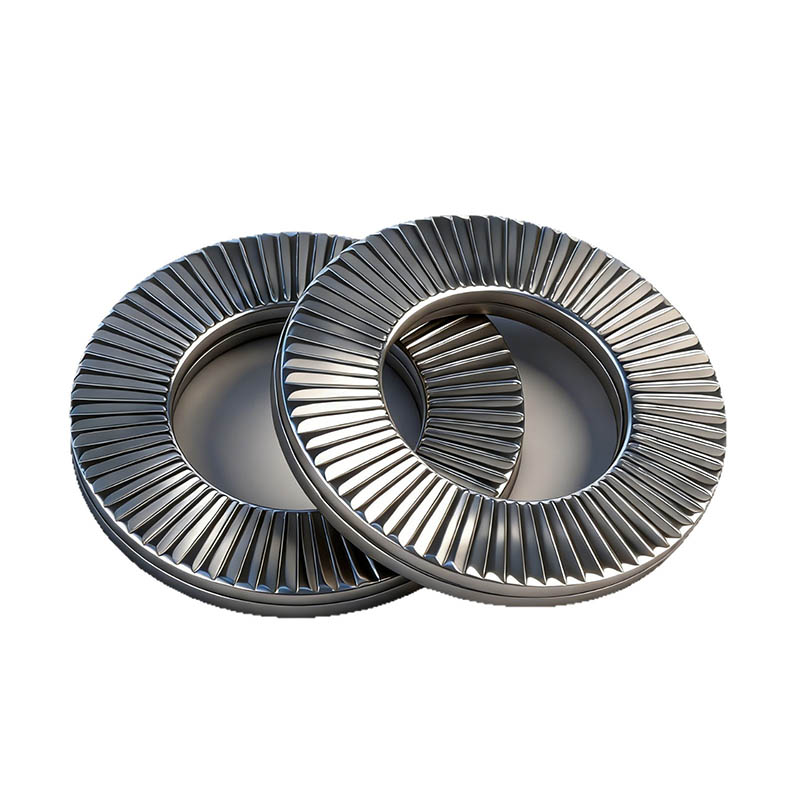

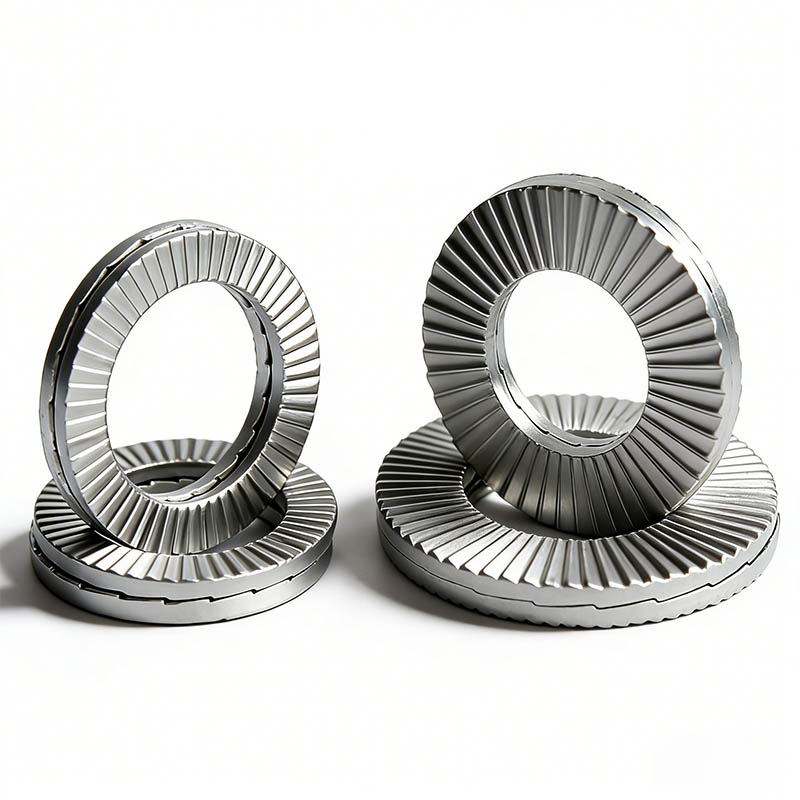

The Double Fold Wedge Lock Washer is an advanced and high-performance anti-loosening fastener. It utilizes a unique wedge locking technology instead of the traditional method that relies on friction. It adopts a double-layer folded wedge structure, with serrated surfaces on both sides. In fact, it is composed of a pair (two pieces) of exactly identical washers. The unique structure of each washer is the key to achieving its outstanding anti-loosening performance.

Structural Characteristics

The core structural feature of the Double Fold Wedge Lock Washer lies in its design of two gaskets, with the inner and outer surfaces respectively performing the functions of locking and fixation.

（1）Paired Washer

Two identical gaskets are combined to form a set. This design breaks away from the traditional single-piece form. The two gaskets are pre-assembled during production to form a locking system. This symmetrical design can be reused and will not damage the gaskets when disassembled.

（2）Radial raised surface

These raised patterns are the side of the Double Fold Wedge Lock Washer that comes into direct contact with the head of the nut, bolt, or the surface of the connected component. The surface features fine radial raised patterns/denticles. They mainly serve to fix the Double Fold Wedge Lock Washer to this surface, "locking" it in place and preventing any sliding between them.

（3）Triangular tooth surface

This is the mating surface on the opposite side of the gasket. The inner surface is composed of wedge-shaped tooth surfaces evenly distributed along the circumference, resembling a cam and is also known as "wedge-shaped teeth" or "inclined tooth surfaces".

Double Fold Wedge Lock Washer

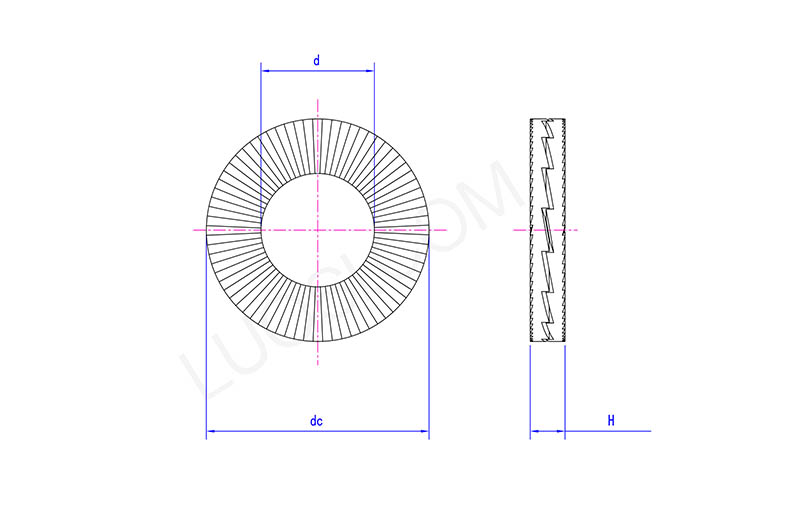

Mon	φ20	φ22	φ24	φ27	φ30	φ33	φ36	φ39	φ42	φ45	φ48
d max	21.6	23.6	25.5	28.6	31.6	34.6	37.6	40.6	43.5	46.7	50.1
d min	21.2	23.2	25.1	28.2	31.2	34.2	37.2	40.2	43	46.2	49.6
dc max	30.9	34.7	39.2	42.3	47.3	48.8	55.3	58.8	63.3	70	75
de min	30.5	34.3	38.8	41.7	46.7	48.2	54.7	58.2	62.7	68	73
H max	3.25	3.45	3.45	6.8	6.8	6.8	6.8	6.8	6.8	6.8	6.8
H min	2.75	2.95	2.95	6.3	6.3	6.3	6.3	6.3	6.3	6.3	6.3
