      Plastic Expanding Rivet Clips
      • Plastic Expanding Rivet ClipsPlastic Expanding Rivet Clips
      • Plastic Expanding Rivet ClipsPlastic Expanding Rivet Clips
      • Plastic Expanding Rivet ClipsPlastic Expanding Rivet Clips
      • Plastic Expanding Rivet ClipsPlastic Expanding Rivet Clips

      Plastic Expanding Rivet Clips

      Xiaoguo® holds relevant certifications for its products and processes.Common applications utilizing the plastic expanding rivet clips include securing clevis pins, wheel axles, and linkages in various industries.
      Model:Q 692.1-1999

      Send Inquiry

      Product Description

      The natural features of the plastic expanding rivet clips make it good for special, specific uses. Since it doesn’t conduct electricity, it’s really important in electrical boxes and high-voltage areas. It doesn’t make sparks, which is really needed in places where explosions could happen (ATEX zones).

      You also can’t do without it in MRI rooms and sensitive electronics,places where even small magnetic fields from metal pins just aren’t allowed.

      plastic expanding rivet clips

      A good plastic expanding rivet clips goes through strict tests to make sure it works consistently. These tests check things like size accuracy, how much pull it can take, how well it handles hits, and if it works with different chemicals.

      Xiaoguo®'s plastic cotter pins are manufactured to industry standards using materials that meet specified requirements, ensuring performance. They securely and safely hold objects in place for their intended purpose. Compared to metal cotter pins, plastic ones are more corrosion-resistant and rust-resistant.

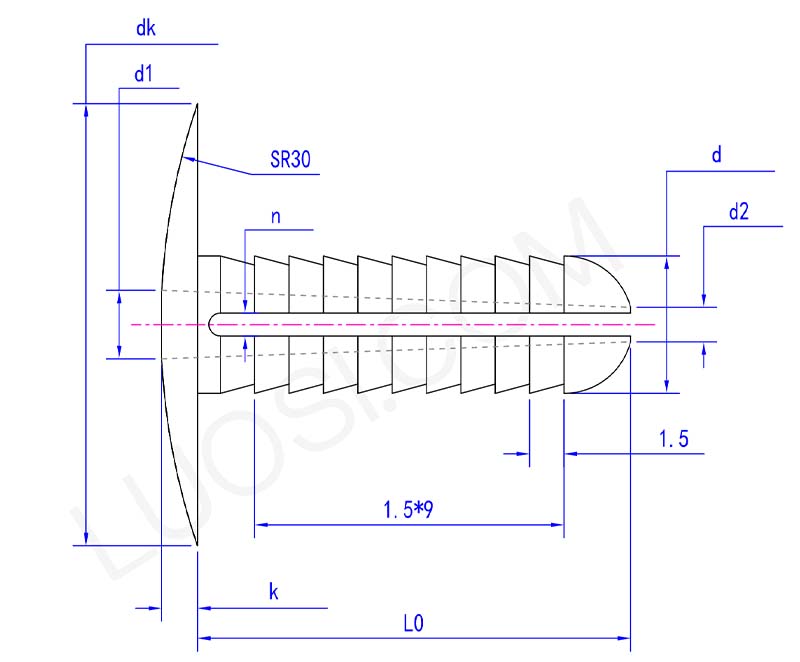

      Parameter Table

      plastic expanding rivet clips parameter

      Mon
      Φ6 Φ8
      Φ10
      d max
      6 8 10
      d min
      5.8 7.8 9.8
      dk max
      16.2 16.2 18.2
      dk min
      15.8 15.8 17.8
      k max
      1.6 1.6 2.1
      k min
      1.4 1.4 1.9
      L0
      20 20 22
      d1
      3 4 5
      d2
      1.5 2 3
      n
      1 1 1.5

      Complies with international safety and environmental regulations

      Our standard plastic expanding rivet clips are made of materials that comply with major international regulations, including RoHS and REACH. We also offer FDA-certified versions for food contact applications. Certificates of compliance are available upon request.

      Our materials are carefully selected according to global standards during production, ensuring compliance with relevant quality standards and ensuring safe export and widespread use worldwide.
