Furniture Grade Button Head Rivets

As a top China Button head rivets factory, Xiaoguo® offers premium Furniture grade Button head rivets. These simple, strong, permanent fasteners feature smooth dome heads with rust-free stainless steel and copper options. Contact us to buy in bulk and get our competitive wholesale pricing for your procurement.

Send Inquiry

Product Description

Xiaoguo® provides premium Furniture grade Button head rivets designed for high-end manufacturing. Global clients choose to buy from us for our reliable quality and stable factory supply. Businesses can procure these durable fasteners in bulk or wholesale direct to optimize production costs. The following product definition and advantages will support your purchasing decision.

Product Definition

Product Name:Furniture grade Button head rivets

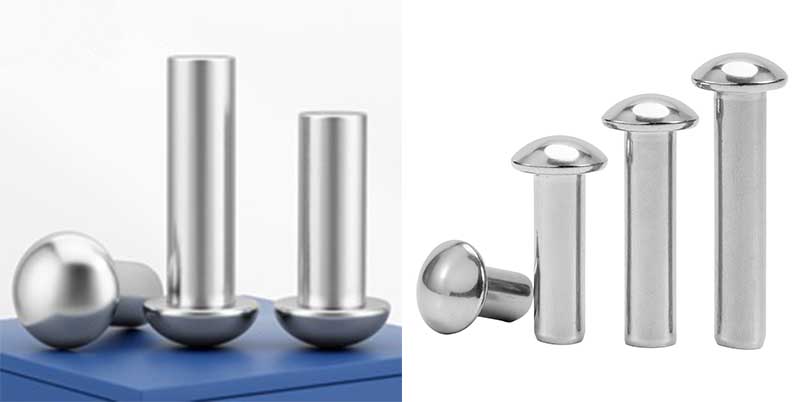

Head shape: button / dome shape. The top is a semi-spherical bulge, and the bottom is flat.

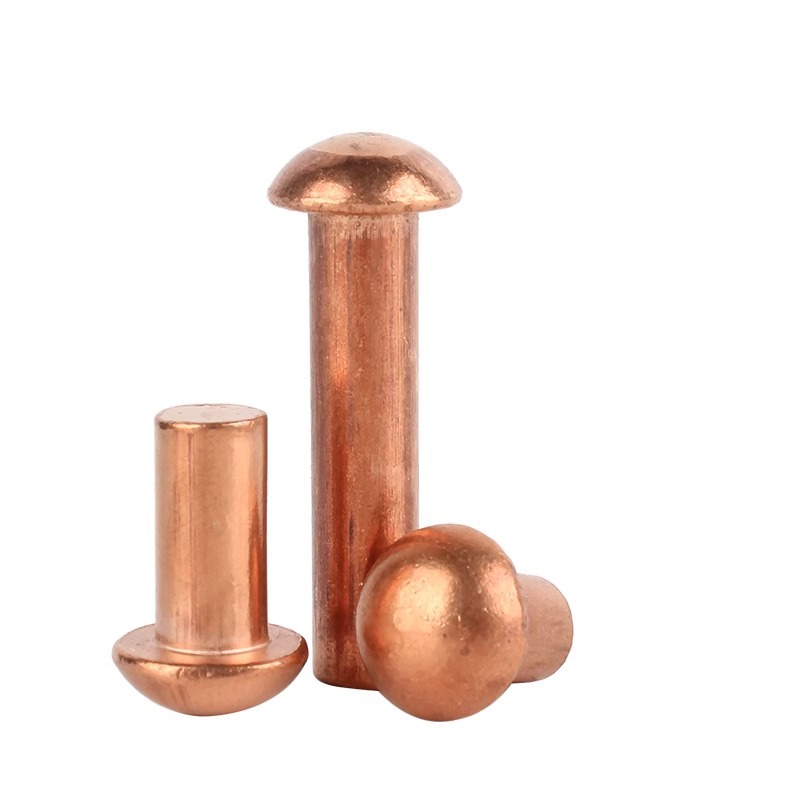

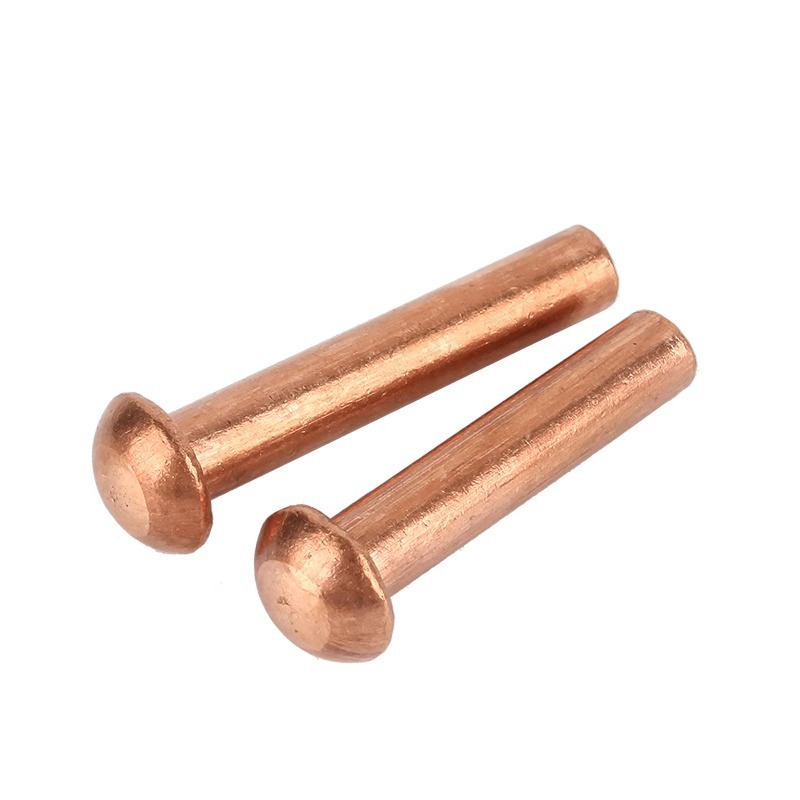

Material: Carbon steel, stainless steel, copper, aluminum, aluminum alloy, etc.

Definition:

The Furniture grade Button head rivets is a permanent mechanical fastener with a semi-spherical protrusion at the head and a cylindrical shape at the shaft. The diameter of the head is approximately 1.6 to 2.0 times that of the shaft, and the height of the head is approximately 0.5 to 0.7 times that of the shaft.

During installation, insert the rivet rod through the pre-drilled holes of the connected components. Use a riveting gun or hammer to deform the end of the rod, thereby firmly fixing two or more parts together. The flat round-head rivets have their heads exposed after installation, presenting a smooth and round appearance. They are suitable for situations where there are certain requirements for the surface appearance and where the head does not need to be flush with the workpiece, such as metal boxes, tool handles, leather products, car interiors, etc.

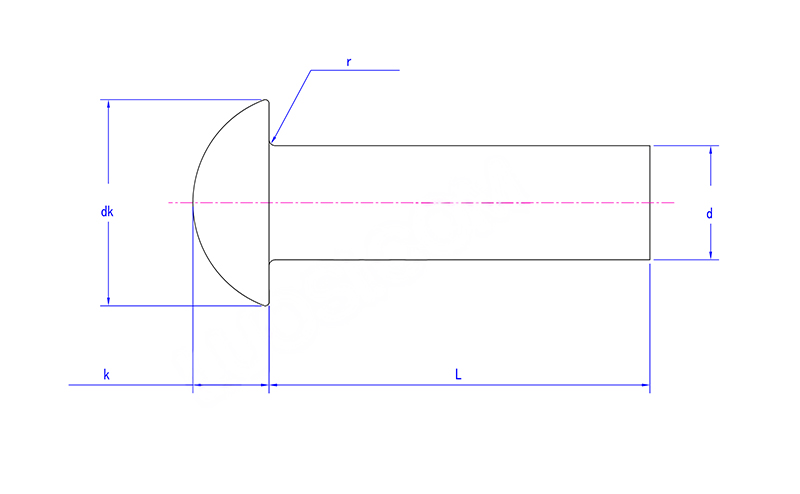

Mon	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ36
d max	12.3	14.3	16.3	18.3	20.35	22.35	24.35	27.35	30.35	36.4
d min	11.7	13.7	15.7	17.7	19.65	21.65	23.65	26.65	29.65	35.6
dk max	22	25	30	33.4	36.4	40.4	44.4	49.4	54.8	63.8
dk min	20	23	28	30.6	33.6	37.6	41.6	46.6	51.2	60.2
k max	8.5	9.5	10.5	13.3	14.8	16.3	17.8	20.2	22.2	26.2
k min	7.5	8.5	9.5	11.7	13.2	11.7	16.2	17.8	19.8	23.8
r max	0.5	0.5	0.5	0.5	0.8	0.8	0.8	0.8	0.8	0.8

Advantages

The greatest advantage of the Furniture grade Button head rivets is "reliable connection, smooth appearance and quick installation".

Permanent connection

Unlike screws, after being installed, the tail of a rivet deforms to form a head, and it cannot be loosened. It is more reliable than threaded connections in environments with vibration and impact, and is often used in equipment such as crushers, tractors, and engine covers.

Smooth head shape

The flat round head is semi-spherical in shape, with a smooth surface without any sharp edges. After installation, it will not catch clothes or scratch the operator when exposed, and is suitable for use in situations where it comes into contact with people, such as toolboxes, handrails, seats, and leather goods.

Installation Quick

Bolting does not require pre-drilling or nuts. Just insert the Furniture grade Button head rivets into the pre-made holes and use a riveting gun or hammer for a few seconds to complete. It saves the process of tightening nuts compared to bolt connections, and is more secure than self-tapping screws.

Multiple materials are available for selection.

You can choose from carbon steel, stainless steel, copper, aluminum and other materials. These materials can adapt to different environments.

Not sensitive to the thickness of the workpiece

The bolt connection has strict requirements for the clamping thickness; for Furniture grade Button head rivets, as long as the rod length is appropriate, the total thickness of the workpiece can vary within a certain range and still be able to be riveted normally. It is suitable for assembling stamping parts with large thickness deviations.
