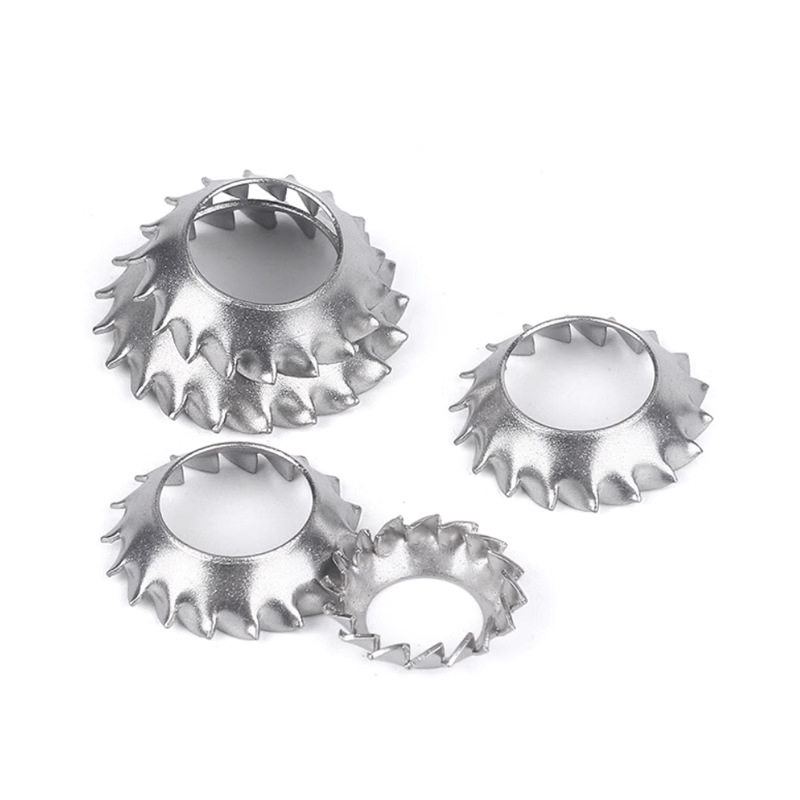

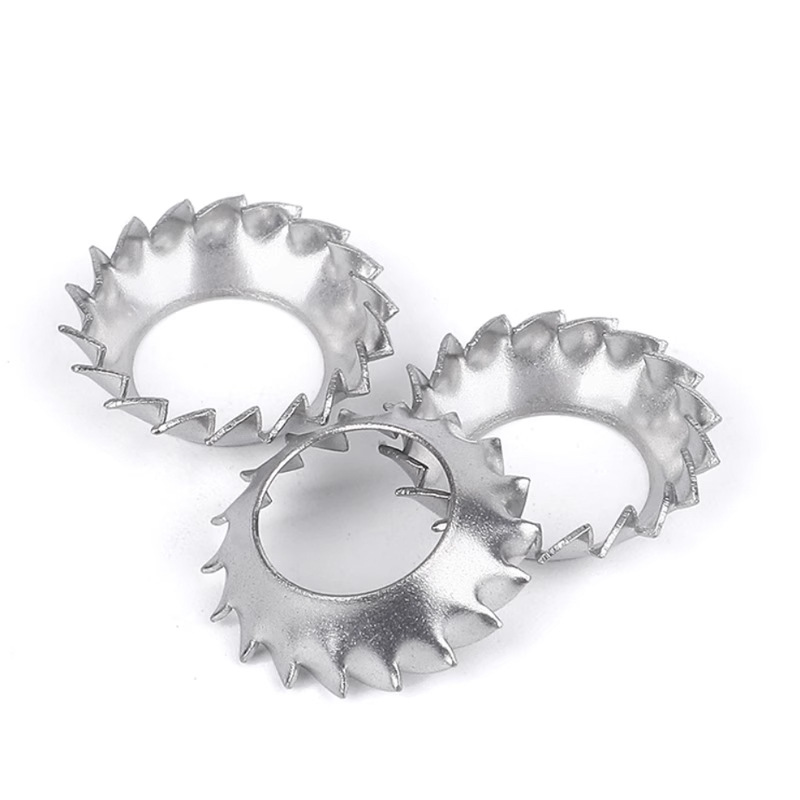

External Tooth Lock Washers With Countersunk

The External Tooth lock washers with countersunk produced by the Xiaoguo® factory have strong electrical grounding capabilities. The external teeth can penetrate the oxide film on the surface of the workpiece, providing a metal grounding path for the electrical components.

Send Inquiry

Product Description

The common base material for External Tooth lock washers with countersunk is spring steel. This type of material has good elasticity and strong adhesion, but it is prone to rusting. Therefore, surface treatment must be carried out to prevent corrosion.

1.Galvanized (white zinc / blue zinc)

Color: Silver white or light blue

Salt spray test: Medium (72–96 hours)

High cost performance, widely used; rust prevention ability is average

The surface-treated External Tooth lock washers with countersunk is suitable for indoor dry environments, general industrial assembly

2.Yellow Zinc

Color: Golden yellow

Salt spray test result: Medium-high (96–120 hours)

Corrosion resistance is superior to white zinc, and the color is easy to distinguish

Suitable for general industrial use both indoors and outdoors, as well as in mild humid environments

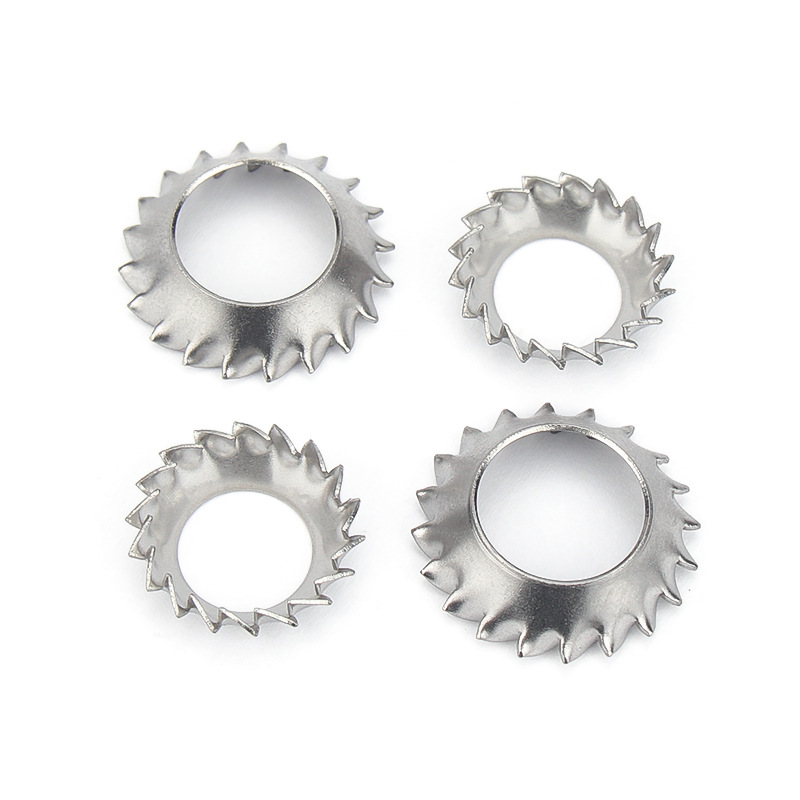

External Tooth Lock Washers With Countersunk

3.Mechanical galvanization

Appearance is matte silver-gray

Salt spray test is high (200–400 hours)

No hydrogen embrittlement risk, uniform coating

High-strength gasket (hardness ≥ HRC 40), high safety requirements

4.Dacromet (zinc-aluminum coating)

Appearance color: matte silver-gray / dark gray

Salt spray test is high (more than 500 - 1000 hours)

No hydrogen embrittlement, excellent salt spray resistance, high temperature resistance (≤ 300°C)

The External Tooth lock washers with countersunk treated with Dacromet surface treatment are suitable for automotive chassis, outdoor equipment, high humidity and high salt environments.

5.Black Oxide

black

Salt spray test is extremely low (only a few hours)

The cost is the lowest, and the size is hardly changed. The appearance is matte.

It is suitable for indoor dry environments. Only the appearance requirements are met, and there is no need for rust prevention.

6.Phosphating

Dark gray

Salt spray test (requires oil coating)

No hydrogen embrittlement, good oil storage property, can improve lubrication

Coating the base layer, or for assemblies requiring oil lubrication

7.Nickel plating

Bright silver-white

Good salt spray test result (≈ 200 hours)

Lustrous appearance, more corrosion-resistant than galvanized, but higher cost

The nickel-plated External Tooth lock washers with countersunk are applied in electronics, precision instruments, and scenarios with requirements for appearance

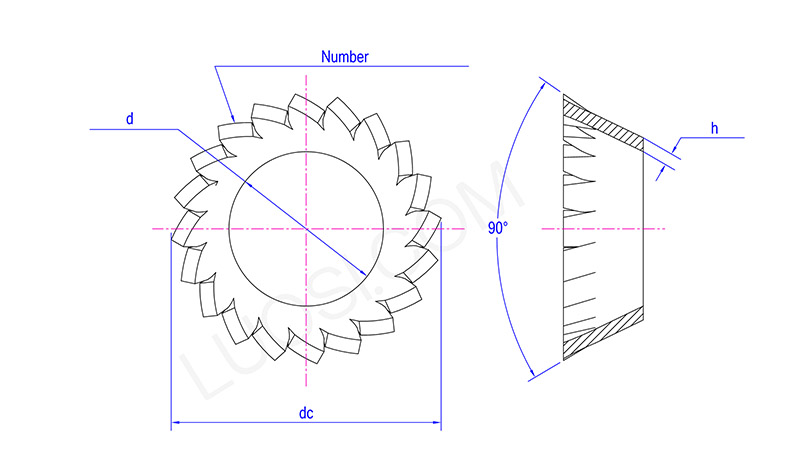

External Tooth Lock Washers With Countersunk

Mon	φ2.5	φ3	φ3.5	φ4	φ5	φ6	φ8	φ10	φ12	φ14	φ 16
d min	2.7	3.2	3.7	4.3	5.3	6.4	8.4	10.5	13	15	17
d max	2.84	3.38	3.88	4.48	5.48	6.62	8.62	10.77	13.27	15.27	17.27
dc	5.1	6	7	8	9.8	11.8	15.3	19	23	26.2	30.2
h	0.2	0.2	0.25	0.25	0.3	0.4	0.4	0.5	0.5	0.6	0.6
Number of Number of teeth min	10	12	12	14	14	16	18	20	26	28	30
