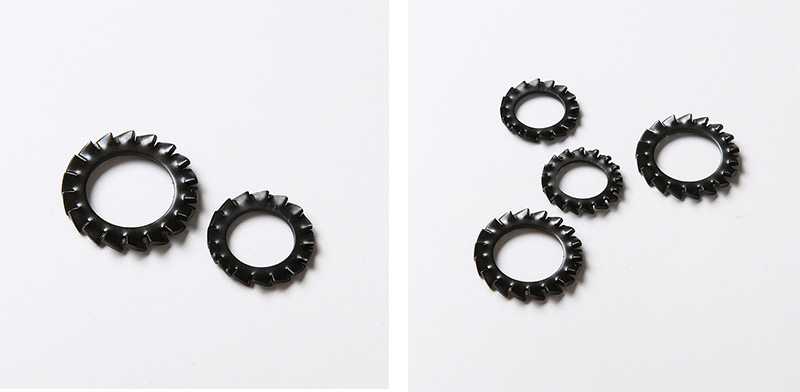

External Serrations Lock Washers

The Xiaoguo® External serrations Lock Washers sample can provide beneficial electrical grounding. The outer teeth of the gasket can scratch the oxide layer or coating during use, creating a stable metal contact path, which can be used for the connection of electrical cabinets.

Send Inquiry

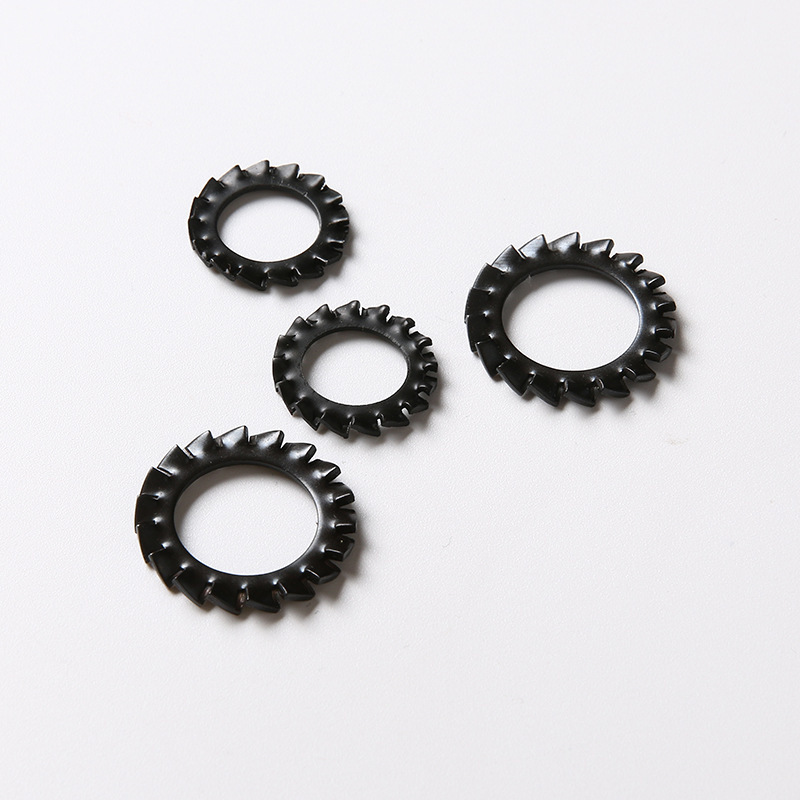

Product Description

The material of the External serrations Lock Washers directly determines its clamping force, rust prevention ability and applicable environment.

（1）Spring steel

Common grades: 65Mn, C67S, SK5

Hardness: HRC 40–50

Features: The elasticity is the best, and the biting force is the strongest; the teeth are sharp and can deeply penetrate the metal surface; the price is low and the cost-performance ratio is high.

Disadvantages: Bare steel is prone to rusting and requires surface treatment; it is not suitable for humid or corrosive environments.

Applicable scenarios:The spring steel-made External serrations Lock Washers is suitable for general industries, automobiles, mechanical assembly, and indoor dry environments.

Coating surface treatment: Galvanization (indoor), Dacromet (outdoor)

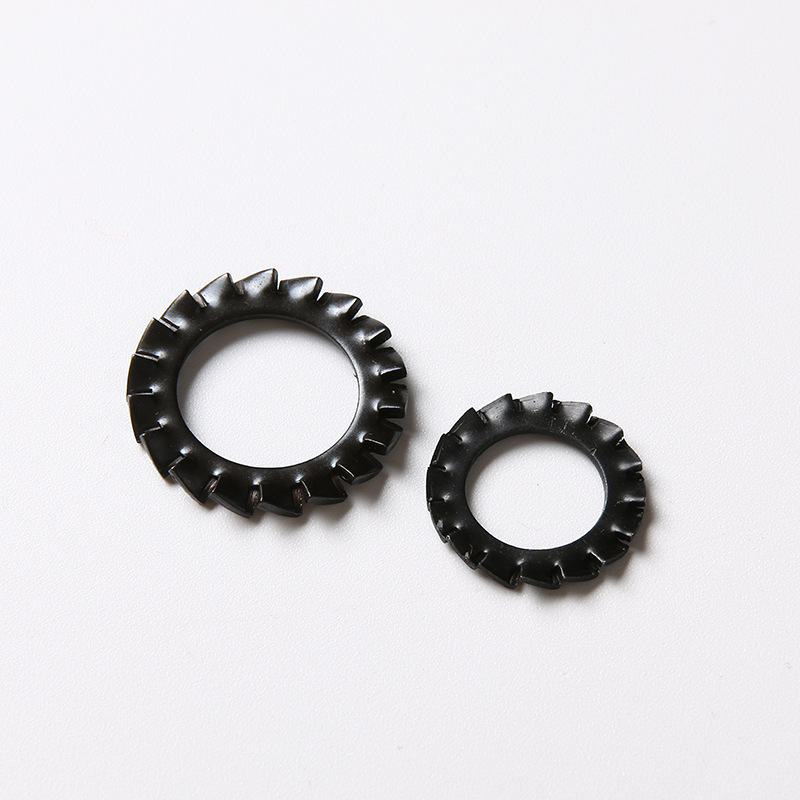

External Serrations Lock Washers

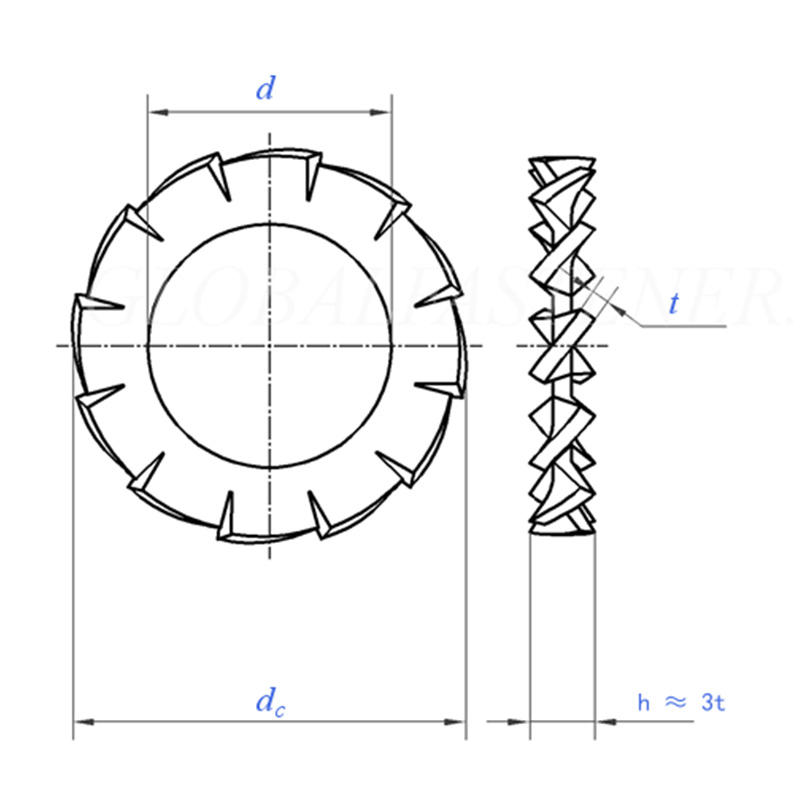

Size		1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	min=nominal size	1.7	2.2	2.7	3.2	3.7	4.3	5.3	6.4	7.4	8.4
d	max	1.84	2.34	2.84	3.38	3.88	4.48	5.48	6.62	7.62	8.62
dc	max=nominal size	3.6	4.5	5.5	6	7	8	10	11	12.5	15
dc	min	3.3	4.2	5.2	5.7	6.64	7.64	9.64	10.57	12.07	14.57
	t	0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.8	0.8
Number of Teeth	min	9	9	9	9	10	11	11	12	14	14
per 1000 unitsskg		0.02	0.03	0.045	0.06	0.11	0.14	0.28	0.36	0.5	0.8
For Nominal Thread Diameter		M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8

Size		10.5	13	15	17	19	21	23	25	28	31
d	min=nominal size	10.5	13	15	17	19	21	23	25	28	31
d	max	10.77	13.27	15.27	17.27	19.33	21.33	23.33	25.33	28.33	31.39
de	max=nominal size	18	20.5	24	26	30	33	36	38	44	48
de	min	17.57	19.98	23.48	25.48	29.48	32.38	35.38	37.38	43.38	47.38
	t	0.9	1	1	1.2	1.4	1.4	1.5	1.5	1.6	1.6
Number of Teeth	min	16	16	18	18	18	20	20	20	22	22
per 1000 unitsskg		1.25	1.6	2.3	2.9	5	6	7.5	8	12	14
For Nominal Thread Diameter		M10	M12	M14	M16	M18	M20	M22	M24	M27	M30

（2）Stainless steel

①A2 (304 stainless steel)

Hardness: Approximately HRC 25–35 (softer than spring steel)

Features: Universal corrosion resistance, good rust prevention ability; stainless; no need for additional coating; the bite force is not as strong as that of spring steel, but it is sufficient for general vibrations.

Application scenarios: humid environments, food equipment, medical devices, general indoor and outdoor rust prevention

②A4 (316 stainless steel)

Hardness: approximately HRC 25–35

Features: Contains molybdenum, more resistant to chloride ion corrosion 'resistant to salt fog, resistant to seawater, resistant to chemicals ； The cost is 30-50% higher than 304.

Applicable scenarios: The External serrations Lock Washers made of 316 stainless steel is suitable for marine engineering, ships, coastal facilities and chemical plants.

（3）Phosphor bronze

Designation: CuSn8, PB

Hardness: Approximately HRC 20–30 (lower)

Features: Does not produce sparks (explosion-proof); non-magnetic; good conductivity; corrosion-resistant (but not as good as 316); low strength, not suitable for high load.

Applicable scenarios: Explosion-proof environment, electrical grounding, instruments sensitive to magnetism

（4）Brass

Model number: H62, H65

Hardness: Low (approximately HRC 10–20)

Features: Conductive, heat-conductive; golden in appearance, decorative; rust resistance is average; low in strength, teeth are prone to wear and tear.

Applicable scenarios: Low-voltage electrical, plumbing, pneumatic connectors, decorative assemblies

FAQ

（1）What is the maximum temperature for External serrations Lock Washers?

Spring steel with galvanization is generally suitable for temperatures ranging from -20°C to +120°C; stainless steel A2/A4 can be used up to -200°C to +300°C.

（2）Which material is best for electrical grounding?

Grounding requires that the teeth be able to penetrate the paint or oxide layer to form a conductive path. Stainless steel A2/A4 and phosphor bronze can all be used.

（3）Do External serrations Lock Washers have magnetic properties?

Spring steel is magnetic, while stainless steel A2/A4 has almost no magnetism (it may have weak magnetism after cold processing), and phosphor bronze and brass are completely non-magnetic.
