DIN 463 Tab Washers With Long Tab And Wing

The DIN 463 Tab Washers With Long Tab and Wing, the choice of material directly affects its performance and applicable environment. The most commonly used materials are carbon steel and stainless steel, and sometimes other special materials such as brass are also used.

（1）Carbon Steel

High in strength and low in cost, it is the mainstream choice in industrial applications.

It is widely applied in general industrial fields where high strength is required, costs are sensitive, and environmental corrosiveness is not strong.

（2）Stainless Steel

The stainless steel DIN 463 Tab Washers With Long Tab and Wing has an extremely good rust-proof property.

It has excellent corrosion resistance and is highly suitable for humid or chemically corrosive environments. It also possesses inherent high-temperature and low-temperature resistance properties.

Application scenario: It is commonly used in food processing, medical devices, marine industry, chemical plants, and other industries where rust prevention has strict requirements.

（3）Other Materials

Brass：Bronze material DIN 463 Tab Washers With Long Tab and Wing are mainly used in those special situations where non-magnetic properties or specific conductivity are required.

Material Selection Suggestions

In practical operation, matching the material of the DIN 463 Tab Washers With Long Tab and Wing with the usage environment is a crucial step for achieving the long-term stable operation of the product.

（1）General indoor industrial environment: Focus on cost control, optional carbon steel with zinc plating

（2）Harsh corrosive environment: Choose stainless steel.

（3）Appearance requirements or for special occasions: Optional Black Oxide finish on carbon steel or stainless steel. When non-magnetic or conductive properties are required, Brass material can be chosen.

（4）No rust prevention requirements: If there is no concern about rust at all, uncoated carbon steel is the lowest-cost option.

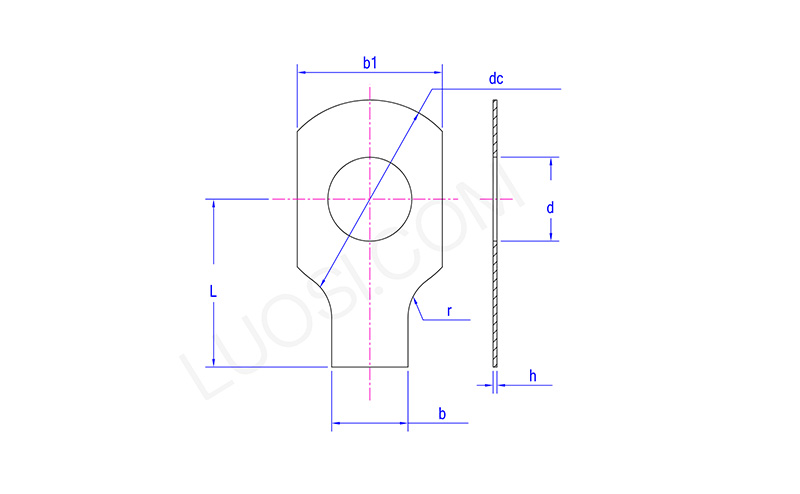

Mon	φ3	φ 4	φ5	φ6	φ8	φ10	φ12	φ14	φ16	φ18	φ20
d max	3.5	4.5	5.6	6.76	8.76	10.93	13.43	15.43	17.43	19.52	21.52
d min	3.2	4.2	5.3	6.4	8.4	10.5	13	15	17	19	21
dc max	10	14	17	19	22	26	32	32	40	45	45
dc min	9.64	13.57	16.57	18.48	21.48	25.48	31.38	31.38	39.38	44.38	44.38
L min	11.65	13.65	15.65	17.65	19.58	21.58	27.58	27.58	31.5	35.5	35.5
L max	12.35	14.35	16.35	18.35	20.42	22.42	28.42	28.42	32.5	36.5	36.5
h	0.4	0.4	0.5	0.5	0.5	0.5	1	1	1	1	1
b1	7	9	11	12	16	19	21	25	32	38	38
r	2.5	2.5	2.5	4	4	6	10	10	10	10	10
