T head and half hollow anchor bolt

The T head and half hollow anchor Bolt takes into account both strength and flexibility. They are very suitable for fixing lightweight fixtures to walls or ceilings. The bolts provided by Xiaoguo® factory are sturdy and durable, and each one has undergone quality inspection.

Send Inquiry

Product Description

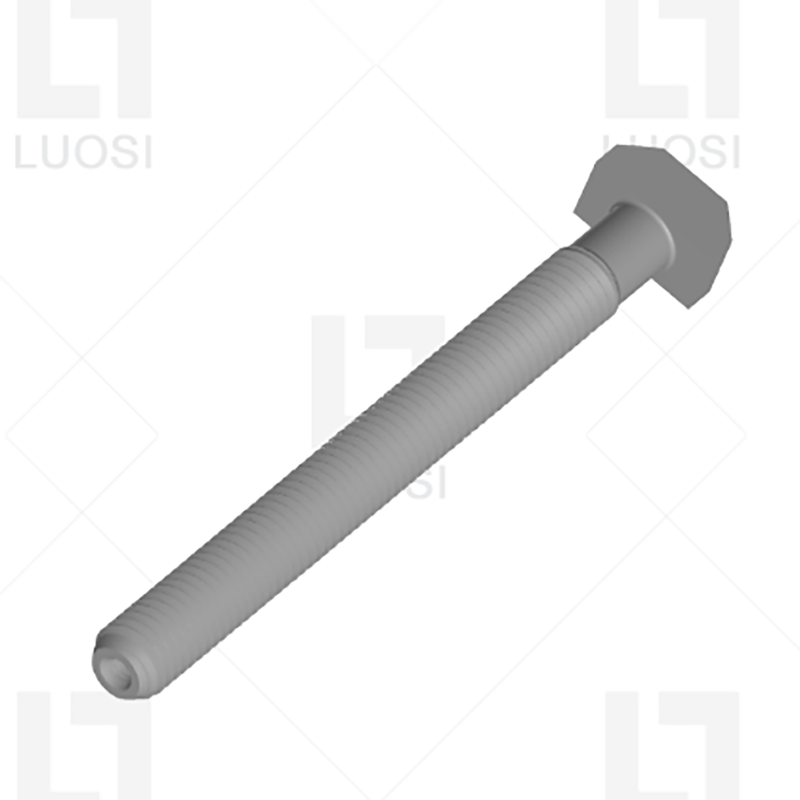

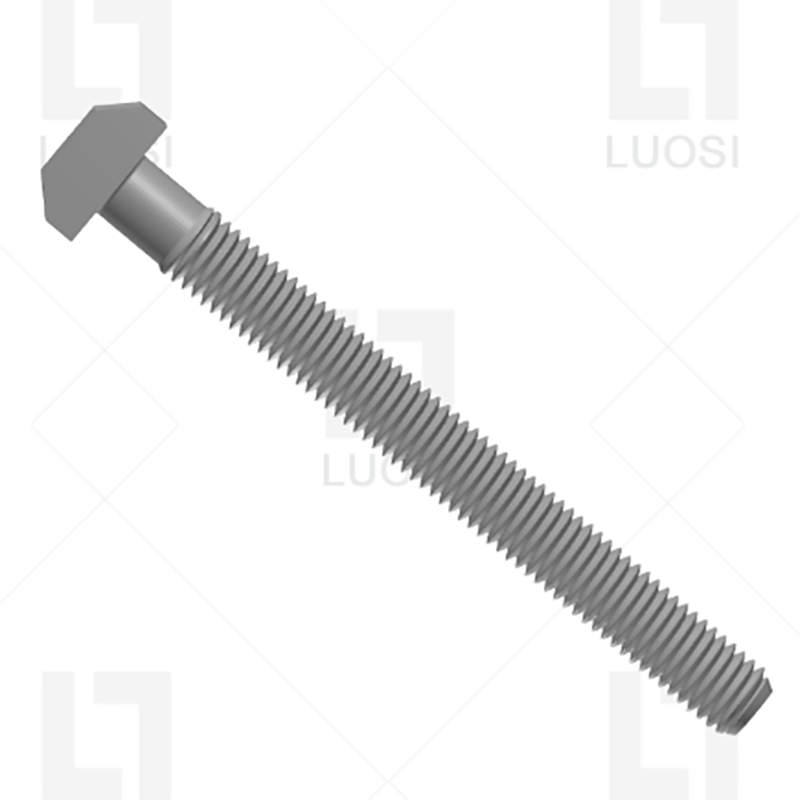

The T head and half hollow anchor Bolt has a T-shaped head at one end and a hollow bolt in the middle part. It can be better clamped during installation and is less likely to shake. They are common parts in industries such as construction and machinery.

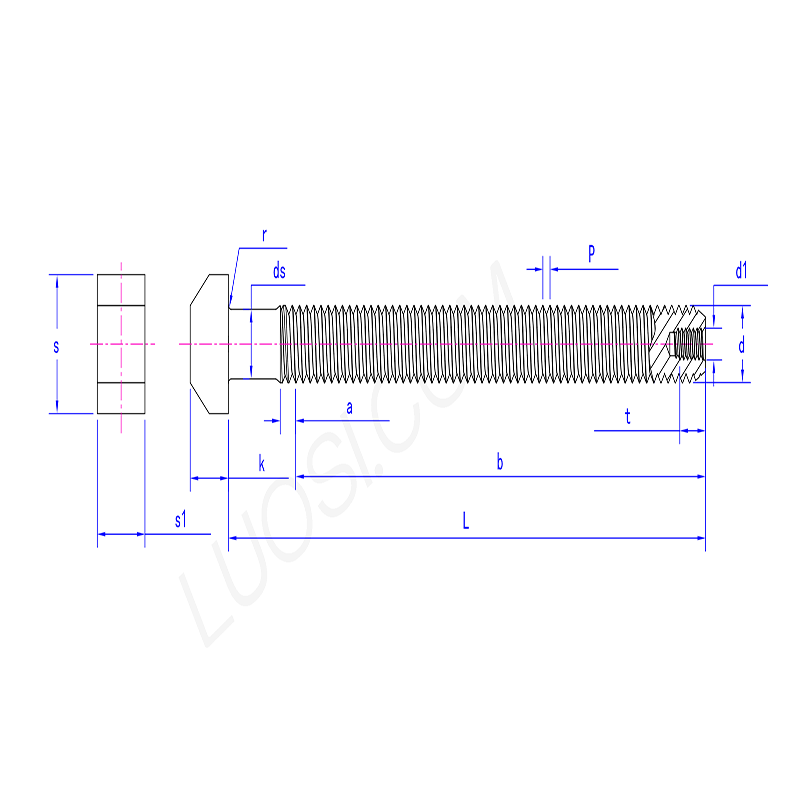

Product parameters

Mon	M42	M48	M56	M64	M72	M80	M90	M100	M110	M125	M140
P	4.5	5	5.5	6	6	6	6	6	6	6	6
d1	M12	M12	M16	M16	M16	M20	M20	M20	M20	M20	M20
ds	37	42	49	57	65	73	83	93	103	118	133
a max	21	24	28	32	36	36	45	45	55	55	70
k	26	30	35	40	45	50	55	62	67	78	85
s	80	88	102	115	128	140	155	170	190	215	240
s1	42	48	56	64	72	80	90	100	110	125	140
r	3	3	4	4	4	5	5	5	5	5	5
t max	23	23	30	30	30	33	33	33	33	33	33

Product details

The T head and half hollow anchor Bolt has good stability. The T-shaped head makes it particularly stable when fixed. When it is screwed into the object, the T-shaped head acts like a small baffle, getting stuck there to prevent the bolt from being pulled out or shaking. In the construction of Bridges, certain structural components used to fix the Bridges.

The T head and half hollow anchor Bolt is used for fixation in mechanical manufacturing. In the field of mechanical manufacturing, it is mainly used to fix the components of machinery. For a large machine tool, there are many small parts inside that need to be precisely installed and fixed. Such bolts can come in handy. When the machine tool is running at high speed to process parts, the parts will not shift due to vibration or other reasons, ensuring the accuracy of mechanical processing and the normal operation of the machine tool.

The T head and half hollow anchor Bolt is used to fix the rails to the concrete sleepers. The T-shaped head is flat and wide, providing a solid support surface for the rail bottom plate. The bolts are slightly bent under tension, which helps maintain the clamping force when the rail sinks or moves, which is crucial for the stability of the track.

Product selling point

The T head and half hollow anchor Bolt is particularly convenient to install. When installing, the T-shaped head can quickly find its position and be fixed in place. Its hollow part can be used to pass through some things, such as wires and the like. In some projects that require wiring, this design can save a lot of time and space.
