DIN529 Type E Anchor Bolts

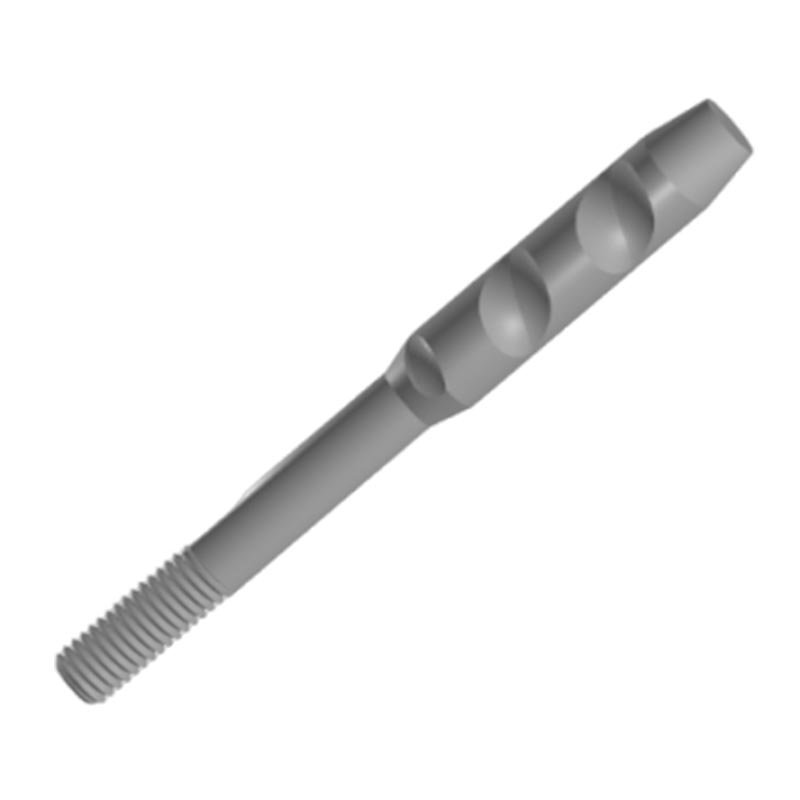

DIN529 type E anchor bolts are in the shape of long rods. The rod body has regular threads, and some rod bodies also have special concave-convex and spiral groove structures to adapt to specific installation environments and enhance the anchoring force with the base material.

Product Feature

DIN529 type E anchor bolts have strong versatility. It can be used in both small home decoration projects and large construction sites. It is not complicated to install either and does not require particularly professional skills. They are produced in accordance with the standard of DIN 529-1986 and can meet various different usage requirements.

Application scenarios

DIN529 E anchor bolts can be used for fixing basement window shafts. When installing window well linings on the foundation wall, they can be leveled and fixed. Its flat L-shaped head adheres closely to the liner and does not protrude. Drill holes in the concrete block, insert bolts and tighten them. They can prevent soil pressure from pushing the liner inward.

DIN529 type E anchor bolts are used for installing external thresholds. If you want to install rainproof thresholds on concrete slabs, it can keep them flat. The head is completely flat and located below the threshold, without any water accumulation. They can eliminate the risk of tripping while effectively sealing the gaps.

DIN529 E-type anchor bolts are used to fix the expansion joints of Bridges. The expansion joint plates on the bridge must be completely flat. Bolts poured into the concrete can achieve this. Their L-shaped heads are horizontally embedded below the concrete surface during the pouring process. Years later, the construction workers fixed the expansion joint plates with bolts, and there would be no protrusion. They can ensure that vehicles pass smoothly on the road.
