DIN529 Type F Anchor Bolts

The DIN529 type F anchor bolts have undergone salt spray tests to meet high standards. The manufacturer of Xiaoguo® produces bolts in accordance with the implementation standard of DIN 529-1986. If you place a bulk order, we will send you a detailed quotation.

Model:DIN 529-1986

Send Inquiry

Product Description

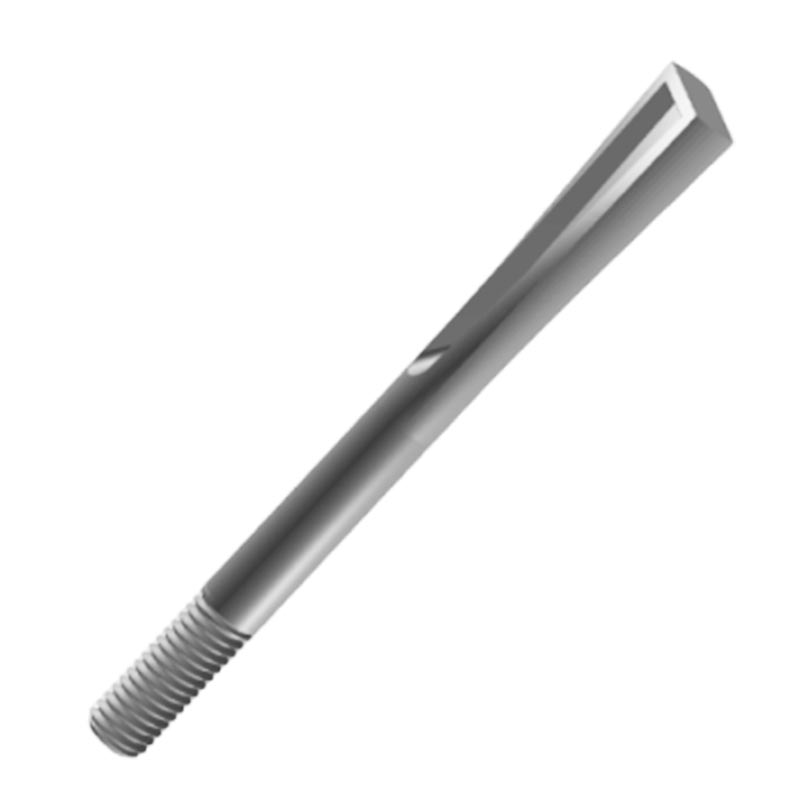

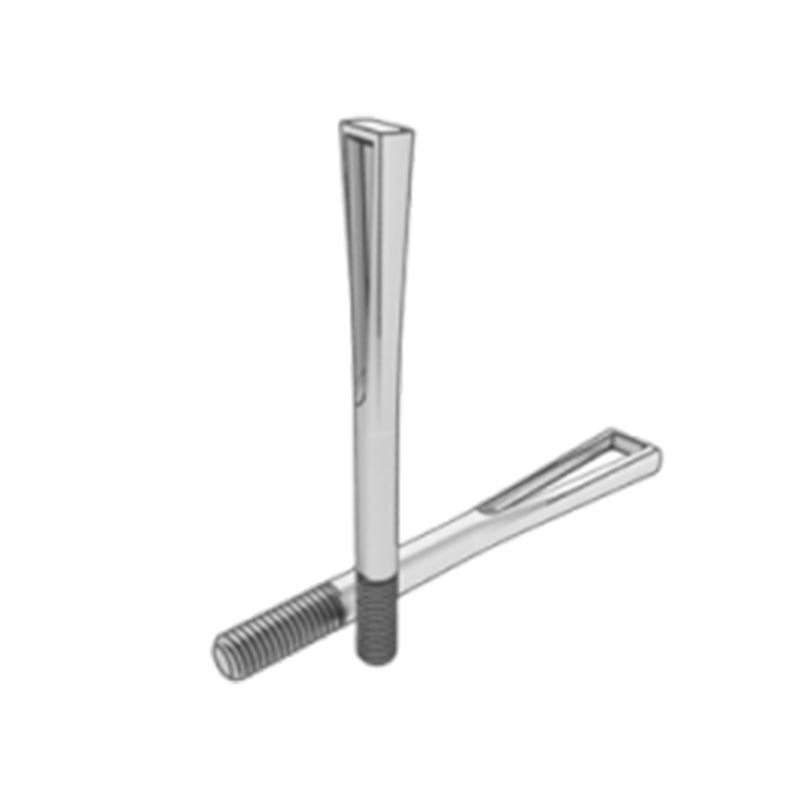

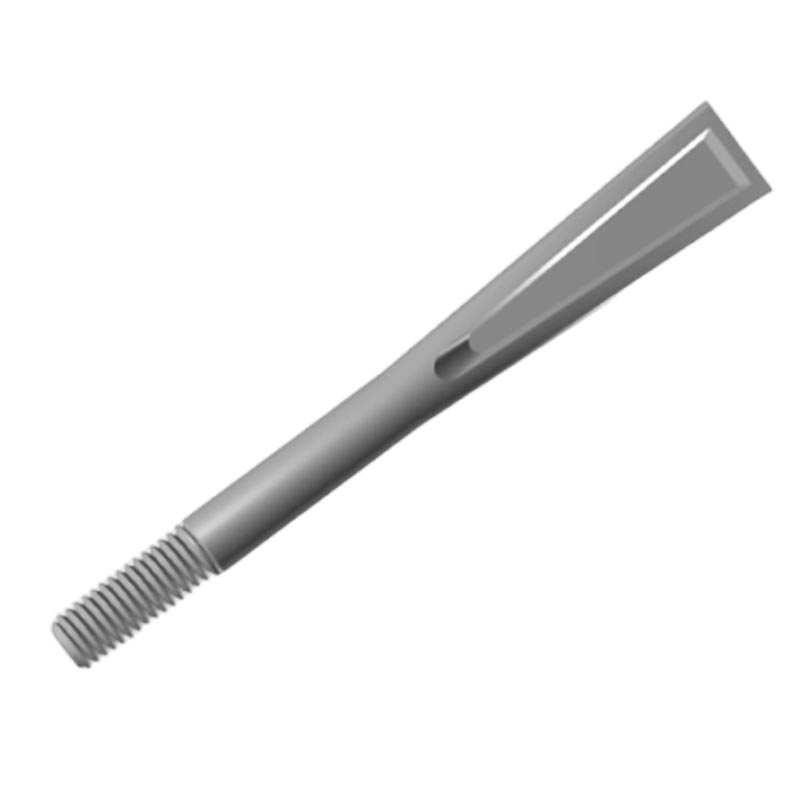

DIN529 type F anchor bolts are composed of rod-shaped main bodies. One end is machined with an external thread, and the other end has a flat wedge-shaped head. Bolts are more targeted and suitable for machinery, buildings, etc. with special installation and fastening requirements.

Product Features

DIN529 type F anchor bolts have strong adaptability. It can be put to use in different industries and scenarios. Its materials are diverse, including carbon steel, stainless steel, etc., which can meet the needs of different environments. Its installation is relatively convenient and it doesn't take workers too much trouble to operate. It has specific specifications and designs. Just as stipulated in the DIN 529 standard, different models have clear parameters in terms of diameter, pitch, length, etc.

Application Scenarios

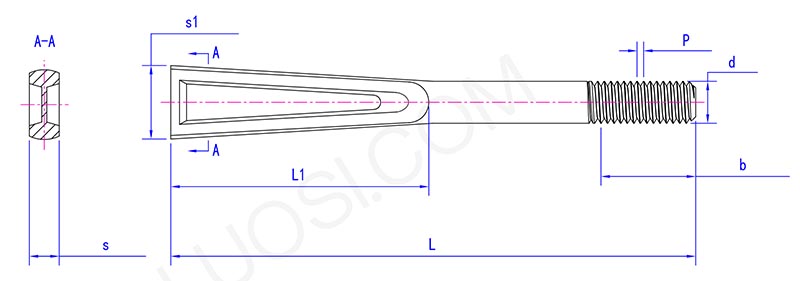

DIN529 type F anchor bolts parameter

Mon	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48
P	1.25	1.5	1.75	2	2.5	3	3.5	4	4.5	5
b max	22.5	28	33.5	44	55	66	82	98	114	130
b min	20	25	30	40	50	60	75	90	105	120
s1 max	17	19	23	28	33	38	48	58	68	78
s1 min	11	13	17	22	27	32	42	52	62	72
L1 max	55	55	60	90	100	125	135	195	205	225
L1 min	45	45	50	80	90	115	125	185	195	215
s max	7.5	9.5	11.5	15.5	19.5	23.5	27.5	31.5	37.5	43.5
s min	4.5	6.5	8.5	12.5	16.5	20.5	24.5	28.5	34.5	40.5

DIN529 F anchor bolts are used to fix the manhole frame adjustment device. When adjusting the sunken manhole frames on the road, they will anchor the adjusting rings to be flush. Its double L-shaped heads are placed completely flat beneath the adjusting ring. Workers drill holes in the existing structure, insert the L-shaped end of the bolt horizontally, and then tighten it. They can prevent tripping hazards when dealing with traffic vibrations.

DIN529 F-type anchor bolts are used for installing barrier-free ramp handrails. If it is necessary to install handrails that comply with ADA standards on concrete ramps, they can keep the brackets flush. Drill holes at the edge of the ramp, insert the L-shaped head bolts parallel to the surface and tighten them. There will be no protruding parts that could hook onto the casing or outer skin. They comply with accessibility standards.

DIN529 type F anchor bolts can also be used to restore the bolts of historical stone walls. If you are repairing a crumbling stone wall, they can stabilize the wall. You just need to drill through the mortar joint, place the L-shaped head bolt flat on the stone inside the wall and tighten it. The double-clamping design can lock the stone without the need for exposed fasteners.
