        Space Saving Snap Rings
        • Space Saving Snap RingsSpace Saving Snap Rings
        • Space Saving Snap RingsSpace Saving Snap Rings
        • Space Saving Snap RingsSpace Saving Snap Rings
        • Space Saving Snap RingsSpace Saving Snap Rings
        • Space Saving Snap RingsSpace Saving Snap Rings

        Space Saving Snap Rings

        Space Saving Snap Rings offer a significant advantage for manufacturers.Xiaoguo® continuously innovates to meet these components’ evolving industry demands and standards, and a key benefit of using them is their ability to be installed and removed for easy maintenance and assembly.
        Model:DIN 73130-1989

        Send Inquiry

        Product Description

        Space Saving Snap Rings barely get damaged while shipping—first, they’re made tough on their own, and second, the packaging protects them well. The materials they use, like spring steel, can handle mechanical stress pretty well, so they don’t break easily.

        Plus, the packaging has anti-corrosive stuff in it—like VCI paper—to keep the Space-saving Snap rings from rusting while they’re on the way. Suppliers promise the products will show up in good shape, too.

        If there’s ever a rare case where they do get damaged, it’s covered by insurance, or the supplier will send replacements.

        Basically, between the tough material and the protective packing, you almost never have to worry about Space-saving Snap rings getting ruined in shipping. And if something does go wrong, there’s a fix for it.

        Product Advantages

        The snap ring itself is not waterproof, but we have sealed it in the packaging. The desiccant in the packaging can absorb moisture in the air to prevent the snap ring from rusting during transportation. You can also use a sealed plastic bag to package it to prevent rusting.

        This matters because it keeps the metal surfaces of the Space Saving Snap Rings in good shape. If you’re using them in a humid place, you can ask the supplier for extra protection. And suppliers make sure the packaging can handle whatever damp or wet conditions it might run into.

        Basically, even though the rings can’t handle water, the packaging makes up for it. It keeps them dry, and if you need more protection, you can just ask.

        Space Saving Snap Rings

        Quality Control

        Advanced CNC machining and automated optical inspection ensure dual precision. Each batch of compact Space Saving Snap Rings is strictly inspected for inner/outer diameter, thickness, and radial clearance according to ISO/DIN/ANSI tolerance standards to ensure a perfect fit for your components.

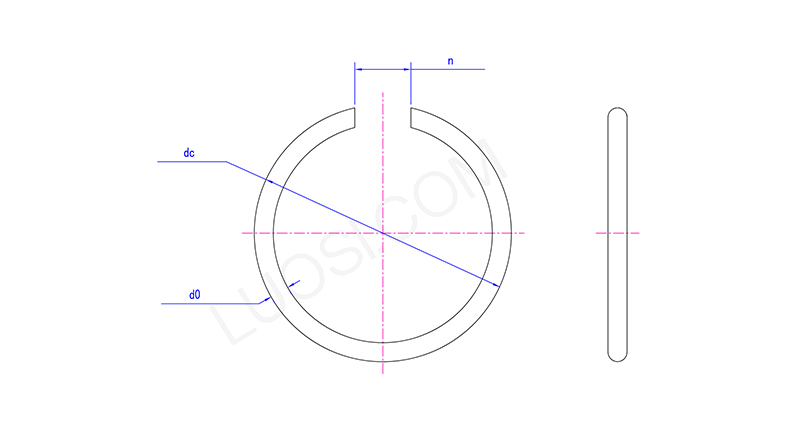

        Mon
        Φ10
        Φ12
        Φ14
        Φ15
        Φ18
        Φ20
        Φ22
        Φ24
        Φ25
        Φ26
        Φ28
        d0 max
        0.82 0.82 1.03 1.03 1.33 1.54 1.54 1.54 1.54 1.54 1.54
        d0 min 0.78 0.78 0.97 0.97 1.27 1.46 1.46 1.46 1.46 1.46 1.46
        dc max 11.8 14.1 16.5 17.6 21.5 23.7 25.8 28.2 29.2 30.4 32.4
        dc min 11.3 13.6 16 17.1 20.5 22.7 24.8 27.2 28.2 29.4 31.4
        n max 1.5 1.5 1.5 1.5 2 2 2 2 2 2 2
        n min 0.4 0.4 0.4 0.4 0.7 0.7
        0.7
        0.7
        0.7
        0.7
        0.7
