Slot Countersunk Stainless Steel Wood Screw

The Slot Countersunk Stainless Steel Wood Screw produced by the Xiaoguo® factory have a countersunk design. After installation, the surface is flat and flush with the wood surface, without any protrusions and will not scratch the hand.

Send Inquiry

Product Description

The Slot Countersunk Stainless Steel Wood Screw have a unique structure, and these structures have different effects in use. Let's learn more about the details.

1.Advantages of the sink head:

- Does not scratch the hand

- Does not catch on clothes

- Can fully cover

Disadvantage: There is an additional step of drilling holes for installation.

2.The limitations of the single-slot design

The Slot Countersunk Stainless Steel Wood Screw works well when installed manually or at low speeds, but it tends to come off easily when used with high-speed power tools. Therefore, it is not suitable for automated production lines.

3.The advantages of coarse thread screws:

They have strong holding power and are less likely to be pulled out compared to fine-thread screws.

The disadvantage is that it is difficult to screw them into hard wood, and pre-drilling is necessary.

4.Conical tip

It is convenient to use in softwood, but in hardwood it only serves as a marking tool and cannot replace drilling.

< style="text-align:center;">

Main features

The following are the main features of the Slot Countersunk Stainless Steel Wood Screw.

1.The head sinks in, the surface is flat.

The head is conical. After tightening, the Slot Countersunk Stainless Steel Wood Screw completely sink into the pre-drilled sink holes in the wood, being level with or slightly lower than the wood surface. It is suitable for furniture and decoration that require a smooth appearance.

2.One-slot design, universal tool

Installation can be done using the most common flat-head screwdriver, no special tools are required. Suitable for manual operation, on-site maintenance and small-batch assembly.

3.Coarse-grained wood thread

It tightly adheres to the wood fibers and is not prone to loosening.

4.Self-tapping point

The tip is conical in shape and can be directly screwed into softwood or medium-density wood without the need for a pre-drilled hole. Save working hours and enhance efficiency.

5.It can be disassembled and reassembled repeatedly, making maintenance easy.

Unlike nails, screws can be unscrewed and then re-screwed in. During repairs, replacements or adjustments of the structure, the wood will not be damaged.

6.The head can be hidden, and the appearance is very good.

When combined with a wooden plug or putty, the nail head can be completely covered to achieve "invisible" fixation. Suitable for high-end furniture, floors, decorative panels, etc. where high standards of appearance are required.

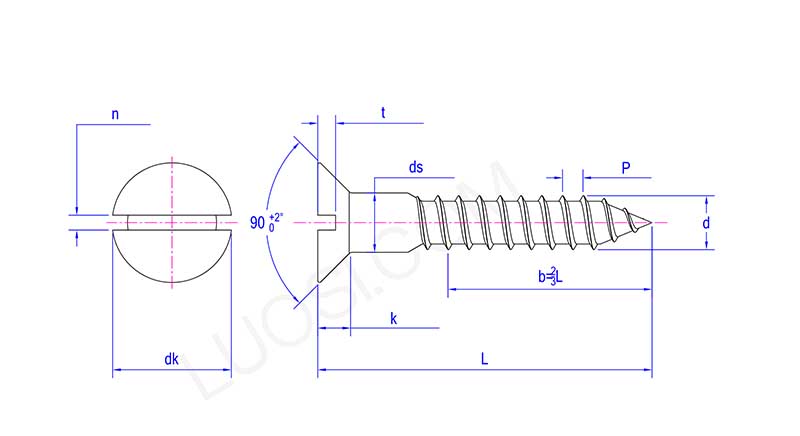

Slot Countersunk Stainless Steel Wood Screw

Mon	2.5	3	3.5	4	4.5	5	5.5	6	7	8	10
P	1	1.2	1.4	1.6	1.8	2	2.2	2.5	2.8	3	3.5
ds min	2.25	2.75	3.2	3.7	4.2	4.7	5.2	5.7	6.64	7.64	9.64
ds max	2.5	3	3.5	4	4.5	5	5.5	6	7	8	10
dk max	5	6	7	8	9	10	11	12	14	16	20
dk min	4.7	5.7	6.64	7.64	8.64	9.64	10.57	11.57	13.57	15.57	19.48
k max	1.4	1.7	2	2.2	2.7	3	3.2	3.5	4	4.5	5.8
n min	0.6	0.8	0.9	1	1.2	1.2	1.4	1.6	18	2	2.5
n max	0.85	1.05	1.15	1.35	1.55	1.55	1.75	1.95	2.15	2.35	2.85
t max	0.96	1.11	1.35	1.45	1.7	1.94	2.04	2.19	2.55	2.8	3.5
t min	0.64	0.79	0.95	1.05	1.3	1.46	1.56	1.71	1.95	2.2	2.9
