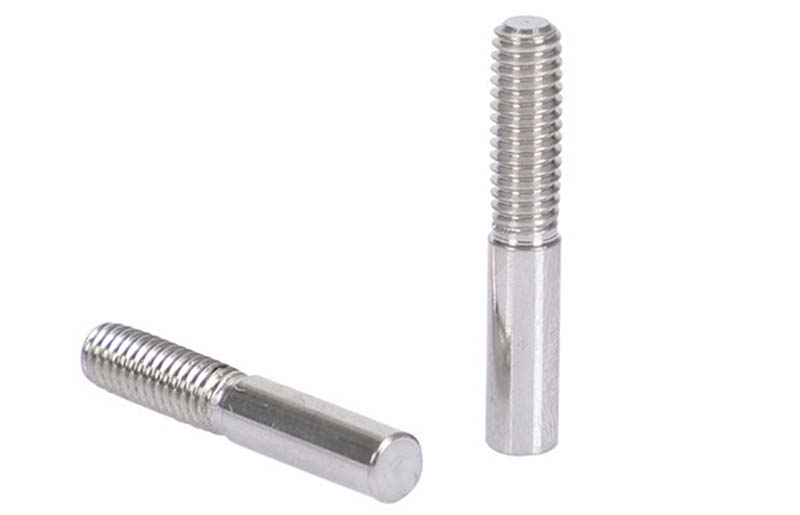

Single End Threaded Stud

Single end threaded studs are specifically designed for welding onto the surface of metals, enabling a strong and permanent connection. The welding process is simple and does not require nuts or bolts for fixation. The studs produced by the Xiaoguo® factory are extremely durable.

Model:DIN 525-2008

Send Inquiry

Product Description

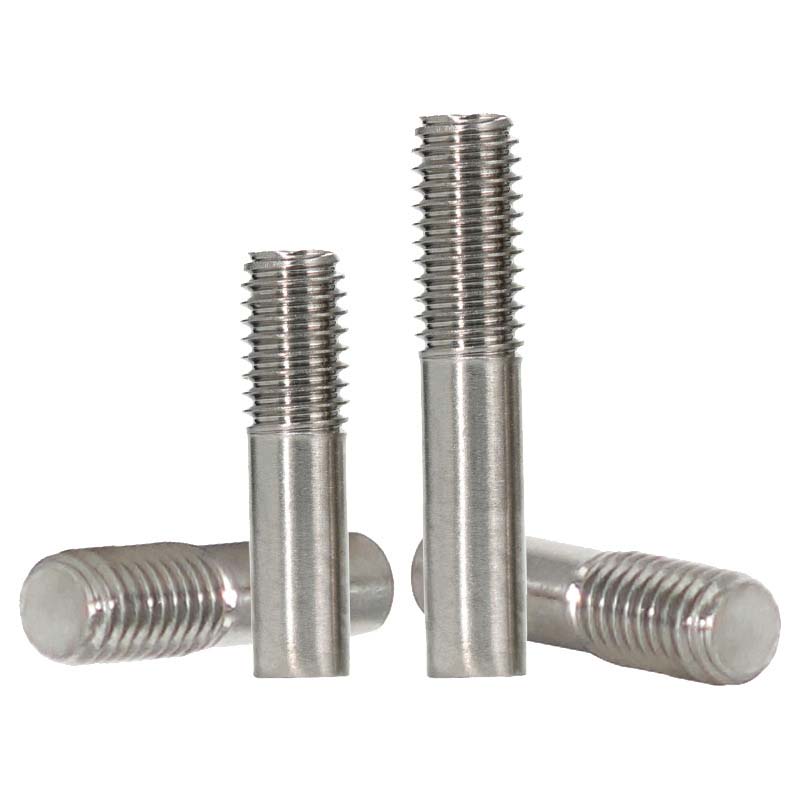

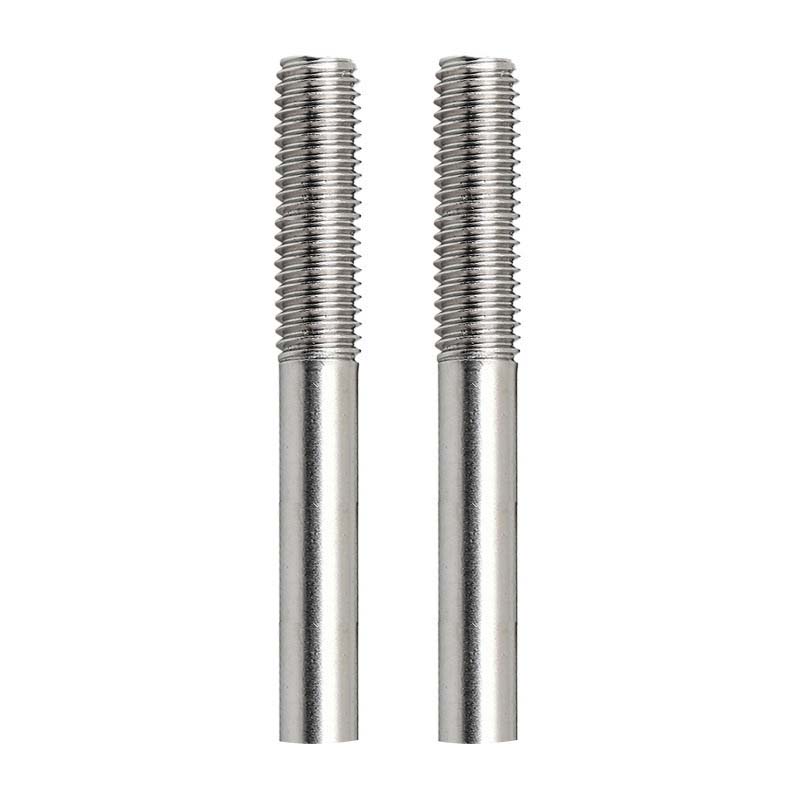

Single end threaded studs are basically a metal rod. One end of it has threads, allowing it to be screwed onto a nut; the other end is threadless and is just a plain rod. At the top of the rod, some are flat while others have a round head, and the shapes are quite different.

Advantage And Applications

The threaded studs are installed very quickly. Just weld them and they will be firmly fixed in no time. Moreover, after welding, it is extremely sturdy and firmly attached to the workpiece, hardly likely to loosen. Additionally, it does not require drilling holes on the workpiece, causing minimal damage to it and maintaining the integrity of the workpiece.

In the construction industry, single end threaded studs are extremely useful. When building a steel structure factory, the connection points between the steel beams and the steel columns will require the use of these materials. First, attach the studs to the ends of the steel beams or steel columns. Then, secure them firmly with nuts or other connecting components. In this way, the entire steel structure becomes extremely sturdy and can withstand the weight of the factory building and various external forces.

Threaded studs are used in the production of electronic devices. Producing computer cases, mobile phone casings, TV casings, etc., they have many practical uses. Install the internal hard drive bracket, power fixing frame and other components. First, weld the screws onto the chassis shell, then install the other components. In this way, the internal structure will be very stable.

Product Parameters And Features

Mon	M6	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2.5	3	3.5	4	4.5	5
b max	37	42.5	48	58.5	69	80	91	112	133	154	175
b min	35	40	45	55	65	75	85	105	125	145	165
ds max	6	8	10	12	16	20	24	30	36	42	48
ds min	5.35	7.19	9.03	10.86	14.70	18.38	22.05	27.73	33.40	39.08	44.75
L min	128	138	148	168	187.7	207.7	227.7	267.4	307.4	347.1	387.1
L max	132	142	152	172	192.3	212.3	232.3	272.6	312.6	352.9	392.9

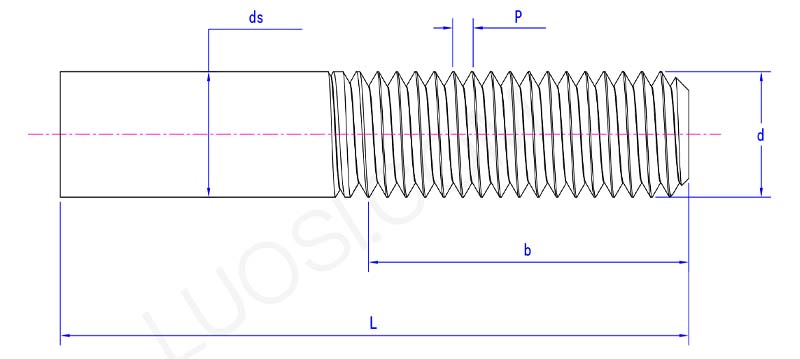

Single end threaded studs parameter

The features of the single end threaded studs are quite obvious. Its welding end is ingeniously designed, which can make the welding process more stable and the weld stronger. Moreover, its material is very durable. Whether it is carbon steel or stainless steel, it can work normally in different environments. Additionally, the threaded part is finely processed, and when tightening the nut, it is particularly smooth and there will be no jamming situation.
