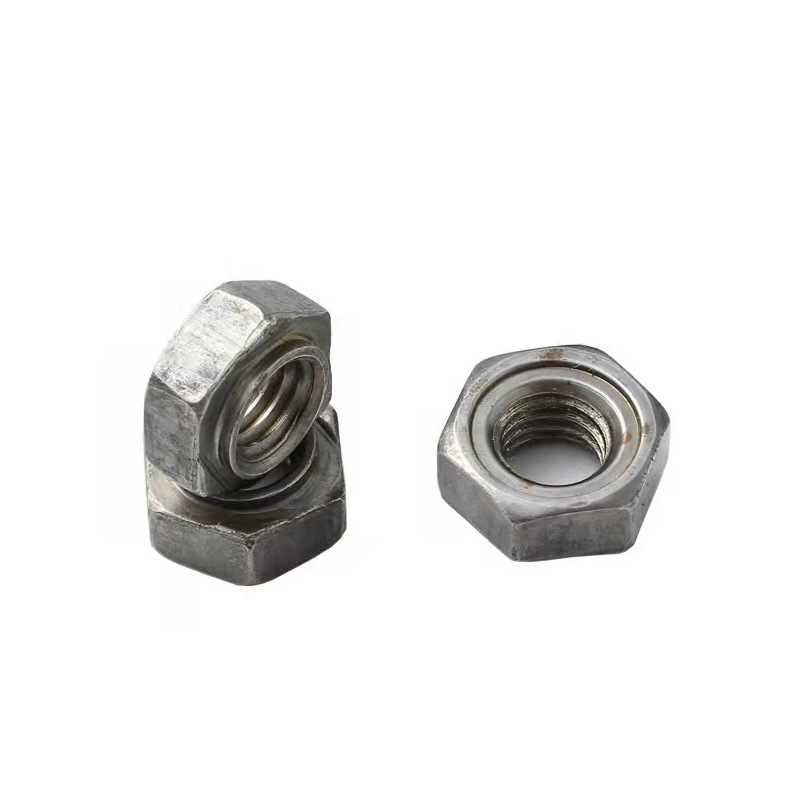

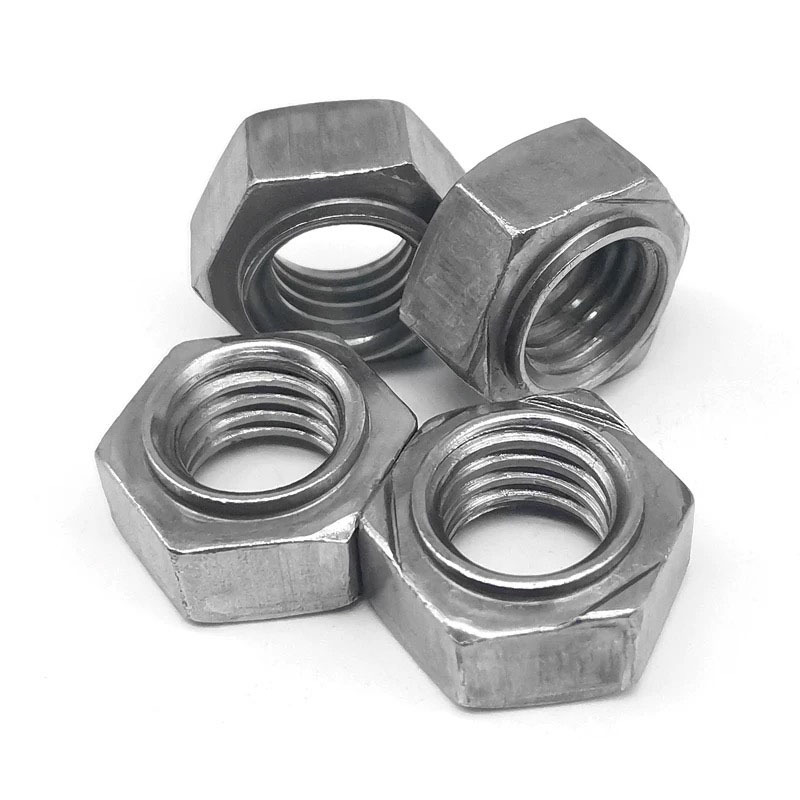

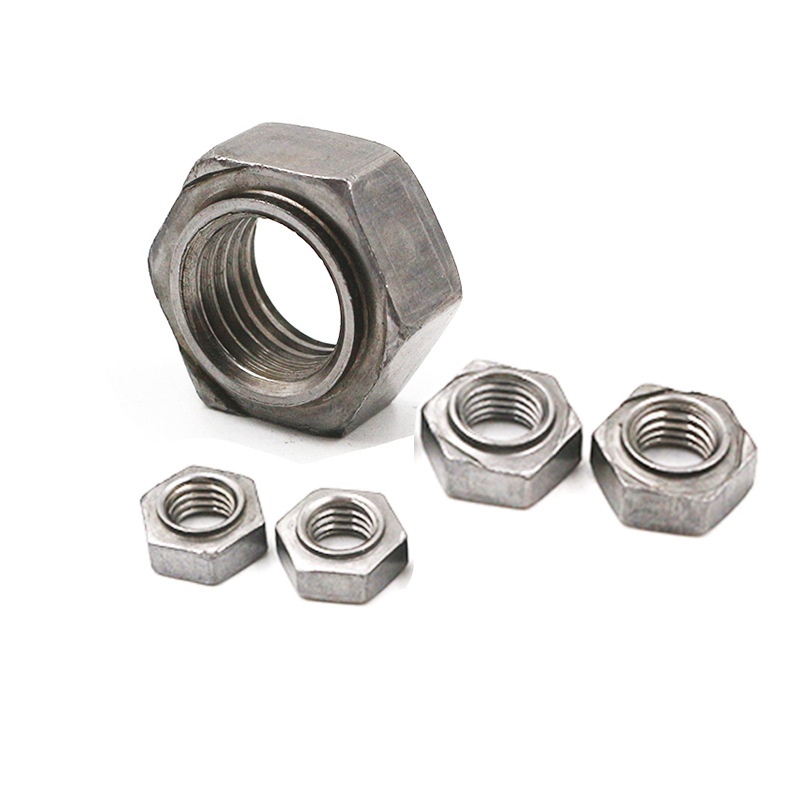

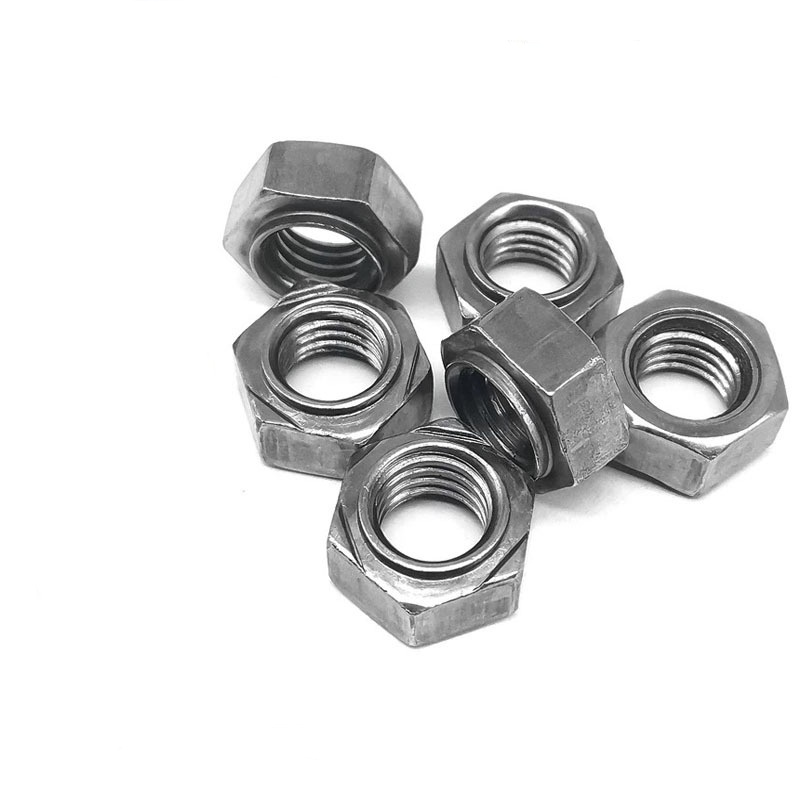

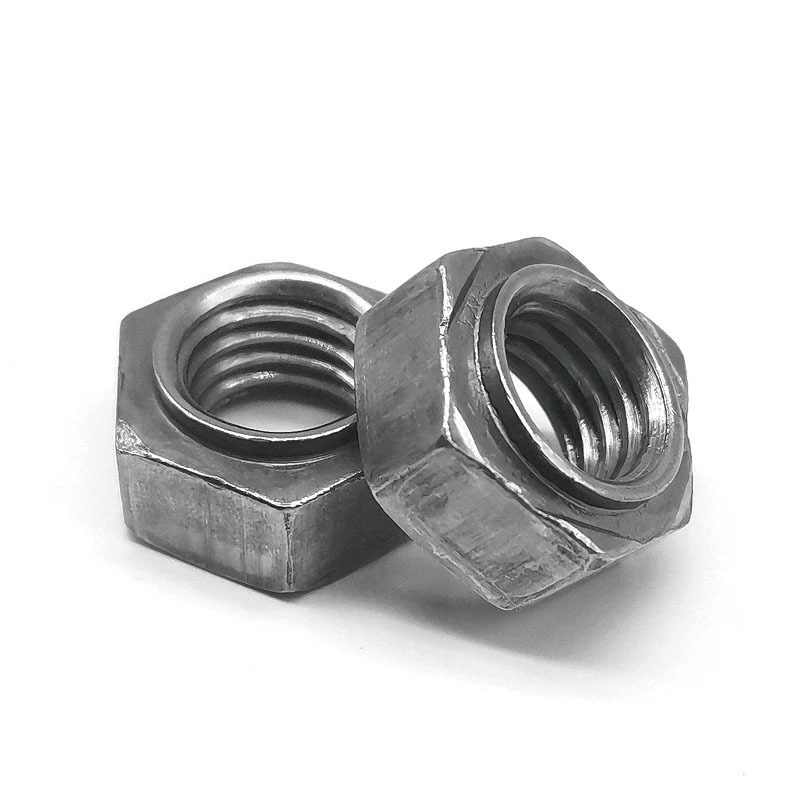

When picking Secure Welding Hexagon Weld Nut, it’s smart to think about cost.
Although stainless steel has a relatively higher initial investment cost, which is mainly due to the high price of its raw materials, from the perspective of long-term use, if you need items that are not easy to rust and are durable, stainless steel can actually help you save money.
Regular steel nuts are cheaper to start with and work fine where rust isn’t a big issue—good when you’re trying to keep costs down now. Plus, since these nuts come in different sizes and grades, you can usually find one that fits both your project and your budget.
Mon | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
d1 max | 4.47 | 5.97 | 6.96 | 7.96 | 10.45 | 12.45 | 14.75 |
d1 min | 4.395 | 5.895 | 6.87 | 7.87 | 10.34 | 12.34 | 14.64 |
e min | 8.15 | 9.83 | 10.95 | 12.02 | 15.38 | 18.74 | 20.91 |
h max | 0.55 | 0.65 | 0.7 | 0.75 | 0.9 | 1.15 | 1.4 |
h min | 0.45 | 0.55 | 0.6 | 0.6 | 0.75 | 1 | 1.2 |
h1 max | 0.25 | 0.35 | 0.4 | 0.4 | 0.5 | 0.65 | 0.8 |
h1 min | 0.15 | 0.25 | 0.3 | 0.3 | 0.35 | 0.5 | 0.6 |
s max | 7.5 | 9 | 10 | 11 | 14 | 17 | 19 |
s min | 7.28 | 8.78 | 9.78 | 10.73 | 13.73 | 16.73 | 18.67 |
H max | 3 | 3.5 | 4 | 5 | 6.5 | 8 | 10 |
H min | 2.75 | 3.2 | 3.7 | 4.7 | 6.14 | 7.64 | 9.64 |
Secure Welding Hexagon Weld Nut, especially the stainless steel kinds or ones that are coated, don’t need much upkeep. Under normal conditions, you just check them now and then for any damage—like cracks or wearing down. If installed in a rust-prone environment, regular inspections are essential. If rust is detected on the coated nut, it should be promptly removed and the protective coating reapplied. If the nut is substantially damaged it should be replaced immediately. Regular inspection and effective maintenance can extend the service life of the nut.
A:Sure. For standard hex weld nuts, our minimum order is 1,000 pieces. This helps us keep prices reasonable without cutting corners on quality. If you need a custom design—like a special size or material—the MOQ might change depending on what it takes to make them. Need just a few samples to test? Get in touch—we’ll try to work something out for you.
