Reliable Hexagonal Nut

Introduction

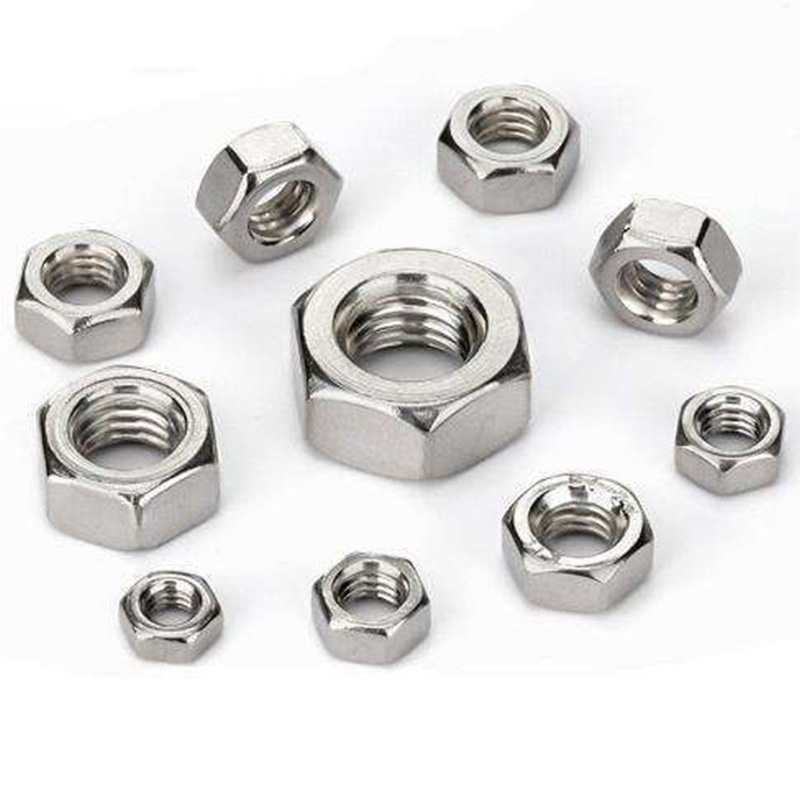

The small Reliable Hexagonal Nut with washer holds components in devices and enclosures in place. It helps with reliable grounding and keeps parts from shaking loose. It has a compact hexagonal shape, usually made from steel with conductive plating. We offer good prices for electronics OEMs—order over 100,000 units, and you get a 3% discount. They come in plated finishes like nickel or gold. We use express couriers for shipping to get them to you fast. The nuts are packed in anti-static, moisture-proof bags. We check the dimensions of every single one.

Product Details

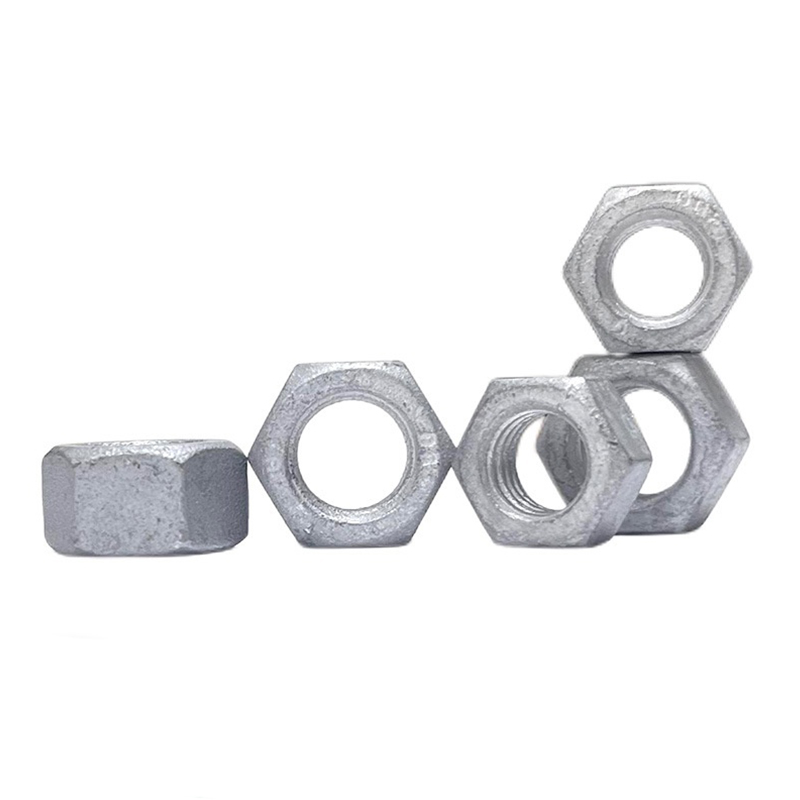

For structural steelwork and heavy equipment, the large Reliable Hexagonal Nut with washer makes sure bolted joints can handle dynamic loads. It has a strong hexagonal shape and a thick, built-in washer that keeps it from embedding and spreads out pressure. We offer good prices for large projects—order over 15,000 units, and you get a 10% discount. Hot-dip galvanized finish is standard. We arrange shipping by sea or rail because it’s affordable. The packaging is tough and waterproof. We check quality with load testing, and it meets ASTM standards.

Q&A Session

Can you give details on the different material and coating options for Reliable Hexagonal Nuts?

We supply Reliable Hexagonal Nuts in a range of materials—carbon steel (grades 4, 5, and 8), stainless steel (304 & 316), and brass. For rust protection, we have various coatings like zinc plating (blue, white, or yellow), hot-dip galvanizing, and dacromet. Each Reliable Hexagonal Nut is processed so the coating thickness and adhesion meet relevant standards. This makes them more durable and suitable for different environments, from construction to marine uses.

Product Parameter

d	p	m		s
		max	min	max	min
M2	0.4	1.7	1.6	4	3.8
M2.5	0.45	2	1.9	5	4.8
M2.6	0.45	2.25	2.15	5	4.8
M3	0.5	2.3	2.21	5.4	5.32
M3.5	0.7	2.7	2.5	5.98	5.78
M4	0.7	2.7	2.5	7	6.88
M5	0.8	3.2	3.0	7.98	7.78
M6	1	4.6	4.4	10	9.78
M8	1.25	6.0	5.8	13.8	13.43
M10	1.5	7.9	7.5	16.8	16.6
M12	1.75	8.0	7.8	18.9	18.6
M14	2	11.3	10.8	21.1	20.8
M16	2	12.3	12.1	23.22	23.07
M18	2.5	15.0	14.5	26.13	25.66
M20	2.5	15.8	15.3	29.63	29.16
M22	2.5	17.1	16.6	31.3	30.8
M24	3	18.0	17.6	34.1	33.7
M30	3.5	22.4	22.1	45.6	45.2
