High strength single chamfered square nuts are subject to strict quality inspections. This means doing thorough material checks to confirm they're certified, making sure sizes are correct, measuring the threads, and running the required mechanical tests,like checking hardness, proof load, and tensile strength,following the right standards (ASTM, ISO, DIN, SAE). They also keep track of each batch and provide detailed material test reports (MTRs) as a standard. That way, you know every nut will perform consistently and reliably, which is needed for important safety uses.
When buying high strength single chamfered square nuts, make sure to specify the exact material grade,like Grade 8 or Class 10.9,the surface treatment, such as HDG or zinc plated, the size standard (like ASME or DIN), and any needed certifications, such as MTRs.
Ensure they can be used with matching bolts and indicate the assembly method, such as square hole size. As a professional Chinese manufacturer, Xiaoguo® follows international quality standards and selects material suppliers that meet the requirements to ensure quality.

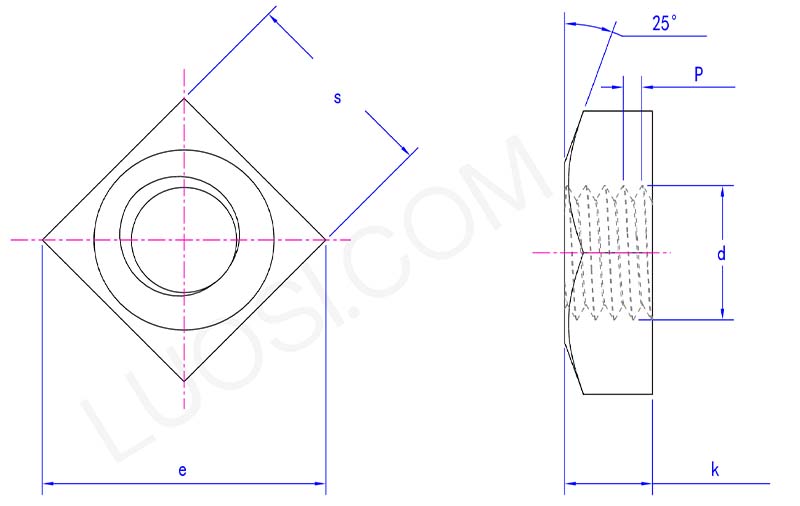

Mon
3/8
7/16
1/2
5/8
3/4
7/8
1
1-1/8
1-1/4
1-3/8
1-1/2
P
16
14
13
11
10
9
8
7
7
6
6
s max
0.625
0.750
0.813
1.000
1.125
1.313
1.500
1.688
1.875
2.063
2.250
s min
0.606
0.728
0.788
0.969
1.088
1.269
1.450
1.631
1.812
1.994
2.175
e max
0.884
1.061
1.149
1.414
1.591
1.856
2.121
2.386
2.652
2.917
3.182
e min
0.832
1.000
1.082
1.330
1.494
1.742
1.991
2.239
2.489
2.738
2.986
k max
0.346
0.394
0.458
0.569
0.680
0.792
0.903
1.030
1.126
1.237
1.348
k min
0.310
0.356
0.418
0.525
0.632
0.740
0.847
0.970
1.062
1.169
1.276
High strength single chamfered square nuts make putting things together a lot faster. Their square shape fits tight into square holes,which are common in structural steel or channels,or against flat surfaces, so they don’t spin when you’re tightening the bolt. That means you don’t need a second wrench to hold the nut, so installation goes quicker. It saves on labor too, especially in big projects where you need a lot of these high strength square nuts.
