Weld Square Nut

As a leading product manufacturer, Xiaoguo® has always been committed to provide premium Weld square nut with a pilot feature. The guide pin extends into the workpiece hole, effectively preventing welding slag from entering the threads. After welding, the thread gauge test is 100% qualified, eliminating the need for a secondary reaming process. Contact us immediately for a quote and experience the hassle-free welding without cleaning.

Send Inquiry

Product Description

Customization and Procurement Information

Xiaoguo® offers comprehensive customization and procurement services for Weld square nut, providing full-process support from standard products to non-standard components, helping customers obtain the most suitable welding nut solutions for their applications.

（1）Thread specification

Metric and imperial dimensions, coarse thread, fine thread, and non-standard pitch can all be customized.

（2）Dimensions of the shape

The width of the opposite side of the Weld square nut, the total height, and the thickness of the flange

（3）Material selection

Low carbon steel (grade 4.8/6.8), medium carbon steel/alloy steel (grade 8.8/10.9), stainless steel 304/316

（4）Surface treatment

Electro-galvanizing, hot-dip galvanizing, Dacromet coating, zinc-nickel alloy, blackening, stainless steel original color

（5）Structural type

No retaining pin type / With retaining pin type

Weld Square Nut

Sample Policy

To assist customers in verifying the dimensions, welding performance and process compatibility of Weld square nut in actual production, we offer flexible and professional sample services. Whether it is a standard product or a non-standard customized item, we can respond promptly and ensure that you receive sufficient verification before making bulk purchases.

（1）Standard sample: Free of charge (5-10 pieces per specification), international shipping cost borne by the customer

（2）Customized sample: A small sample fee and mold fee will be charged (which can be deducted from the subsequent bulk order payment)

（3）Sample accompanying documents: Dimension inspection report, material certificate, recommended welding parameter table

（4）Sample delivery time: Standard sample 3-5 working days; Customized 5-7 working days

Weld Square Nut

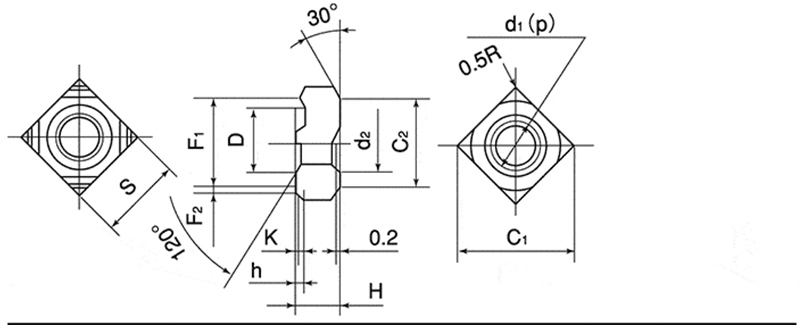

d	p	S		H		h		K	D
NominalDiameter	Pitch	BasicDimension	Tolerance	BasicDimension	Tolerance	BasicDimension	Tolerance	BasicDimenson(Aproximate）	BasicDimension	Tolerance
M4	0.7	9.0	0一0.2	3.2	±0.15	0.8	0一0.2	0.2	7.0	一0.1一0.3
M5	0.8	10.0		4.0		0.8		0.2	7.0
M6	1.0	11.0		5.0		0.8		0.2	9.0
M8	1.25	13.0		6.0	±0.2	0.8		0.2	11.0

FAQ

（1）Will the surface treatment be damaged after the Weld square nut is welded? How to repair it?

A: During the welding process, the coating in the protruding area will be melted, and the surrounding coating may change color due to high temperature. For outdoor applications, it is recommended to apply a cold galvanizing spray or zinc-rich primer to the local weld area after welding. If a Dacromet coating or stainless steel material is used, no additional coating is required after welding.

（2）Can the sample be welded onto plates of different thicknesses for testing?

Yes. Our recommended welding parameter table covers various plate thicknesses such as 0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm.

（3）How to select the appropriate performance level?

For general sheet metal connections and non-load-bearing areas: Grade 4.8 or Grade 6.8 (low carbon steel).

Withstanding significant tension or vibration (such as in car chassis and seats): 8.8 grade or 10.9 grade (high-strength steel).

Corrosion environment (outdoor, marine, food): Stainless steel A2-70 or A4-70.
