Hexagon Extra Flat Nuts With Fine Pitch Thread

Hexagon extra flat nuts with fine pitch thread is a kind of slender and low nut. "Extra flat" means that they are thinner than ordinary nuts, and the fine pitch thread (with more threads per inch) can provide precise adjustment and better anti-vibration loosening performance.

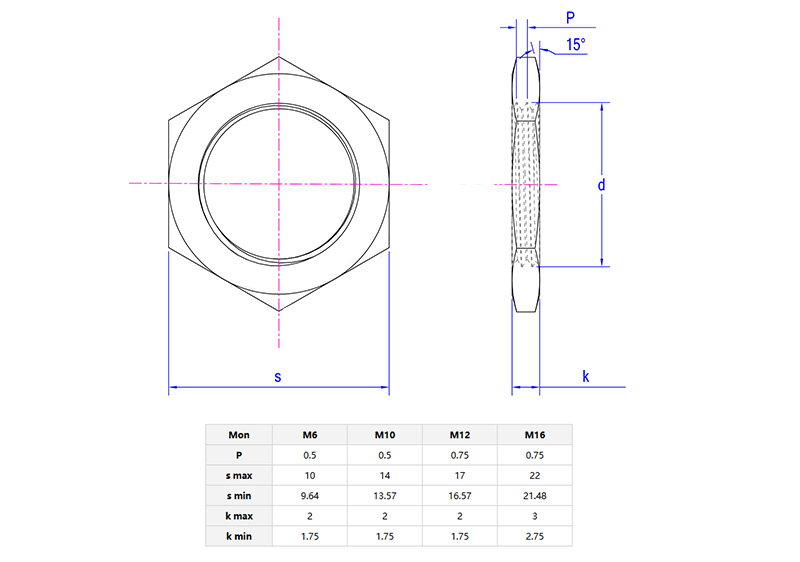

Product details and parameters

In the engine, the hexagon extra flat nuts with fine pitch thread can be used to fix components with limited space, such as some compact engines. In the conveying system, they can fix the components of the belt tensioning mechanism. The flat shape helps maintain the smooth overall appearance of the machinery. In precision machinery such as lathes or milling machines, they can ensure that parts are firmly and precisely fixed.

Hexagon extra flat nuts with fine pitch thread is not suitable for overloading. They always follow the torque specification, and the force required for fine-threaded threads is relatively small. Before installation, please check the threads for burrs under a magnifying glass. In high-vibration devices, nylon insert nuts should be used in combination. Store them in labeled pallets. Small-sized nuts are prone to confusion.

Hexagon extra flat nuts with fine pitch thread is used for mechanical, electronic or automotive components with strict requirements for space and precision.

Selection considerations

Specifications: Different sites and actual use requirements require different thread specifications, sizes, and thicknesses. Select specific specifications of hexagon extra flat nuts with fine pitch thread according to the matching screws and bolts and the installation location.

Material: Select the appropriate material according to the use environment, hardness, and other requirements.

Quality: Check whether the hexagon extra flat nuts with fine pitch thread received have quality problems. Although Xiaoguo® manufacturer will conduct quality inspections before shipment, there may be losses during transportation, so inspections are required, such as appearance, thread shape, surface uniformity, and rust.

Standards: Xiaoguo® is a professional fastener manufacturer that meets international quality standards.
