Heavy Hex Structural Nut

When you are ready to purchase Heavy hex structural nut from Xiaoguo®, you will get a fastener suitable for heavy duty. In buildings such as Bridges or large warehouses, they can ensure the safety of beams and columns.

Model:ASME/ANSI B18.2.6-2006

Send Inquiry

Product Description

Heavy hex structural nut is used in heavy industries such as Bridges, towers or industrial frames. These nuts adopt thicker and wider shapes and can withstand extreme loads and vibrations. You just need to tighten the nuts correctly. These nuts require uniform pressure to be safely locked.

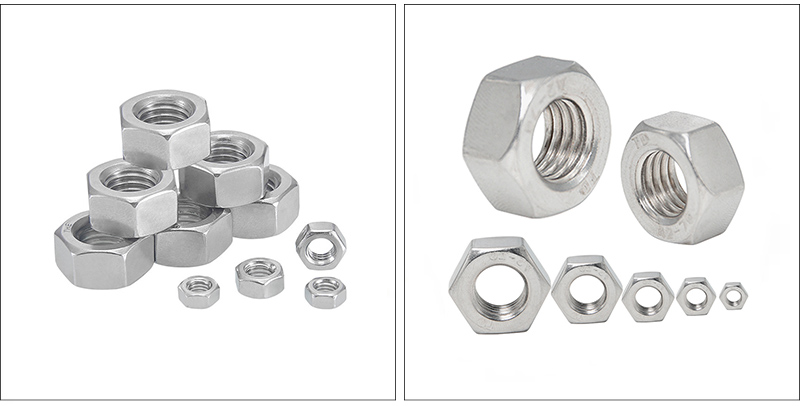

Heavy Hex Structural Nut

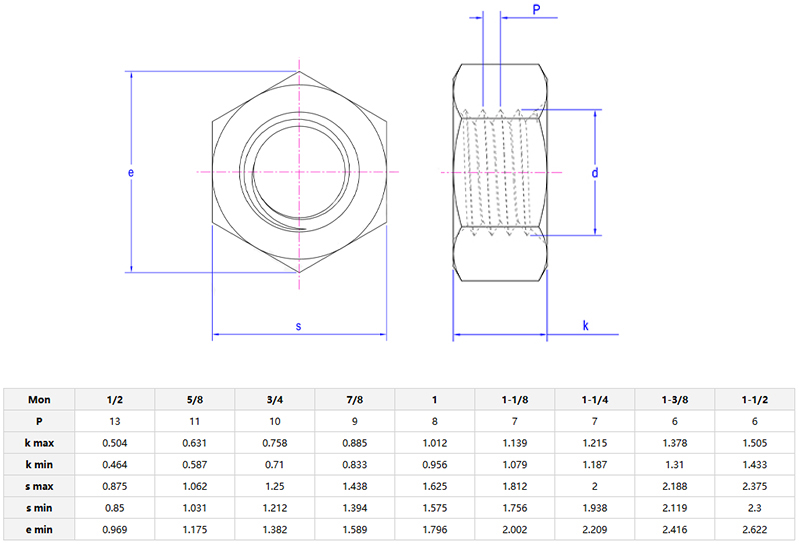

Product details and parameters

The heavy hex structural nut requires appropriate washers. The outer diameter of the washer should match the width of the opposite side of the nut. Please use the torque value specified in the project file. Is lubrication needed? Carry out only under the specified circumstances; Some coatings can act as lubricants. If the nut is reused (not recommended in critical applications), please check whether the thread is deformed.

To select the appropriate heavy hex structural nut, it is necessary to understand the bolt size first. These nuts follow strict size rules. For example, a bolt with a diameter of 1 inch is paired with a flat nut with a diameter of approximately 1.5 inches. Pitch is also important: Use coarse threads for general purposes, and use fine threads if vibration is a concern. We have stock sizes ranging from ½ inches to 4 inches in diameter. Professional tip: Be sure to order nuts and bolts from the same batch to avoid fit issues. Although mixing and matching can save money, the cost of rework is very high.

Heavy Hex Structural Nut

Our market distribution

Market	Revenue(Previous Year)	Total Revenue (%)
North America	Confidential	15
South America	Confidential10	10
Eastern Europe	Confidential	12
Southeast Asia	Confidential	10
Mid East	Confidential	7
Eastern Asia	Confidential	17
Western Europe	Confidential	15
South Asia	Confidential	6
Domestic Market	Confidential	8

Heavy Hex vs Standard Nuts

Why spend more money on heavy hex structural nut? Ordinary nuts are not suitable for structural engineering. Heavy hex structural nut has a larger load-bearing surface, thereby reducing the risk of material embedding under load. It is also thicker. If you measure the height, you will find that they are thicker than ordinary nuts. This volume means better thread meshing and shear resistance.
