Extended Equal Length Double End Stud

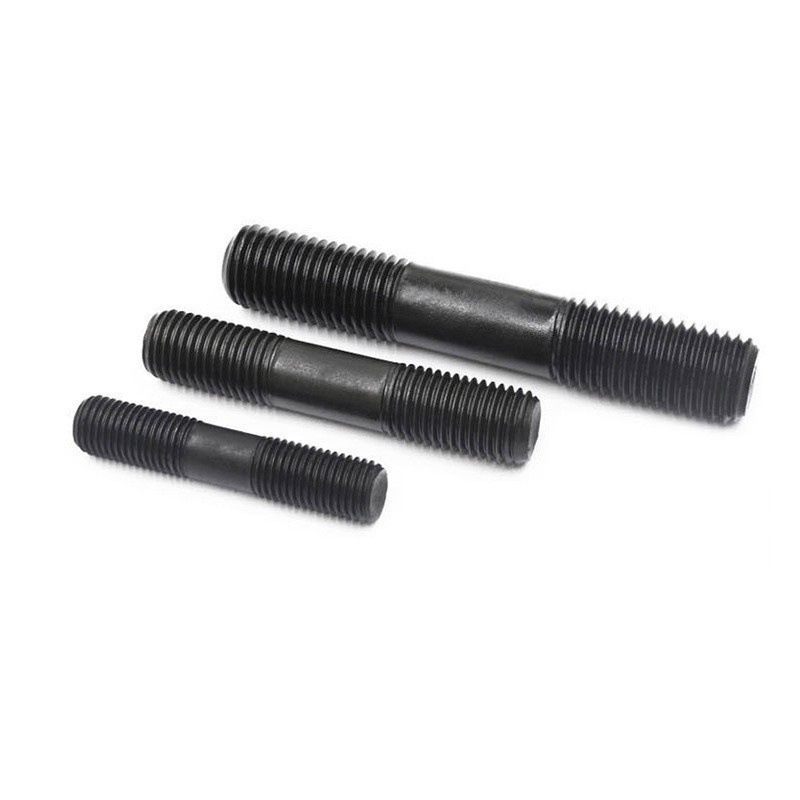

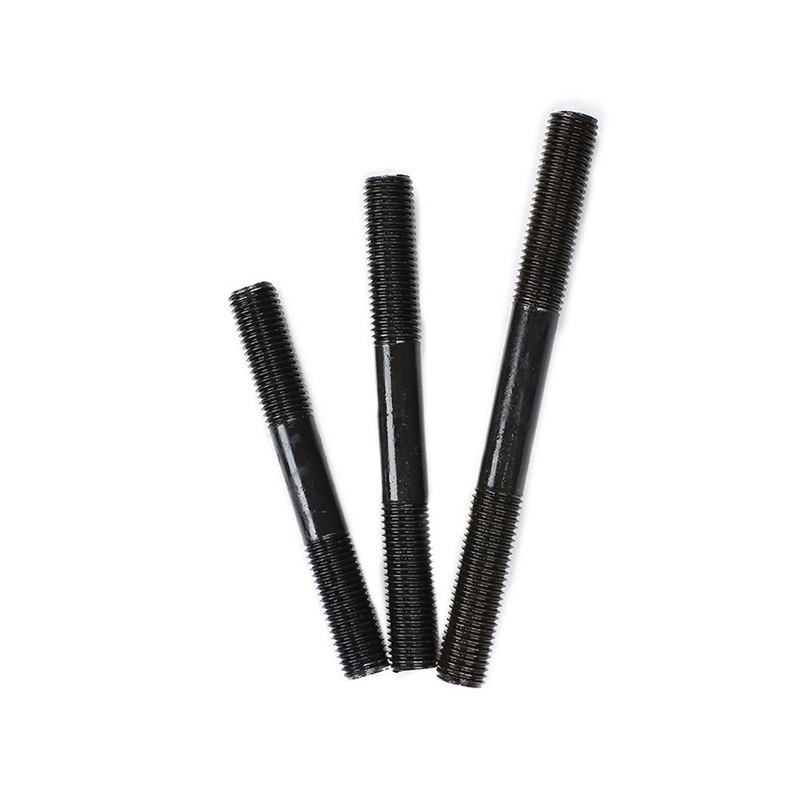

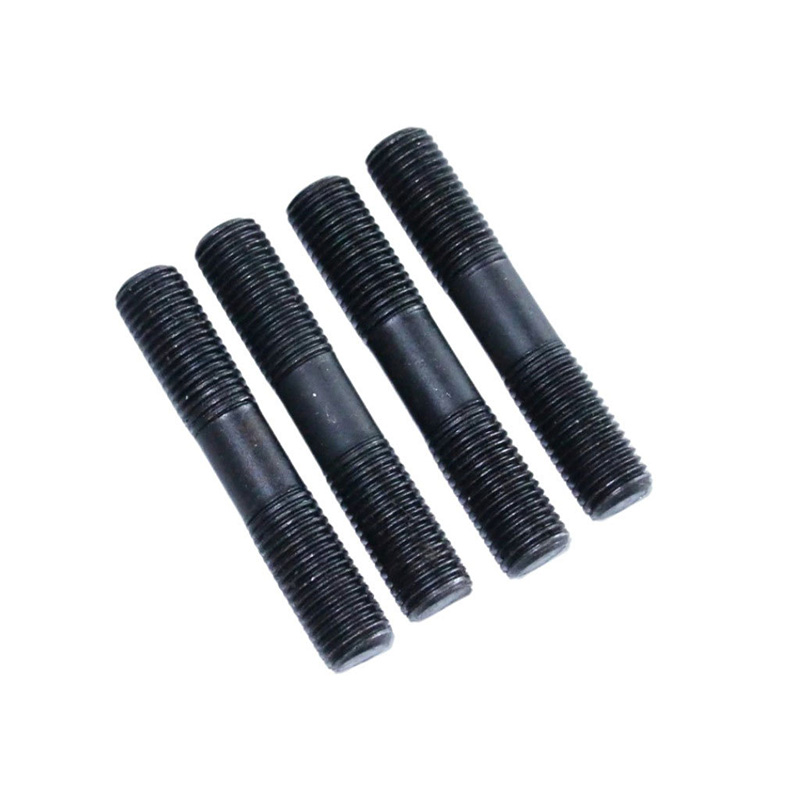

The extended equal length double end stud as a whole is a slender metal rod with equal-length threads at both ends, and these threads run through both ends. The middle part is usually a smooth and plain rod. The length can be customized according to actual needs.

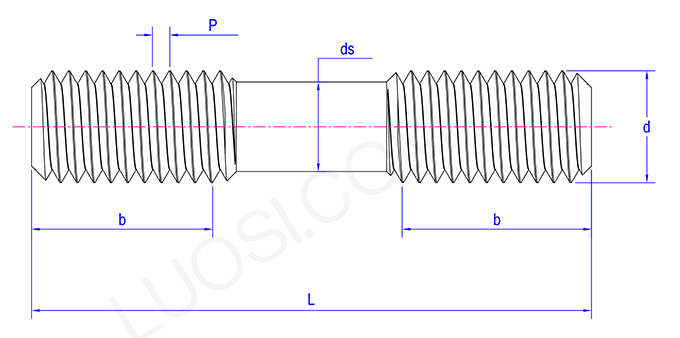

Product parameters

Product parameters

Mon	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42
P	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5
ds	14.70	16.38	18.38	20.38	22.05	25.05	27.73	30.73	33.40	36.40	39.08

​
Features

The extended equal length double end stud column simplifies the design of thermal expansion joints. The additional length enables the nut to move slightly when heated or cooled in the boiler or exhaust system. Equal-length threads ensure uniform stress distribution and prevent warping or leakage in high-temperature systems.

Extended equal length stud can compensate for wider gaps. Extra thread lengths are required between thick flanges or laminated plates. The extended design can accommodate large gaskets or washers that standard studs cannot withstand. Both ends must be fully tightened to achieve a firm connection in the pipe or heavy frame.

Extended equal-length double-end stud can handle extremely large apertures. Slide it into the slotted bracket and then fix both sides with nuts. Long threads allow you to firmly clamp uneven components without getting stuck. For seismic supports, they can absorb displacement. Its length allows for controllable bending during earthquakes, while the ends of the double nuts can maintain tension.

The connection using extended equal length double end studs is particularly stable. Because nuts can be screwed onto both ends of it or it can be directly screwed into threaded holes, a strong tensile force is formed between the components that need to be fixed, and it can stably withstand considerable pressure and vibration. It has particularly strong adaptability. Due to the equal length of the threads at both ends, it can easily handle the connection of two components of the same thickness or those of different thicknesses.
