Equal Length Double End Stud

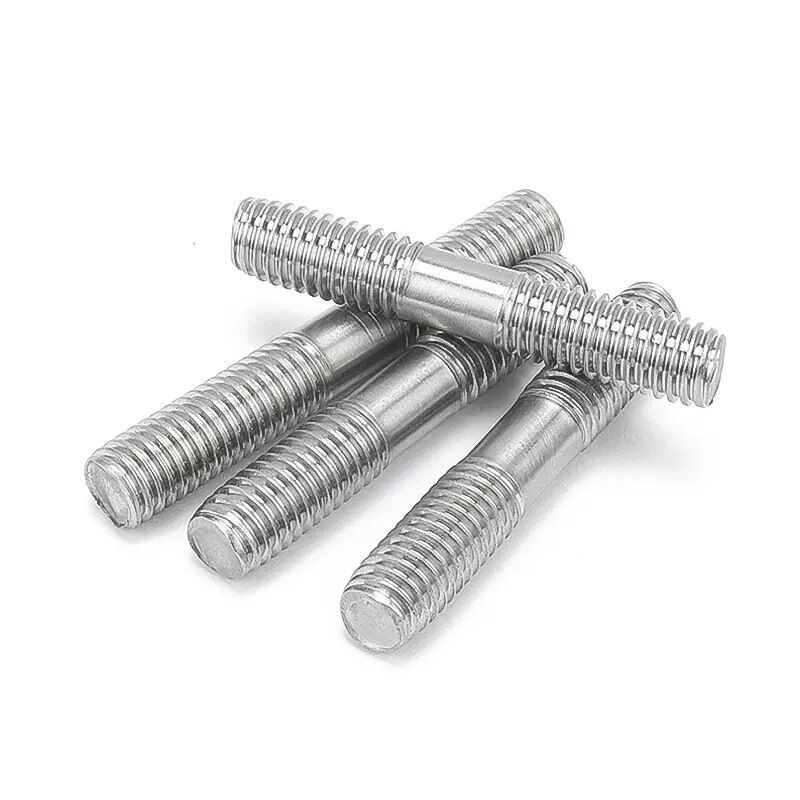

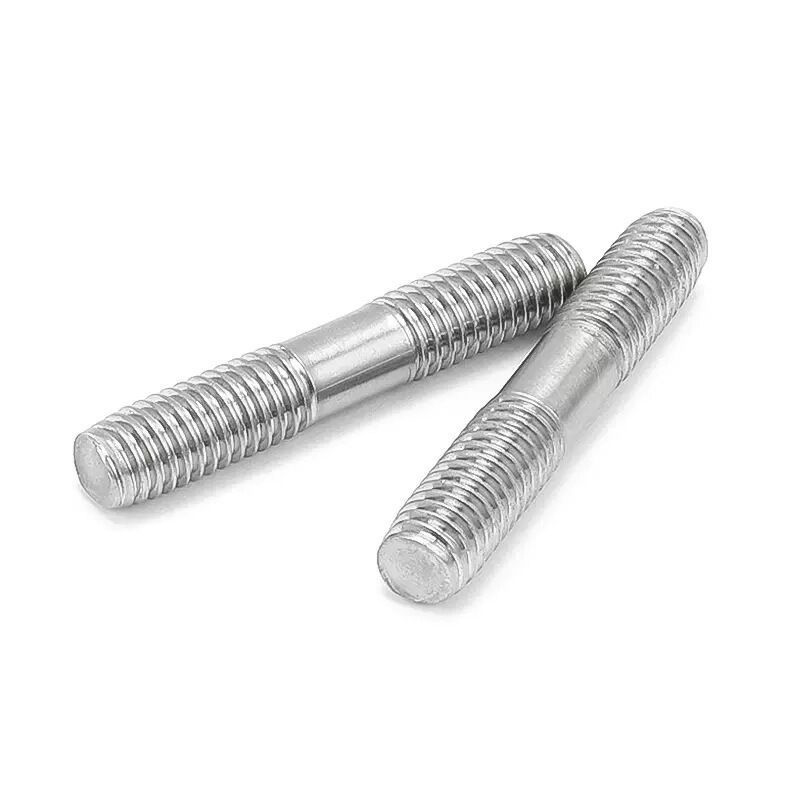

An equal length double end stud is a metal rod with threads at both ends, and the lengths of the threads at both ends are the same. The middle part of this kind of stud is sometimes a smooth rod, with the same diameter as the threaded part.

Product parameters

Product Features

The equal-length double end stud is characterized by its simple structure, which is just a threaded metal rod without a complex design. Therefore, its manufacturing cost is relatively low and it is also easy to understand when in use. It comes in a variety of specifications. Whether it is for connecting small electronic device components or large mechanical structural parts, you can find equal-length double-ended studs with suitable diameters and lengths.

There are also various types of these double end studs, including coarse and fine threads, which can adapt to different threaded holes and have very wide application scenarios. When assembling a car engine, it is needed to connect the engine block with some accessories, such as the oil filter seat and the engine bracket.

Equal length double end stud is used to fix the base plate of heavy machinery. When fixing industrial equipment such as compressors with bolts, please use them. Screw one end into the threaded hole on the concrete floor. Slide the machine's base plate onto the studs and then tighten the nuts at both ends. Equal-length threads mean uniform clamping force. The cast iron base no longer shows uneven stress cracks. Always use leveling washers before applying final torque.

Equal length double end studs can be threaded into both ends of a component. One end is screwed into the fixed component, while the other end is secured to another component with a nut. This is ideal when adjustable connectors are required, such as pipe hangers or mechanical supports, where alignment can vary.
