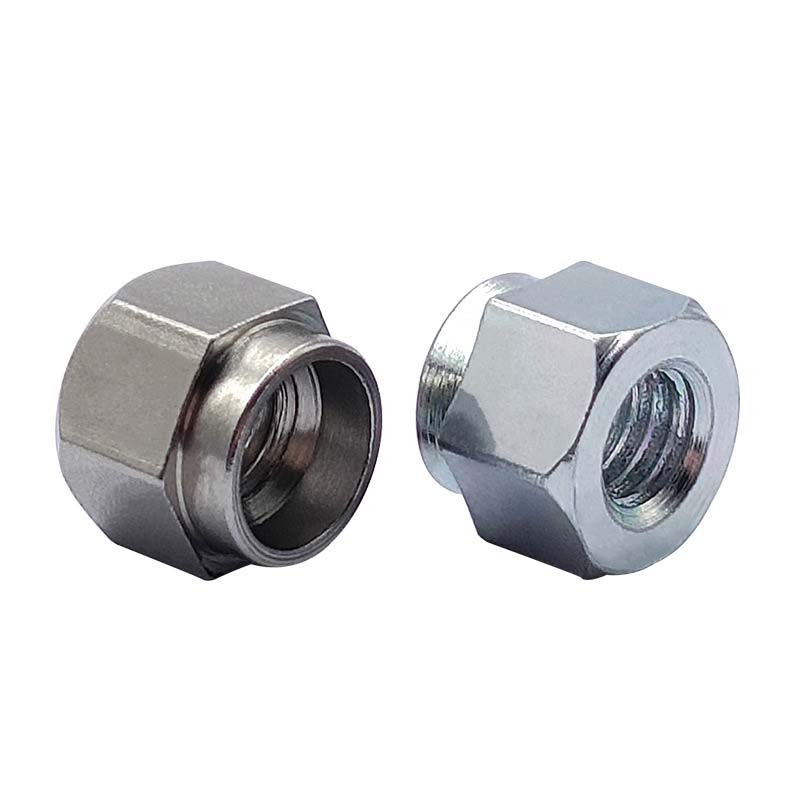

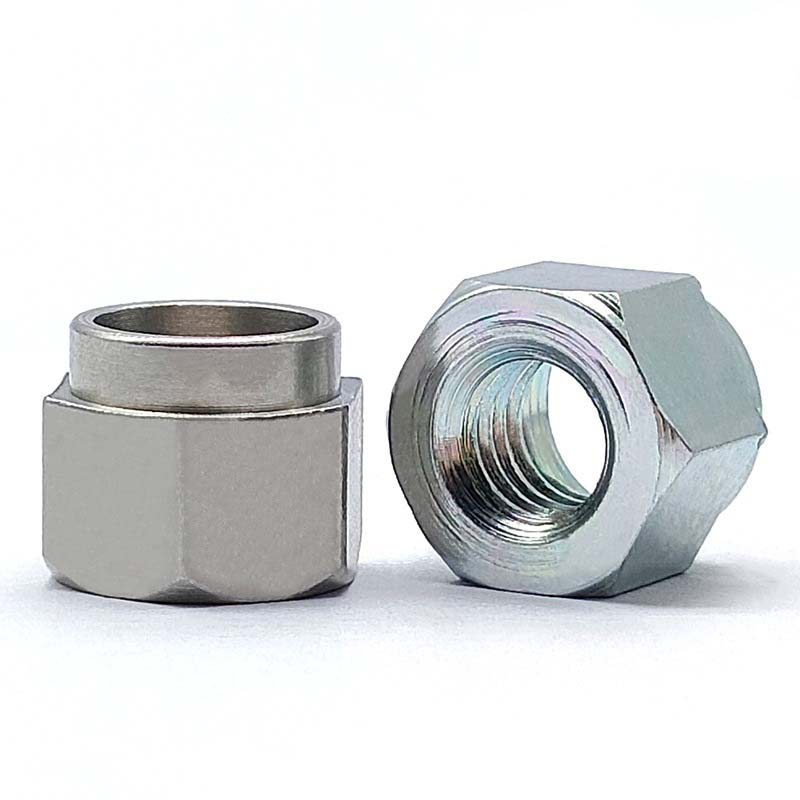

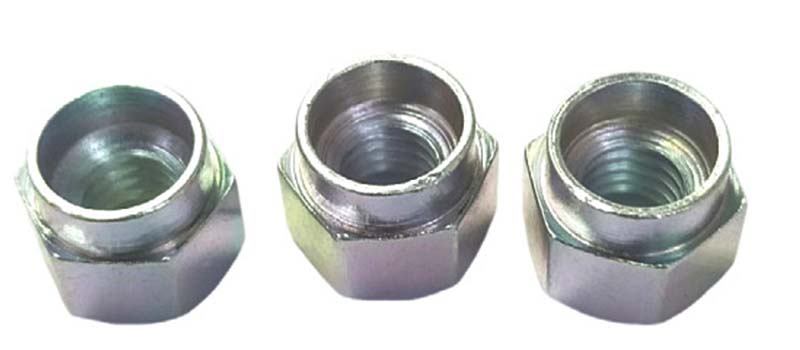

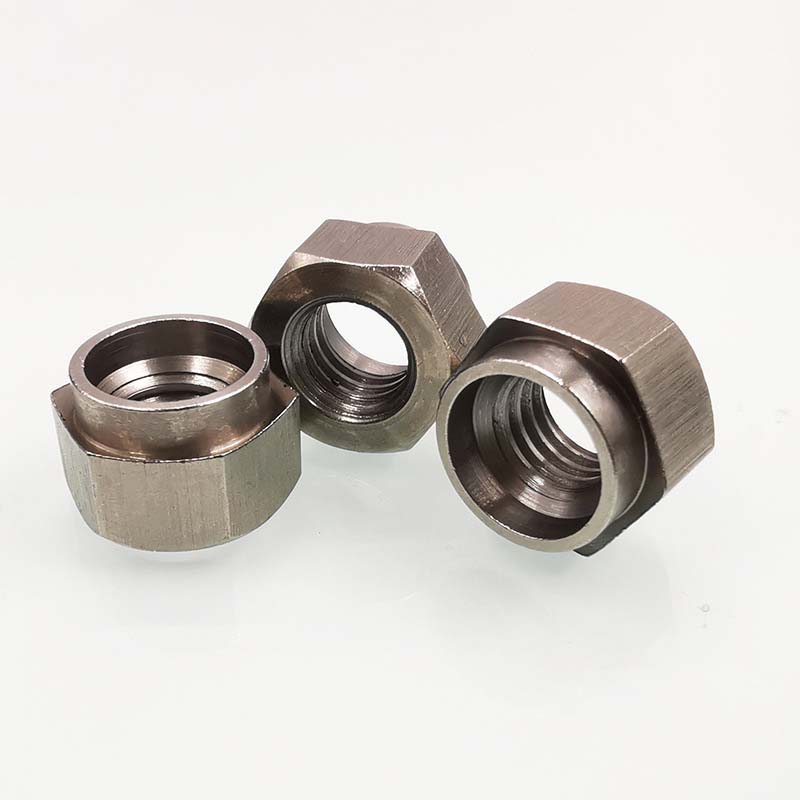

Double Ferrule Nuts

Applications for double ferrule nuts include automotive, aerospace, and construction projects where durability and longevity are critical.Xiaoguo® factory has sufficient inventory and can accept large-volume fastener orders.

Model:QIB/IND NZS

Send Inquiry

Product Description

Grade A4 (316) double ferrule nuts are suitable for use in environments containing salt water, de-icing salt, industrial chemicals or high humidity.The chromium and nickel in it,and the molybdenum in A4 specifically,form a protective layer on the surface. The cool thing is, if it gets scratched, that layer can sort of “repair” itself, which coated carbon steel fasteners can’t do.

That built-in protection is why this nut is a go-to for projects that need to last. It holds up in corrosive conditions without needing regular maintenance. So whether it’s near the ocean, in a factory with chemicals, or somewhere damp, picking this stainless steel nut means you won’t have to worry about rust or degradation over time.

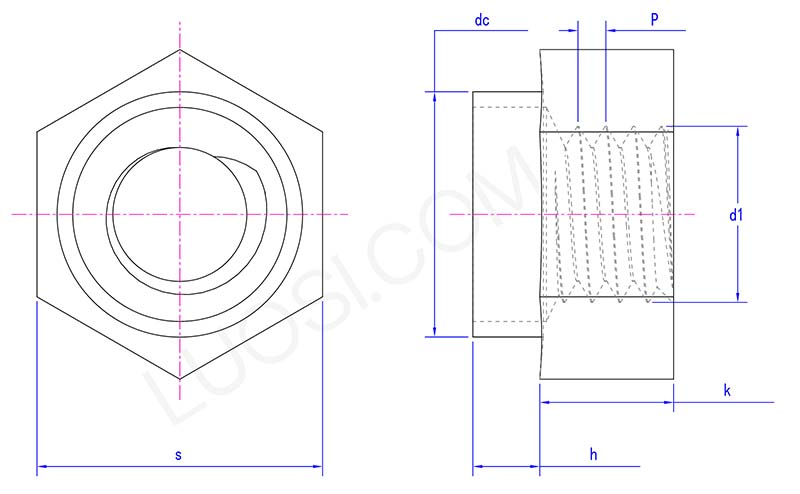

Double Ferrule Nuts parameter

Mon	M5-2	M5-3	M5-4	M6-3	M6-4	M6-5	M6-6	M8-3	M8-4	M8-5	M8-6
P	0.8	0.8	0.8	1	1	1	1	1.25	1.25	1.25	1.25
d1	M5	M5	M5	M6	M6	M6	M6	M8	M8	M8	M8
dc max	7.95	7.95	7.95	8.98	8.98	8.98	8.98	10.98	10.98	10.98	10.98
h max	2.1	3.1	4.1	3.1	4.1	5.1	6.1	3.1	4.1	5.1	6.1
h min	1.9	2.9	3.9	2.9	3.9	4.9	5.9	2.9	3.9	4.9	5.9
k max	5.25	5.25	5.25	6.25	6.25	6.25	6.25	6.25	6.25	6.25	6.25
k min	4.75	4.75	4.75	5.75	5.75	5.75	5.75	5.75	5.75	5.75	5.75
s max	9.25	9.25	9.25	10.25	10.25	10.25	10.25	12.95	12.95	12.95	12.95
s min	8.75	8.75	8.75	9.75	9.75	9.75	9.75	12.45	12.45	12.45	12.45

Maintenance

Double ferrule nuts are inherently rust-resistant. The bolts used with them must also be rust-resistant, such as stainless steel. Otherwise, abnormal corrosion may occur in the contact areas.

In really harsh spots, just give it a quick peek now and then. Check for gunk buildup or damage that could scratch up its coating.

Do not use strong detergents containing bleach or chlorine. It does not require frequent inspection, saving maintenance time. Regular inspections and timely replacement of any problems are sufficient. It can be used for a long time.

Packaging and certification for international shipping

We can supply these double ferrule nuts in bulk boxes, vacuum-sealed bags with desiccant packs, or custom reel packaging for machine assembly lines. If you need certifications, just let us know,we can provide Material Test Reports (MTRs) to show they’re made from SS304 or 316 steel, RoHS compliance docs, or salt spray test reports (like 500+ hours) to meet import and quality standards worldwide.
