Continuous Thread Studs Fine Teeth

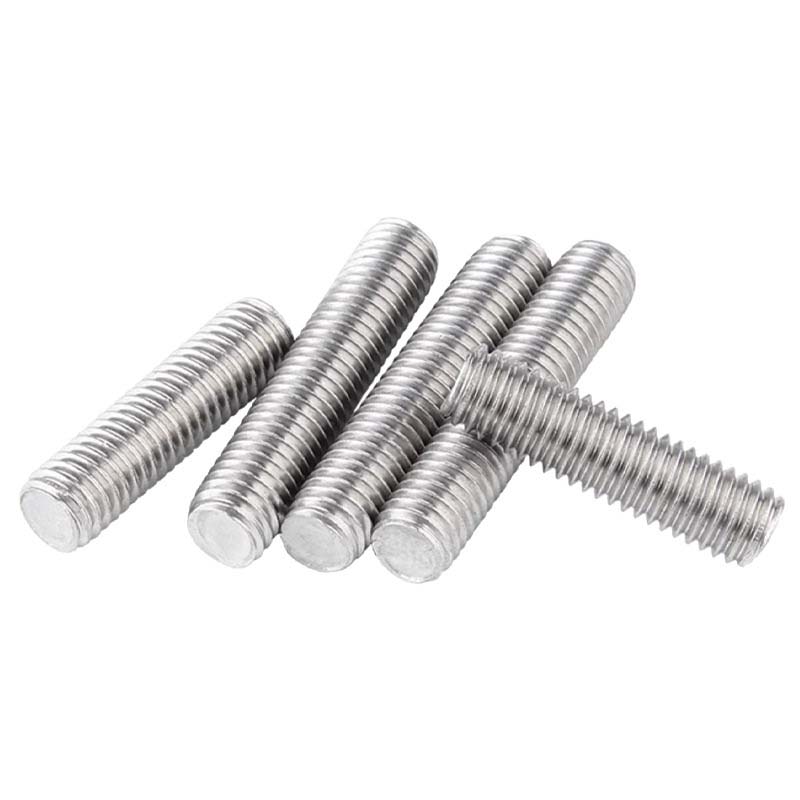

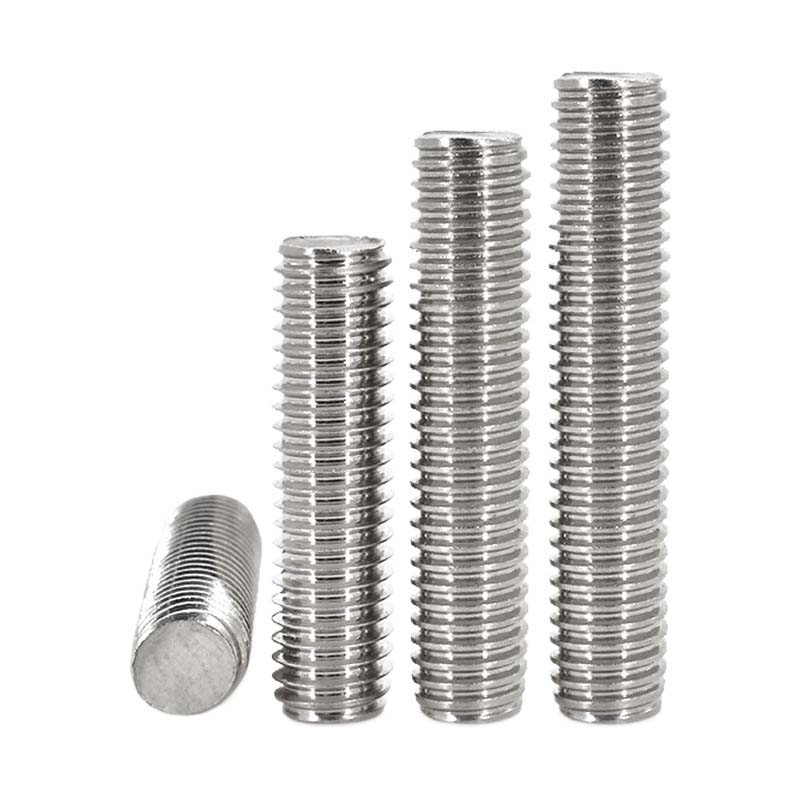

Continuous thread studs fine teeth They are very suitable for projects that require fine-tuning, such as fixed electronic devices or precision mechanical components. The studs produced by Xiaoguo® factory feature full-length threads with fine tooth profiles, ensuring a tight fit.

Model:ASME/ANSI B18.31.2-1-2008

Send Inquiry

Product Description

Continuous thread studs fine teeth is a metal rod with fine thread. The common materials are carbon steel and stainless steel. Facilities like those by the seaside and equipment in chemical plants are made of stainless steel, which can ensure that they do not rust over a long period of use.

Product parameters

Mon	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4	7/8	1	1-1/8
P	28	24	24	20	20	18	18	16	14	12	12
c max	0.071	0.083	0.083	0.1	0.1	0.111	0.111	0.125	0.143	0.167	0.167

Continuous thread studs fine teeth parameter

Product features

Continuous thread studs fine teeth can meet your requirements for leveling the base. If you need to fine-tune to calibrate the CNC machine tool, screw them into the leveling bracket under the base. The fine thread enables you to rotate the nut at a very small speed, achieving precise laser leveling. They can maintain their position more stably than coarse threads under severe vibration.

The continuous thread studs are used to build the framework of optical devices. When assembling a telescope or a laser holder, its fine teeth can be fine-tuned. Use them together with the lock nuts at the pivot points. The fine thread allows for an adjustment of 1/100 millimeter to precisely adjust the Angle of the mirror/lens. These threads do not slip under load like coarse threads, thus maintaining calibration during operation.

Continuous thread studs fine teeth is used for the calibration of satellite antenna mounts. Where the elevation Angle of satellite antennas needs to be fine-tuned, their fine tooth design makes precise aiming a breeze. Use them as adjustable pillars on the bracket. Just slightly rotate the nut to change the Angle by 0.1°. Fine threads can withstand wind loads without deformation and maintain signal stability during storms.

The most distinctive feature of this continuous thread stud is the design of fine teeth. The pitch of the fine thread is small, and the gap between each turn of the thread is narrower. This enables more precise control of the tightness when tightening the nut. Moreover, due to the large number of threaded teeth and the large contact area with the nut, it can disperse the force. When subjected to smaller tensile and compressive forces, the connection is more reliable and can effectively prevent leakage. It can also play a role in some situations that require sealing.

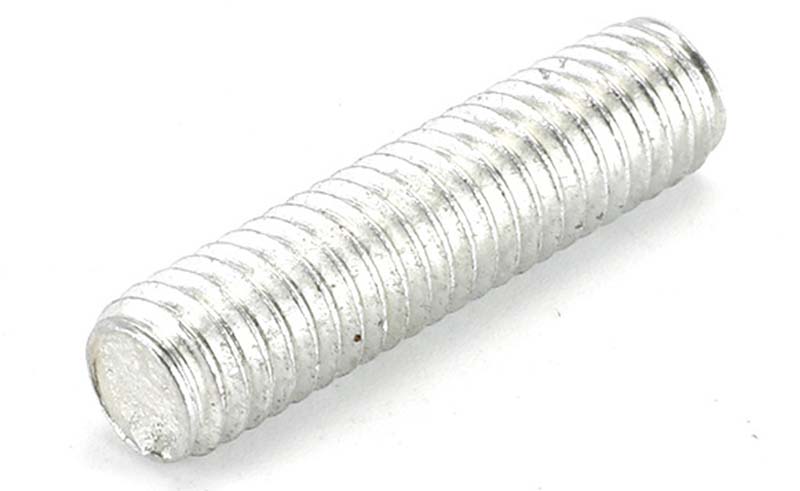

Continuous thread studs fine teeth
