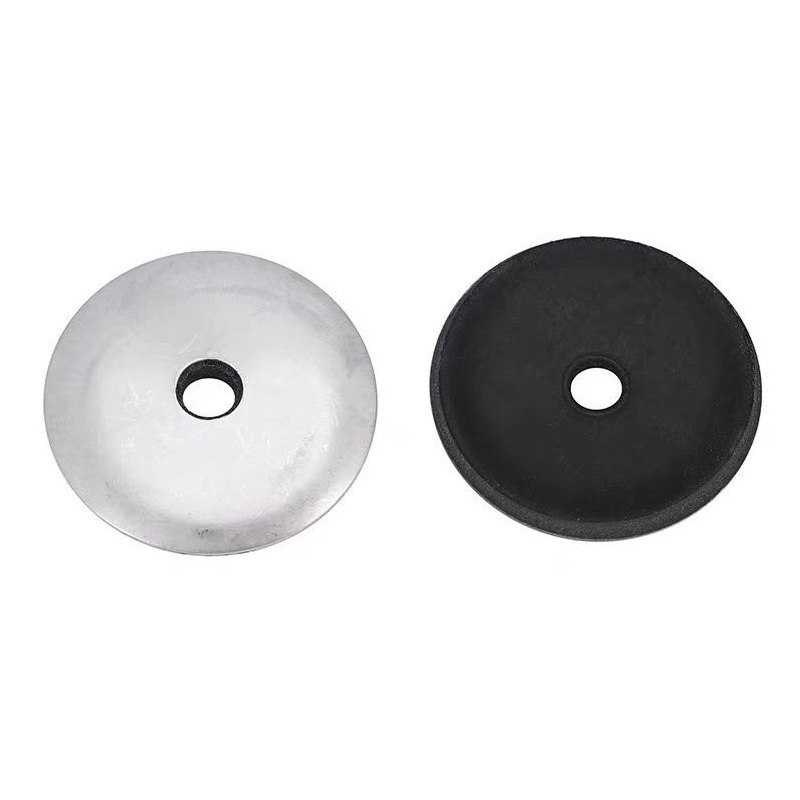

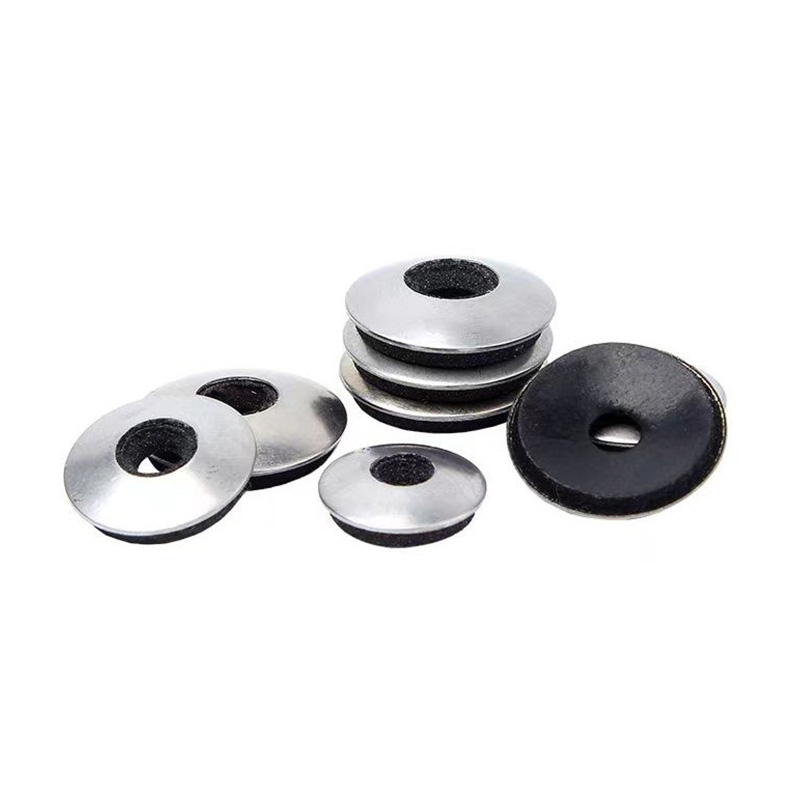

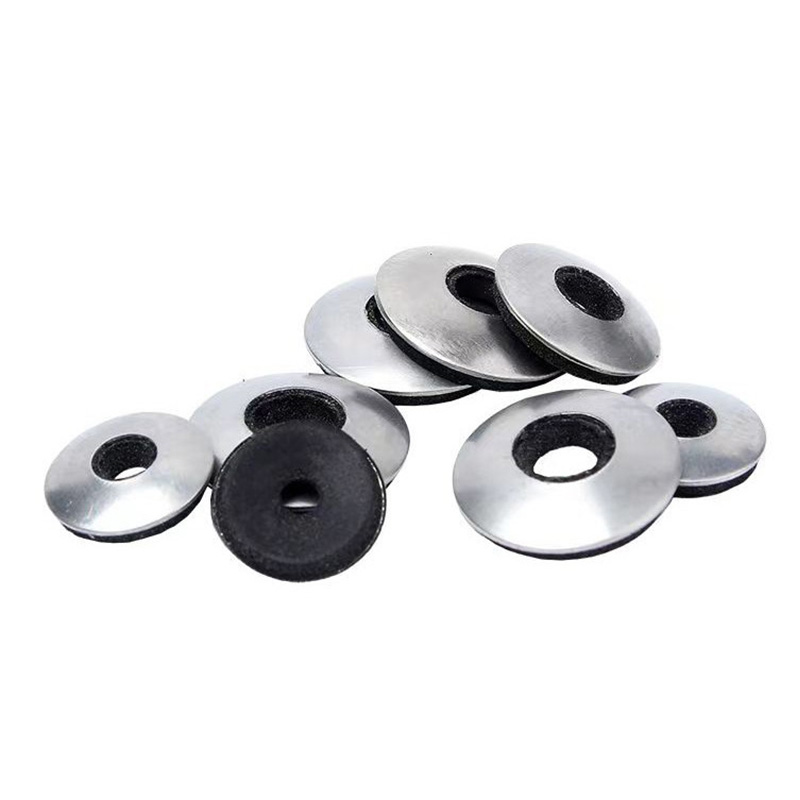

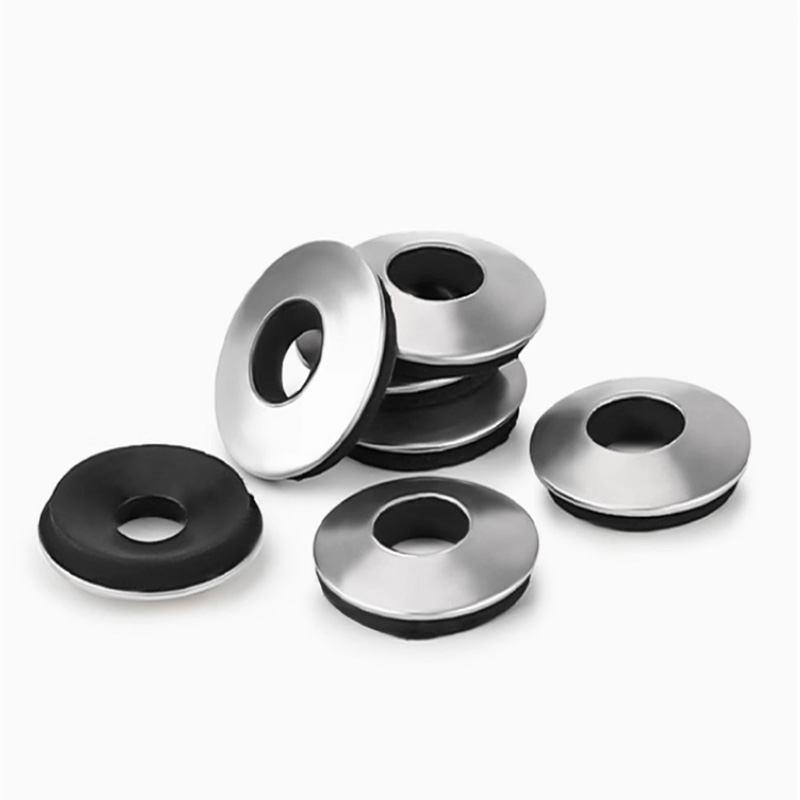

Bonded Neoprene Sealing Washer

The Bonded Neoprene Sealing Washer produced by the Xiaoguo® factory are formed through an integrated composite process. They do not come off or separate when made of metal and rubber, and their structure is stable and durable.

Send Inquiry

Product Description

The Bonded Neoprene Sealing Washer is a type of sealing fastening component and accessory that is permanently bonded together as a single unit by the high-temperature vulcanization process between Neoprene and metal flat gaskets, and cannot be disassembled. The rubber part provides elastic sealing, while the metal part restricts compression and enhances structural strength. This is an integrated sealing gasket specially designed for preventing leakage and loosening at bolt, threaded, and pipeline connection points.

< style="text-align:center;">

Advantages

The inside part of the Bonded Neoprene Sealing Washer that does the sealing is made of neoprene rubber, and the outside or back part is metal. This two‑in‑one design gives it some advantages that regular washers or separate rubber seals just don't have:

(1) It seals well

When you tighten Bonded Neoprene Sealing Washer down, the neoprene layer stops water, oil, air, and refrigerants from leaking out.

(2) It won't get crushed too much

The metal outer ring limits how much the rubber can be squeezed. That keeps the rubber from getting flattened too far and losing its stretch, so the seal lasts a long time.

(3) It handles vibration

The rubber's flexibility soaks up vibration from the equipment. Even on rough or uneven surfaces, it stays tight and doesn't come loose easily.

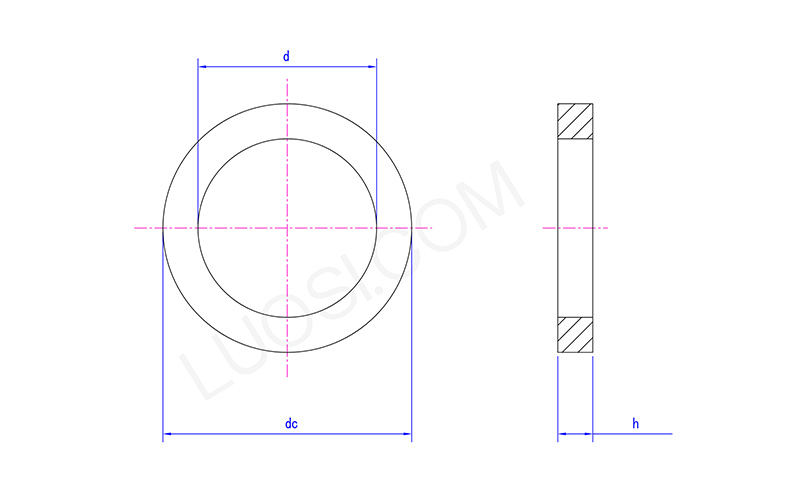

Bonded Neoprene Sealing Washer

Mon	φ27	φ30	φ33	φ36	φ39	φ42	φ45	φ48	φ52	φ56	φ60
d max	27.365	30.395	33.395	36.395	39.395	42.395	45.395	48.395	52.53	56.53	60.53
d min	27.035	30.005	33.005	36.005	39.005	42.005	45.005	48.005	52.07	56.07	60.07
dc max	36.395	39.395	42.395	45.395	48.395	52.53	56.53	60.53	64.23	68.23	72.23
dc min	36.005	39.005	42.005	45.005	48.005	52.07	56.07	60.07	63.77	67.77	71.77
h max	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
h min	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8

（4）Adapt to rough surfaces

Butyl rubber can automatically fill in the tiny depressions or scratches on the surfaces of the connected parts, thereby reducing the requirements for processing accuracy.

（5）Resistant to high temperatures

The Bonded Neoprene Sealing Washer can operate stably within the temperature range of -30°C to +120°C and has certain aging resistance and oil resistance properties.

（6）Easy installation

There is no need to separately install metal washers and rubber sealing rings. One part can fulfill both functions, reducing assembly time.

（7）Various application scenarios

Widely used in bathroom fixtures, automotive fuel and water pipe connections, air conditioning refrigeration pipelines, outdoor electrical enclosures, hydraulic and pneumatic connectors, etc.
