Weather Resistant Hexagon Head Bolt

Weather Resistant Hexagon Head Bolt whether you need standard or custom fasteners, Xiaoguo® can help. Most are made of steel, but some are stainless steel or coated to resist rust, with materials sourced from trusted suppliers, so they work well outdoors or in wet places.

Model:ISO 4015-1979

Send Inquiry

Product Description

We have very strict packaging for Weather Resistant Hexagon Head Bolt to prevent them from being damaged during transportation. Smaller orders are packed in sturdy cardboard boxes, filled with foam to protect the bolts from being scratched or colliding with each other. For larger orders, we use wooden boxes with plastic liners to avoid the bolts from bending. All boxes are sealed with strong tape to prevent accidental opening during transportation. We also test the packages by shaking and dropping them to ensure that all items can be delivered intact. Thus, when you receive the box, the bolts will not have bent threads or damaged heads - as soon as you open the box, the bolts can be put into use immediately.

Product Details

During the transportation process, we will ensure that the Weather Resistant Hexagon Head Bolt remain dry. Each bolt is placed in a separate plastic bag, and we will also put in some small moisture-absorbing packs to keep the box dry. If it rains frequently in your area, we will also cover the entire batch of goods with a layer of waterproof padding. The bolts that have been galvanized or treated with galvanization already have excellent rust prevention properties, but we will still take these additional measures to protect the ordinary steel bolts. Therefore, even if the box gets wet during transportation, your bolts should remain intact, dry, and free from rust.

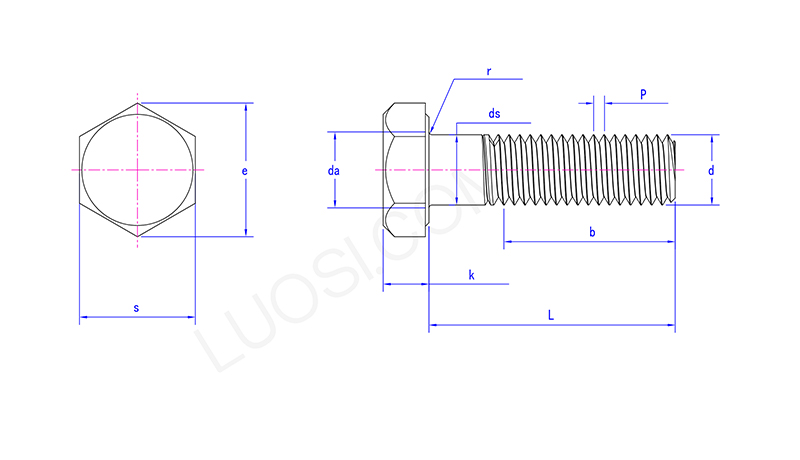

Mon	M12	M16	M20	M22	M24	M27	M30	M36
P	1.75	2	2.5	2.5	3	3	3.5	4
b max	23	28	33	34	37	39	42	50
b min	21	26	31	32	34	37	40	48
da max	15.2	19.2	24	26	28	32	35	41
ds max	12.7	16.7	20.84	22.84	24.84	27.84	30.84	37
ds min	11.3	15.3	19.16	21.16	23.16	26.16	29.16	35
e min	23.91	29.56	35.03	39.55	45.2	50.85	55.37	66.44
k max	8.45	10.75	13.9	14.9	15.9	17.9	20.05	24.05
k min	7.55	9.25	12.1	13.1	14.1	16.1	17.95	21.95
r min	1.2	1.2	1.5	1.5	2	2	2	2
s max	22	27	32	36	41	46	50	60
s min	21.16	26.16	31	35	40	45	49	58.8

Hardness and tensile strength

Our 8.8 grade Weather Resistant Hexagon Head Bolt comply with the requirements of ISO 898-1 standard: their minimum tensile strength is 800 megapascals, and the proof load is 580 megapascals. Their hardness is usually between 22 and 32 Rockwell hardness.

This combination of strength and hardness enables 8.8 hexagonal head bolts to be widely used - suitable for general engineering and automotive fields. It performs quite well in terms of performance and value, which is why it becomes the preferred grade.

Weather Resistant Hexagon Head Bolt
