We start making hex head bolts by checking the raw materials. We examine every batch of steel bars to make sure they meet our quality standards, and we reject any batches that fail the initial check. We then cut the materials to fixed lengths according to the product size. The cutting is accurate to cut down on waste and keep sizes consistent.
Next is the forming stage. We heat the cut blanks to the right temperature and put them into a forming machine to make the hex head and the body. We use fixed settings in this step to make sure every piece has the same structure. After forming, we roll the threads onto the blanks to make standard threads that fit matching nuts easily.
Heat treatment is an important step after that. We heat and cool the parts under controlled conditions to adjust their hardness and toughness so they meet performance requirements. Then we add surface treatments like plating or passivation to help prevent rust during long-term use.
We do simple post-processing and sorting on each piece to remove defective parts. Before packing, we carry out random checks on size, thread fit, and appearance. Only parts that pass all checks are packed and stored for shipment.
This whole process follows fixed working rules, with attention to steady quality. We monitor every step to lower the number of defects and make sure the finished bolts work for daily use.

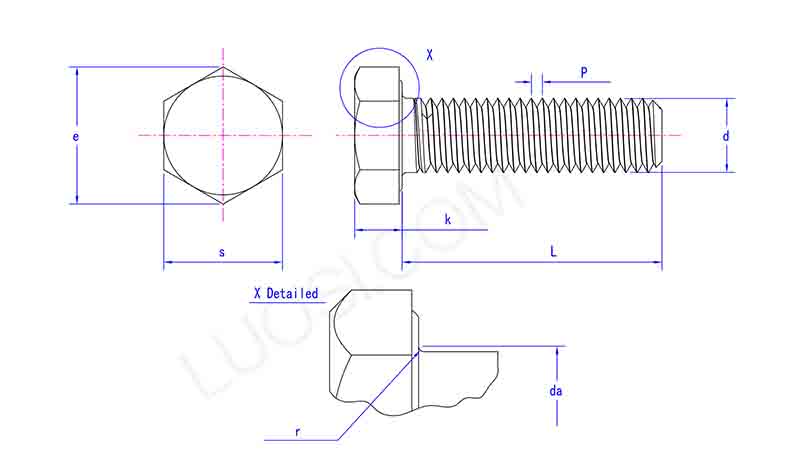

| Mon | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
| P | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 |
| da max | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 |
| e min | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 |
| k max | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 |
| k min | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 |
| r min | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 |
| s max | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 |
| s min | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40 | 45 | 49 | 53.8 | 58.8 |
Our high-strength hex head bolts are designed to bring real convenience to buyers, like making daily purchasing easier and improving usage efficiency. We carry out strict batch checks before production to reduce defect rates. This helps customers avoid extra costs from returns or rework, which many other suppliers do not do. We also keep a steady supply of raw materials, so we do not have frequent delays or price increases that are common in the industry.
Our production lines use standard equipment with fixed operating settings. This makes sure each batch has consistent size, thread fit, and performance. Customers do not have to deal with uneven quality between different orders. We also accept flexible order quantities, supporting both small trial orders and large bulk shipments. This works for both small buyers and large contractors.
We provide clear and detailed product documents with every order, including material reports and inspection records. Many competitors only provide basic documents, but we make it easy for customers to check quality and meet project requirements. We also reply to inquiries and after-sales problems faster, offering timely support instead of long waits.
Our prices are reasonable, and we do not reduce material quality to cut costs. We have no hidden fees for packaging or standard shipping, and we optimize logistics routes to lower total delivery costs. This combination of stable quality, fair prices, and reliable service makes us different from other suppliers.
This product meets daily industrial and construction needs, with practical benefits that solve the common problems buyers have with other suppliers.
Do you provide Hex Head Bolt quality inspection certificates for each batch?
Yes, we provide complete inspection reports and quality certificates for each shipment, including dimensional checks, material verification and surface treatment tests. All certificates are in standard format for your customs clearance and quality filing. If you need additional third-party inspection, we can coordinate and cooperate, with related costs communicated in advance.
