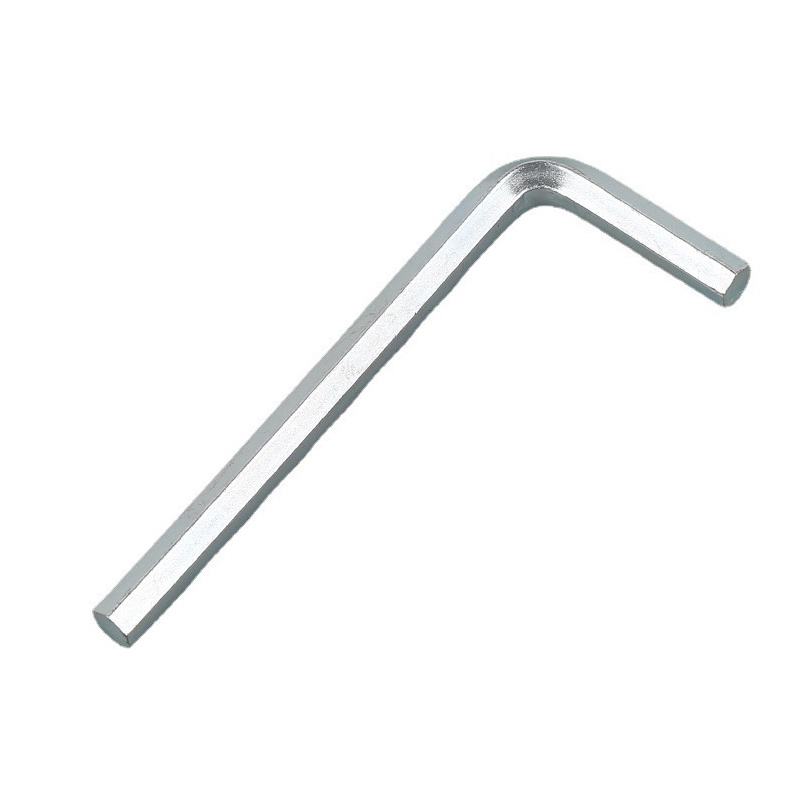

This standard User-Friendly Hexagonal wrench is in the shape of an L - it is simple in design but works very well. It provides two points of force application and can be selected based on the required torque. The long side can be used to apply greater torque to the fastener, while the short side is suitable for quick tightening or operation in a confined space. High-quality wrenches have their ends precisely cut, with sharp and smooth edges - so they can fit perfectly into the screw head without slipping. Many newer wrenches also have comfortable plastic or rubber handles on the long arm. This makes them easier to grip and control during long use.
Many sets of User Friendly Hexagonal Wrench have color-coded handles or markings, which correspond to specific sizes - this makes it much easier for people to use. With these visual cues, you can immediately pick out the appropriate wrench from the set. This can effectively shorten the time you spend searching for tools and further help improve overall work efficiency. In busy places, such as professional repair shops or assembly lines, this is very useful. Usually, this color system is accompanied by labeled metric or imperial sizes. In this way, you are less likely to make mistakes and using the wrong-sized wrench will not damage the fasteners.

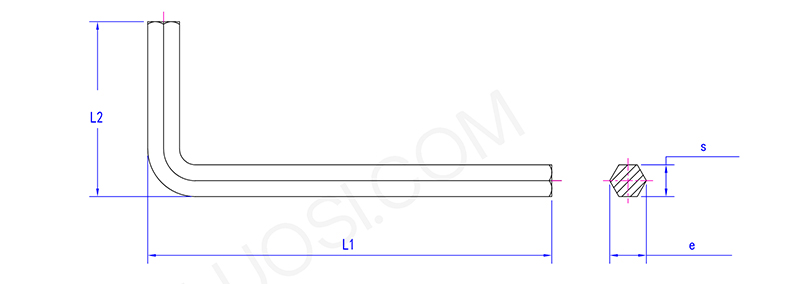

Mon | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
s max | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
s min | 5.95 | 6.94 | 7.94 | 8.94 | 9.94 | 10.89 | 11.89 | 12.89 | 13.89 | 14.89 | 15.89 |
e max | 6.81 | 7.94 | 9.09 | 10.23 | 11.37 | 12.51 | 13.65 | 14.79 | 15.93 | 17.07 | 18.21 |
e min | 6.71 | 7.85 | 8.97 | 10.1 | 11.23 | 12.31 | 13.44 | 14.56 | 15.7 | 16.83 | 17.97 |
L1 max | 96 | 102 | 108 | 114 | 122 | 129 | 137 | 145 | 154 | 161 | 168 |
L1 min | 92 | 96 | 102 | 108 | 116 | 123 | 131 | 138 | 147 | 154 | 161 |
L2 max | 38 | 41 | 44 | 47 | 50 | 53 | 57 | 63 | 70 | 73 | 76 |
L2 min | 36 | 39 | 42 | 45 | 48 | 51 | 55 | 60 | 67 | 70 | 73 |
The standard User Friendly Hexagonal Wrench has a straight, hexagonal end that needs to be inserted directly into the bolt - it is very suitable for use in situations where the space is clear and direct. While the ball-end User-Friendly Hexagonal wrench has a rounded end that allows you to rotate the bolt at approximately 30 degrees. This makes it very suitable for use in narrow spaces that cannot be directly accessed, such as behind electrical appliances or inside electronic devices.
Remember: The strength of the ball-end wrench is not as strong as that of the straight-handle wrench. If you use too much force, the spherical piece may not only slip off, but even break if you use more force. For most daily tasks, the standard User-Friendly Hexagonal wrench is sufficient, but if you often repair cars or have hard-to-reach bolts in machines, then having a ball-end wrench will be very useful.
